Factory Customized electrical wire harness design
Professional Electrical Wiring Harness Design & Manufacturing Solutions
As a trusted electrical wiring harness Company and China Factory Electrical Cables, we specialize in end-to-end wire harness design and production services. Our team delivers precision electrical wire harness design solutions for automotive, industrial, and energy applications, ensuring optimal performance, safety, and reliability.
We engineer robust electrical wiring harness systems with high-quality materials, advanced shielding, and strict compliance to international standards. Our in-house capabilities include prototyping, testing, and volume production—enabling seamless customization and fast turnaround for global clients.
From concept to completion, we provide:
Expert electrical wire harness design tailored to your specifications
Durable harnesses for demanding environments
Cost-effective manufacturing backed by rigorous QC
Elevate your project with our integrated design and manufacturing support—request a free consultation today!
- KenHan
- Xiamen City, Fujian Province, China
- 3 ~ 4 weeks
- Information
- Video
Professional Electrical Wiring Harness Design & Manufacturing Solutions
As a trusted electrical wiring harness Company and China Factory Electrical Cables, we specialize in end-to-end wire harness design and production services. Our team delivers precision electrical wire harness design solutions for automotive, industrial, and energy applications, ensuring optimal performance, safety, and reliability.
We engineer robust electrical wiring harness systems with high-quality materials, advanced shielding, and strict compliance to international standards. Our in-house capabilities include prototyping, testing, and volume production—enabling seamless customization and fast turnaround for global clients.
From concept to completion, we provide:
Expert electrical wire harness design tailored to your specifications
Durable harnesses for demanding environments
Cost-effective manufacturing backed by rigorous QC
Elevate your project with our integrated design and manufacturing support—request a free consultation today!
Key Features & Benefits:
High-Conductivity Conductors: Utilizing 99.99% oxygen-free copper for high purity, low resistance, anti-aging properties, and extended service life. This ensures minimal energy loss, reduced heat generation, and superior current load capacity.
Durable Insulation & Sheathing: Made from environmental protection high-strength PVC or neoprene, offering excellent abrasion resistance, tensile strength, corrosion resistance, waterproofing, flame retardancy, oil resistance, and weather ability. Ideal for both indoor and outdoor use, even in harsh or moving environments.
Stringent Quality Control: Guarantees uniform thickness of insulation and sheath with very low eccentricity. Each harness undergoes high-voltage testing to ensure no breakdowns, providing ultimate safety and reliability.
Available Configurations: Choose from sheath colors including all black, white inner with orange outer, white inner with black outer, or white inner with blue outer.
Certifications & Testing: Our products comply with CCC, CE, ISO9001:2008, and ROHS standards. They have passed third-party tests for high-temperature resistance (105°C), low-temperature resistance (-40°C), and flame retardancy.
Common Specifications: Available in cross-sections from 10mm² to 120mm² (10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm) to meet diverse power requirements.
Applications: Perfect for use as welding cable, torch wire, welding machine wire, battery cables, power leads for cutting tools, and grounding applications.
Request a free quote for your custom wiring harness needs and experience the difference in quality and performance!
Specification
| Wire Type | VDE Cable,Dran Chain Cable, UL Wire,Medical Cable,ect. |
| Wire Size | 2AWG-32AWG,0.01mm2-50mm’ are available. |
| Wire Cores | 1 Core~50 cores are available. |
| Conductor | Bare Copper, Tinned copper, Silver Plated, Gold plated wire. |
| Rate Temperature | 80'C,105'C,125°C,180'C,220'C,300'C(176°F-572°F). |
| Protection | Waterproof, Low Smoke Halogen-Free, Anti-UV cable, Acid and alkali-resistant cable are available. |
| Certification | UL, VDE, CE IS0 or Customize Special Cables. |
| Raw materials | All parts and processing is compliant with ROHS,CCC. |
| Application | Electronics, intelligent robots, lighting, new energy, intelligent appliances. |
| Testing | 100% electrical performance tested before delivery. |
Customizing the wiring harness only requires four steps!
1:Please provide your design drawings, specifications, or samples.
2:We will review the drawings and provide you with the most competitive quote.
3:Upon your confirmation of the drawings and price, we can proceed with mass production or provide you with a sample first to ensure quality.
4:Finally, we will carefully package and ship your order promptly via the fastest available method.

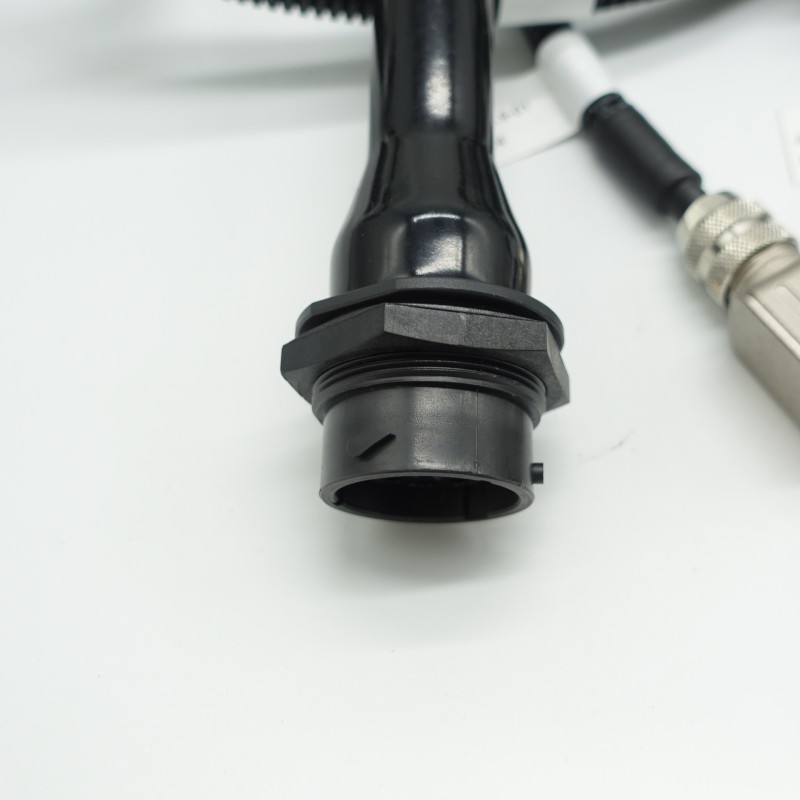

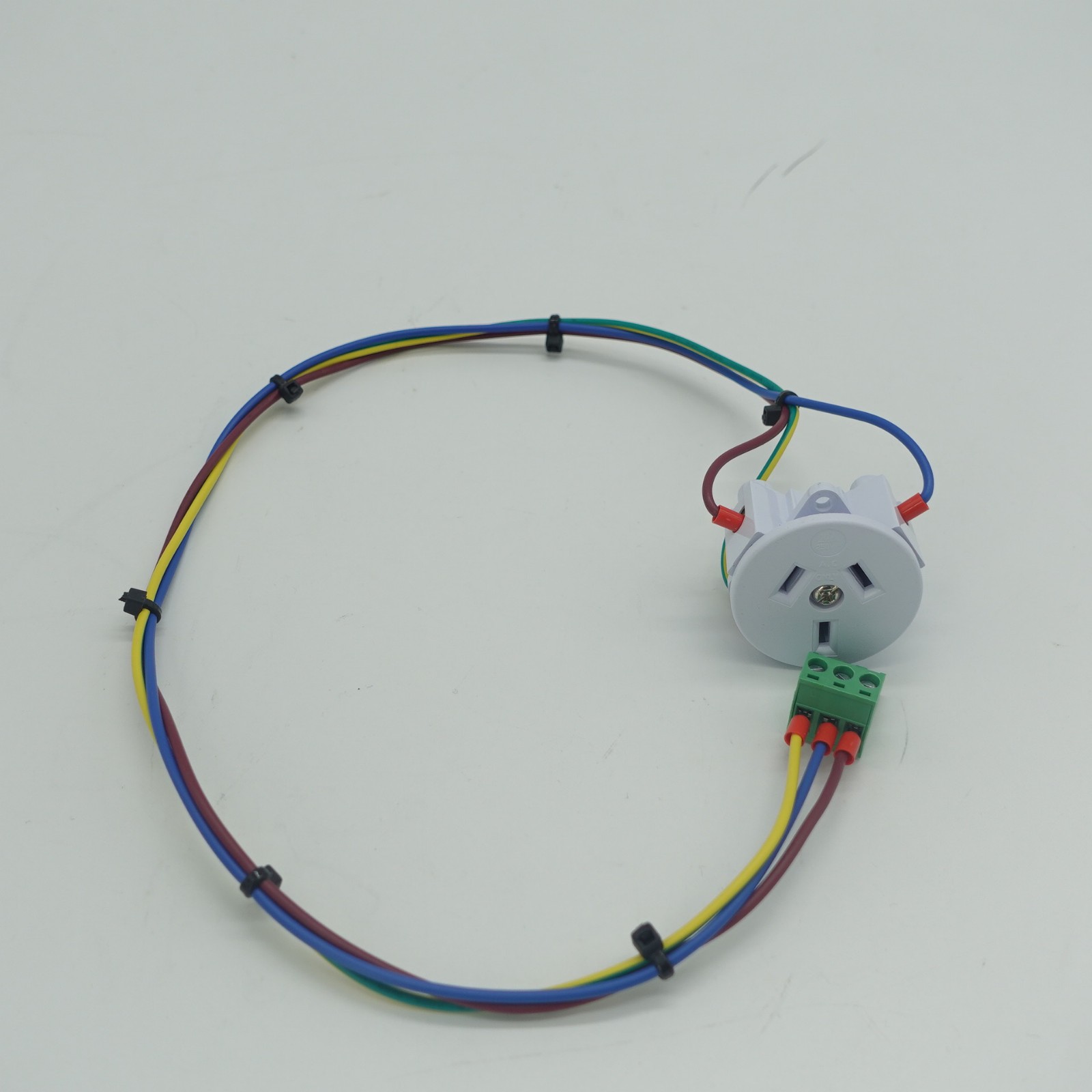

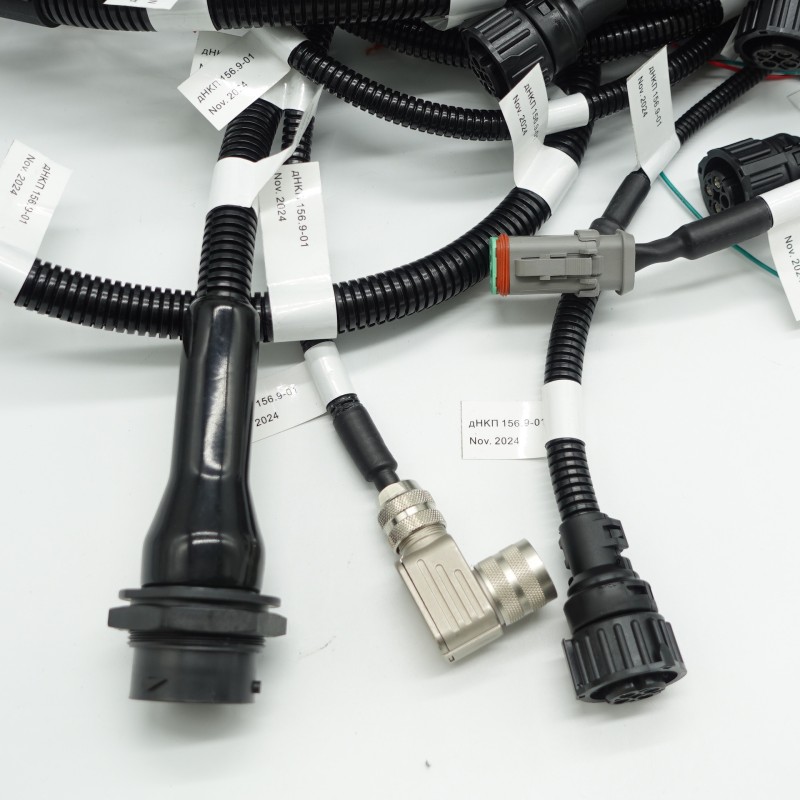

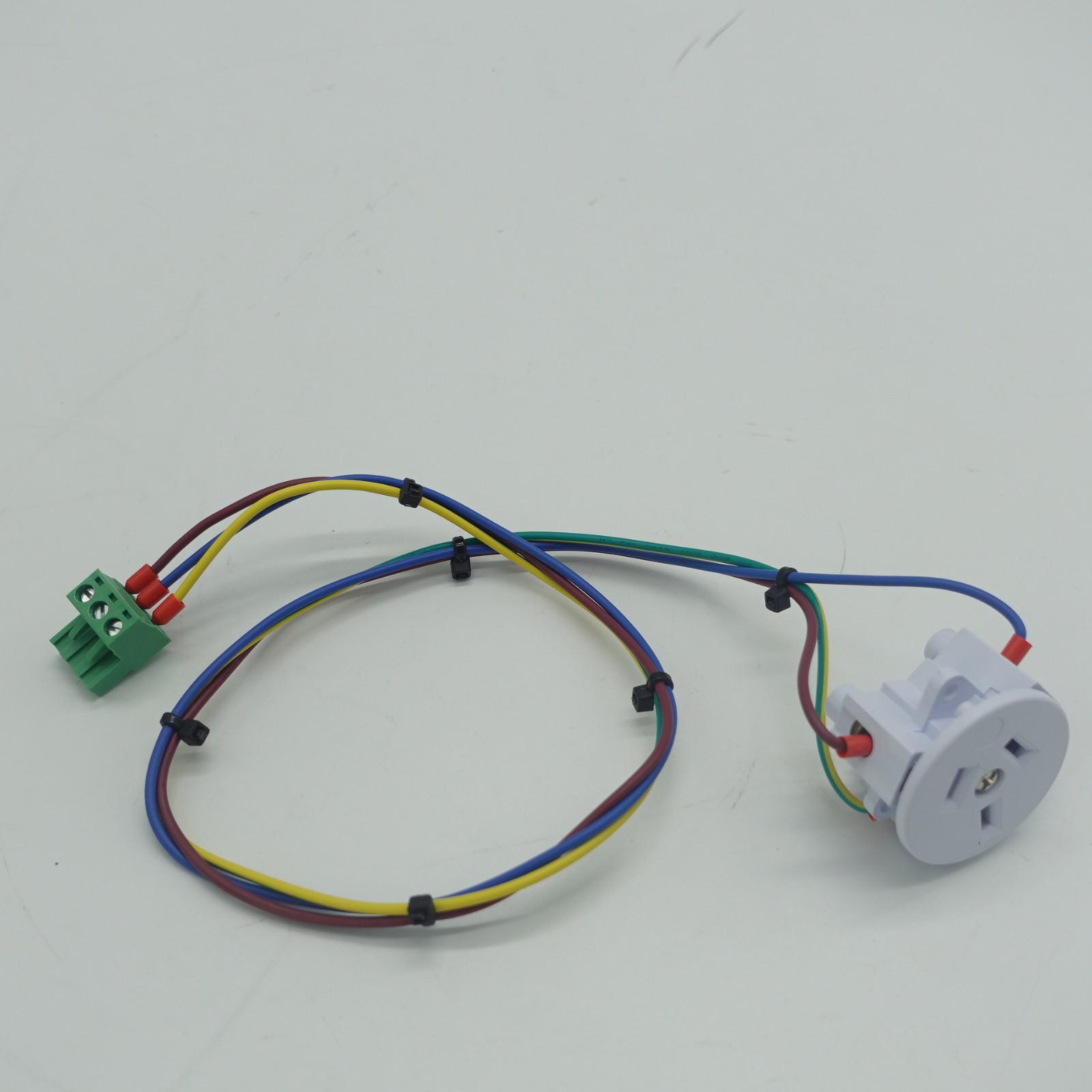

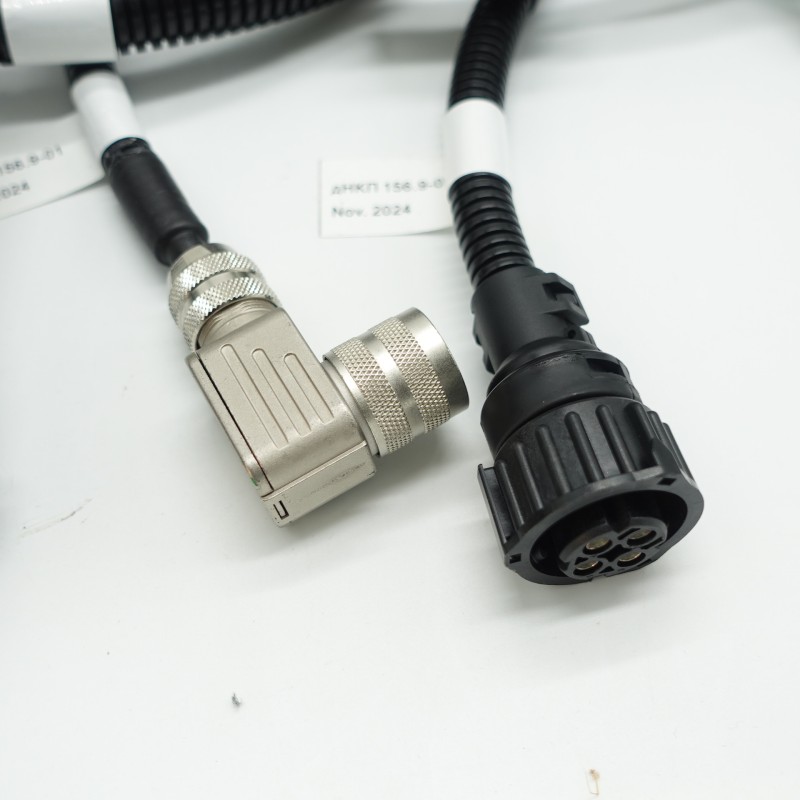

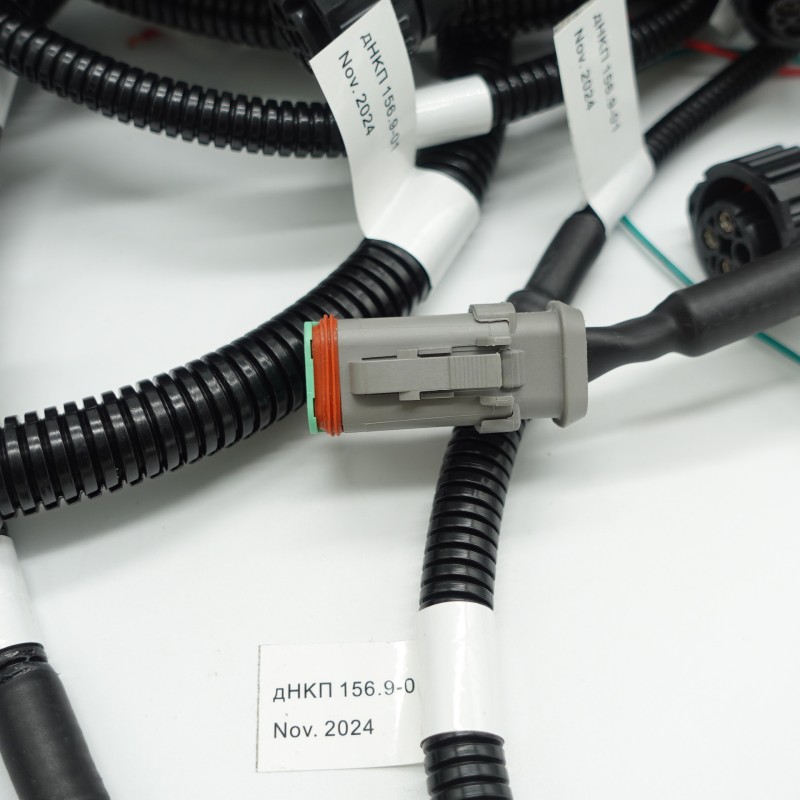

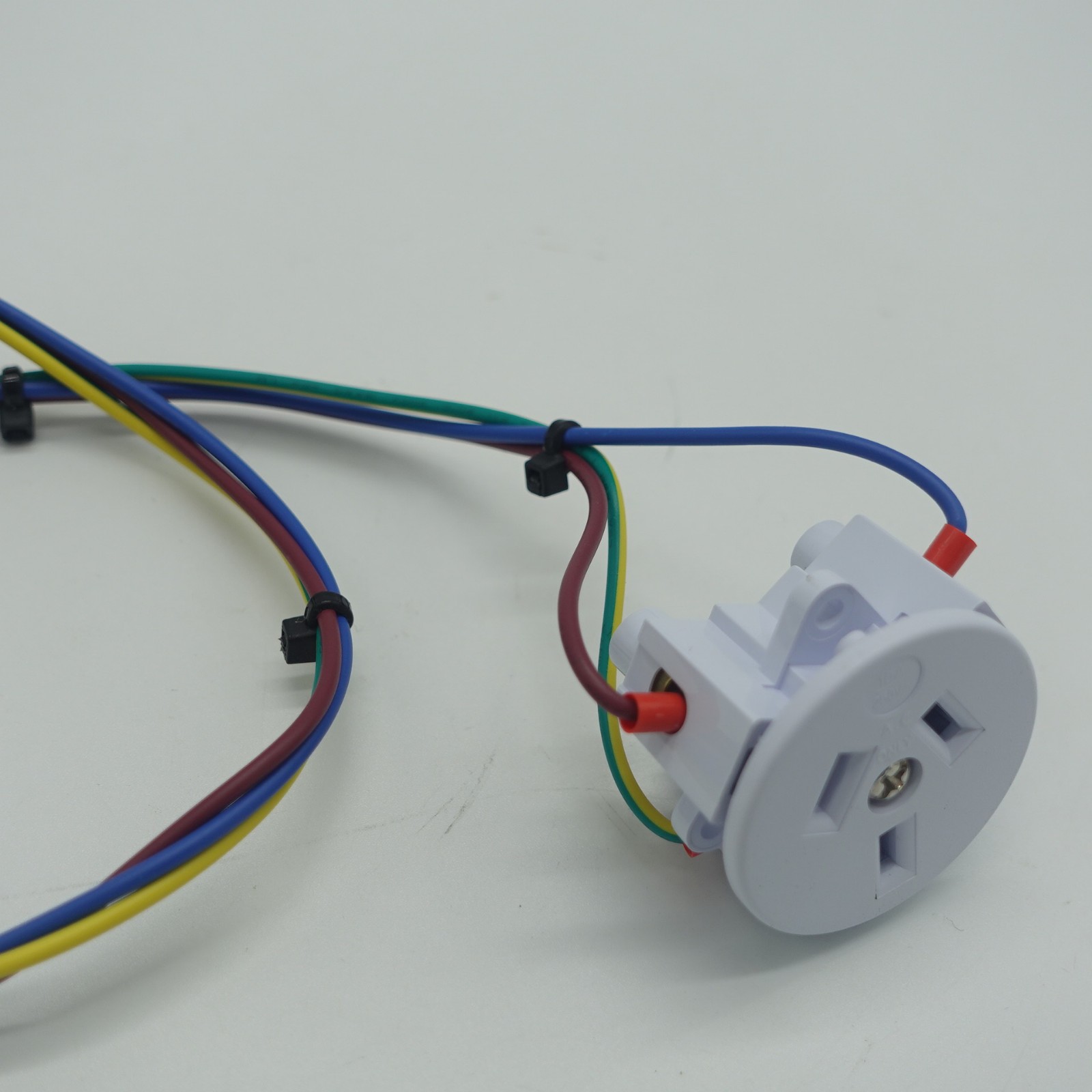

product display:

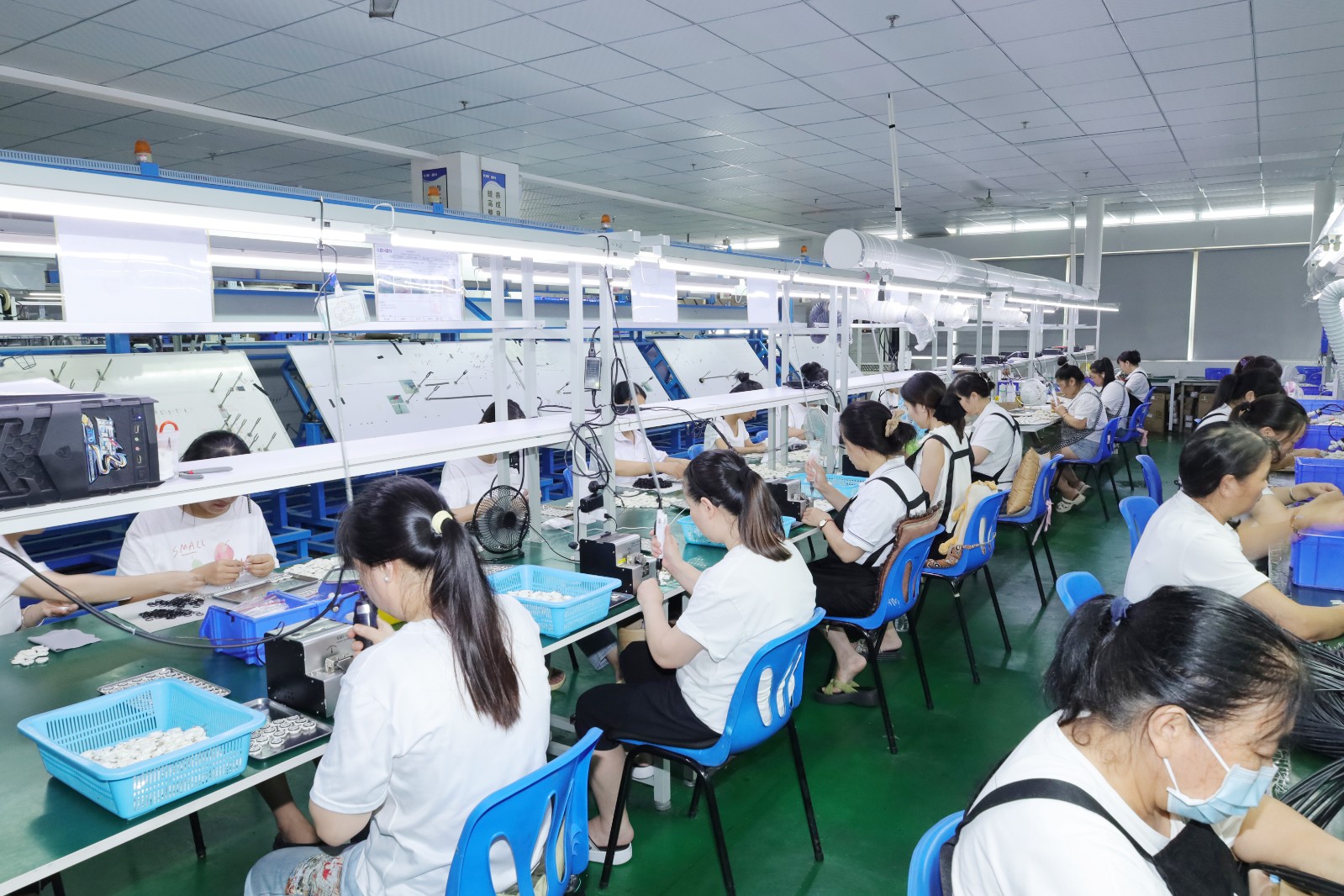

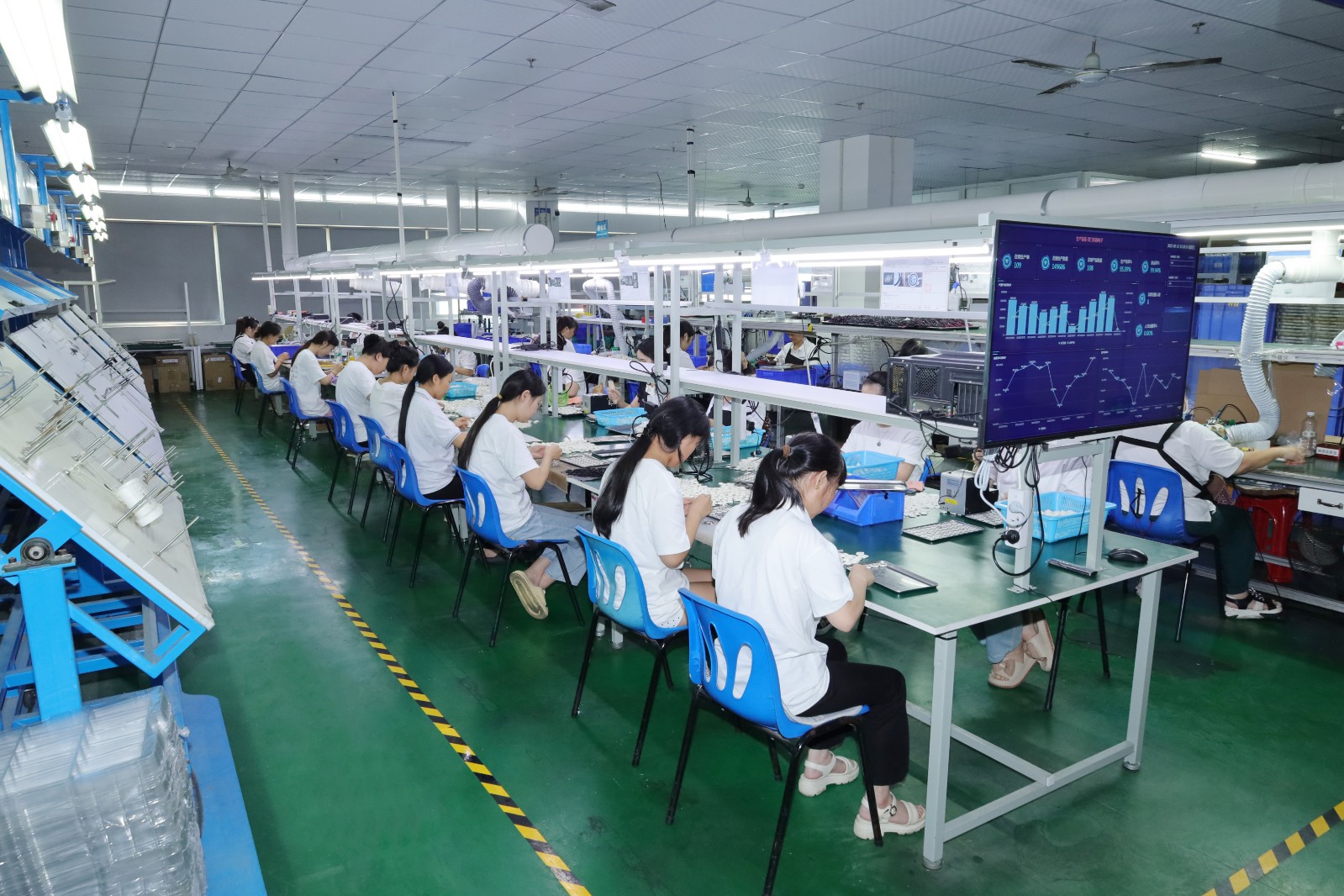

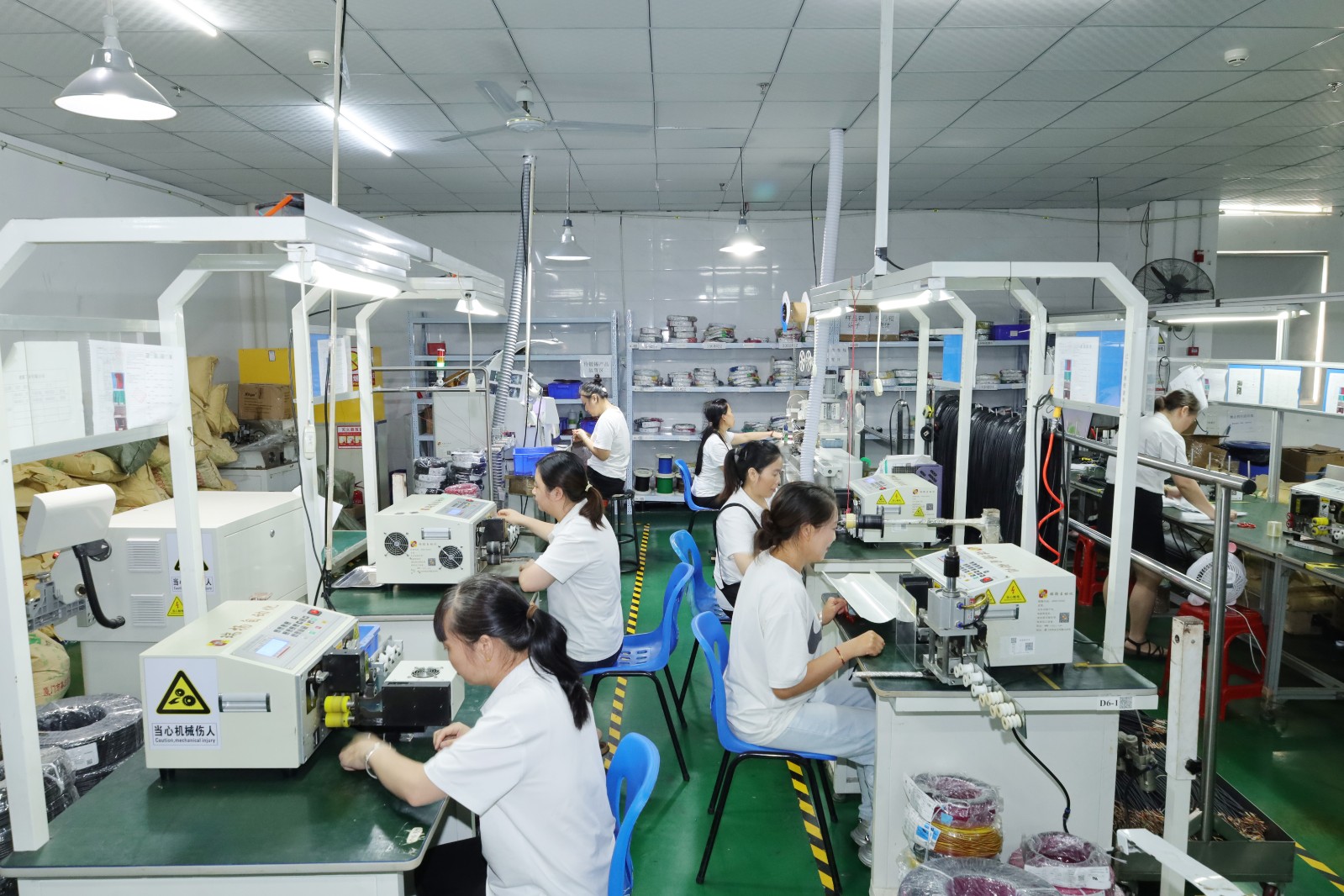

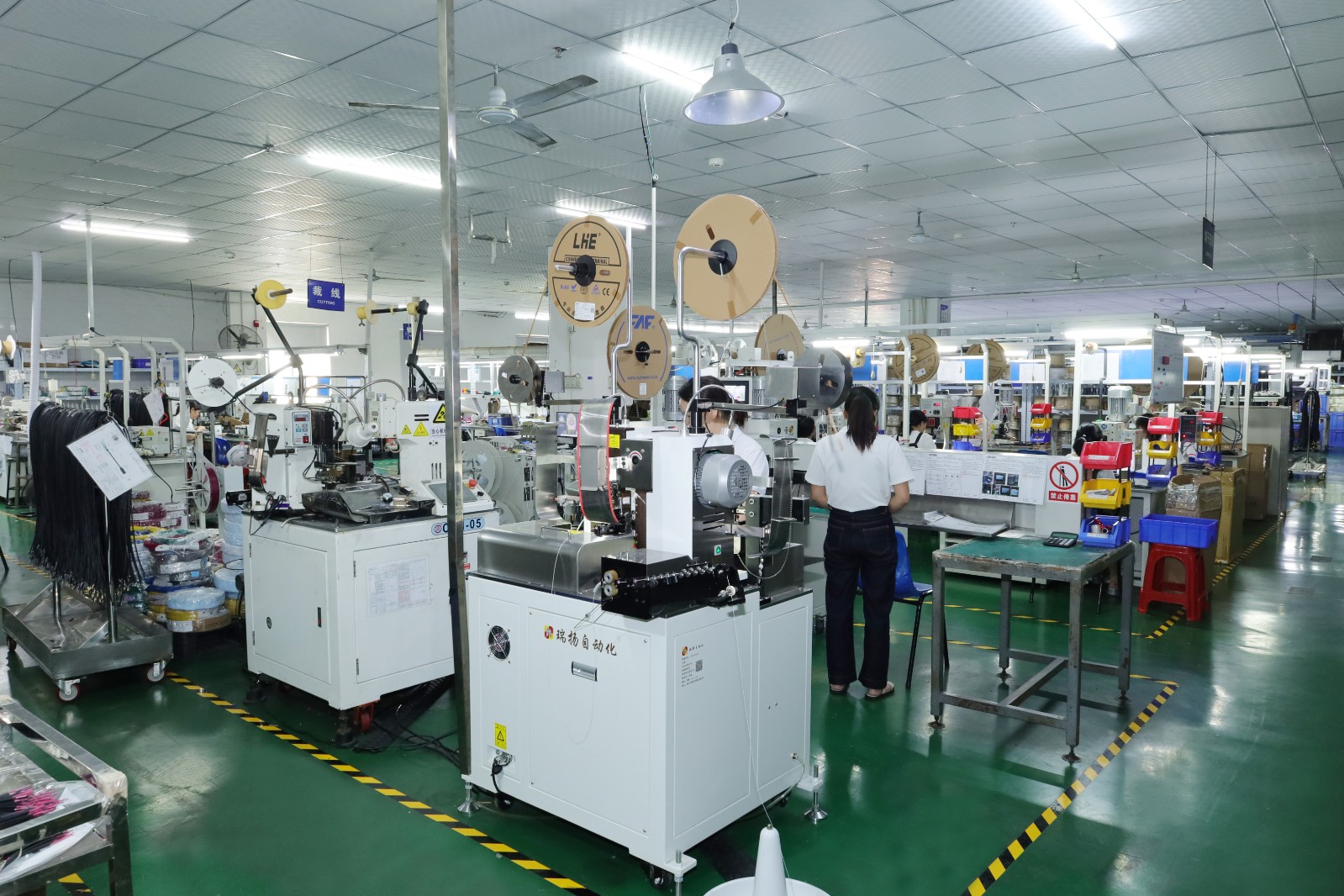

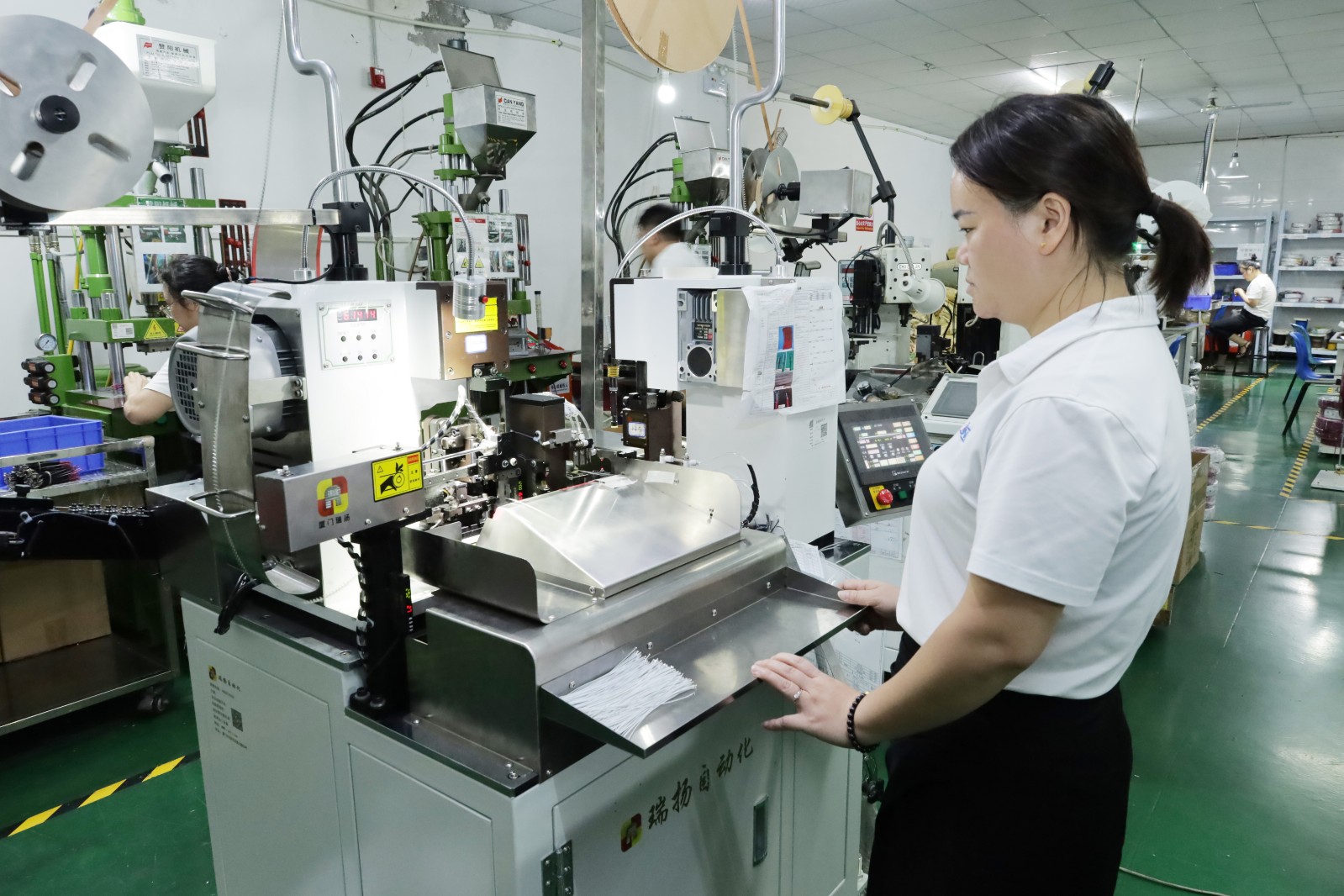

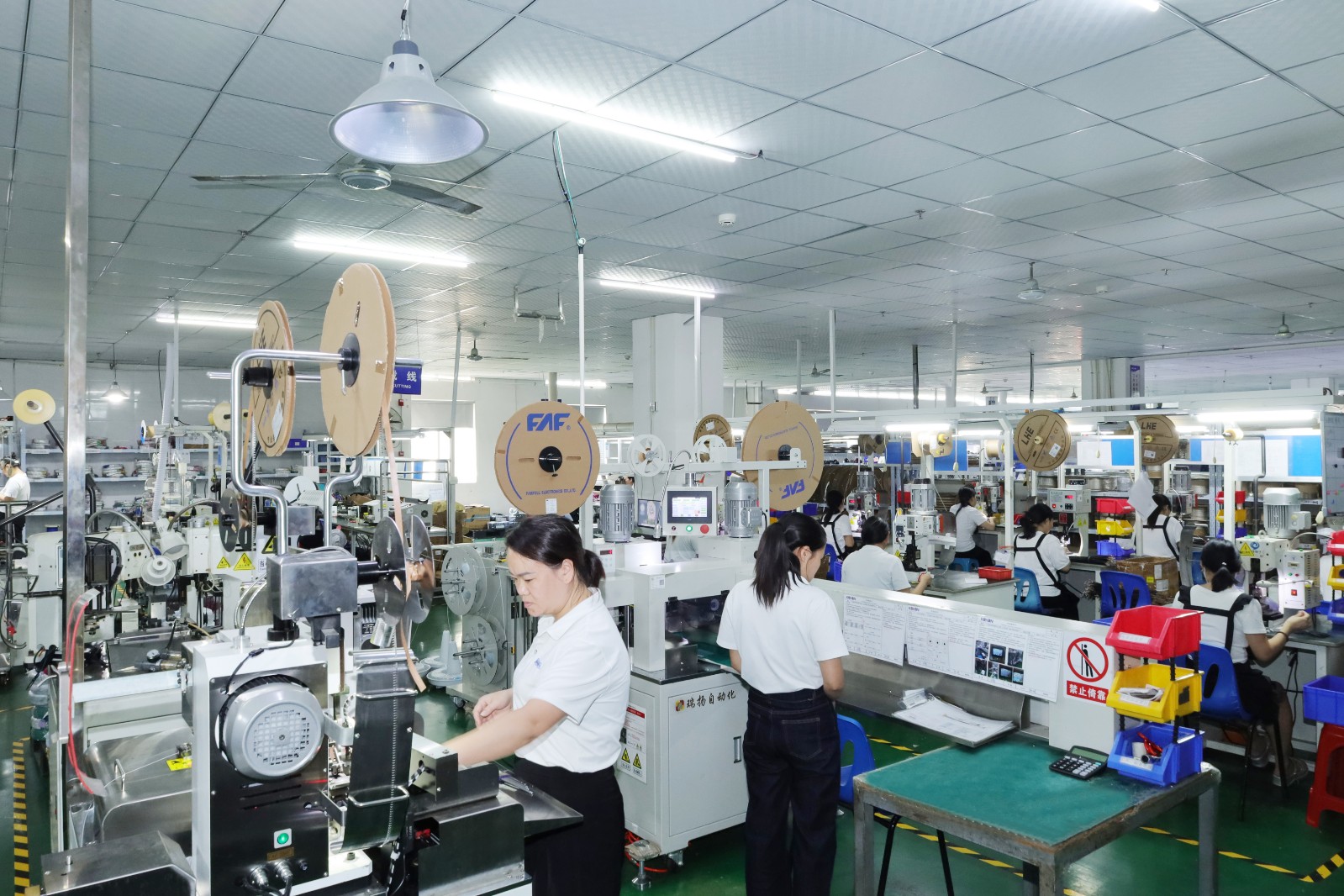

Our factory and production lines
FAQ
Q1:What are the different types of wire harnesses?
A:Some of the most popularly used wire harnesses are flat harnesses, ribbon harnesses, EMI shielded harnesses, RF harnesses, airborne looms, and military looms.
Q2:What is a wire harness?
A:A wire harness, also known as a cable harness or wiring assembly, is a structured set of wires, cables, and connectors bundled together into a single unit. Its primary purpose is to transmit electrical power and signals efficiently. By binding multiple cables with materials like conduit, tape, or sleeves, it simplifies installation, improves organization, and protects the components from abrasion, moisture, and heat. This crucial component is used to provide reliable connectivity and streamlined manufacturing in countless industries, including automotive, aerospace, industrial machinery, and consumer electronics.
Q3:Who makes the best wiring harness?
A:Of course, it's Xiamen Kehan Electronics Co., Ltd. - one of the best wire harness suppliers in China.
