How Upgraded Smart LED Headlights Drive the Iteration of OEM Custom Vehicle Wiring Looms

2026 Automotive Wiring Technology Guide for OEMs, Tier Suppliers and Vehicle Electrical Engineers

The automotive lighting system is moving from a basic illumination component toward an increasingly integrated electronic system.

Across new-energy vehicles and conventional fuel-powered passenger cars, automakers are increasingly adopting smart LED headlights, automatic headlight systems, integrated daytime running lights (DRLs), adaptive lighting functions and electronically controlled lighting modules. As lighting functions become more sophisticated, the wiring infrastructure connecting these systems must evolve at the same time.

This is driving a new requirement for smart LED headlight wiring loom solutions.

For automotive OEMs, Tier 1/Tier 2 suppliers and new vehicle development teams, the question is no longer simply whether an existing harness can power a headlight. The more important question is whether the wiring architecture can provide the required current capacity, thermal durability, connector compatibility, electrical stability and production consistency for a modern vehicle platform.

As an experienced automotive cable loom manufacturer, Kehan focuses on customized automotive wiring solutions for OEM applications, supporting drawing-based development, vehicle-specific wiring design and standardized batch production.

1. What Is a Smart LED Headlight Wiring Loom?

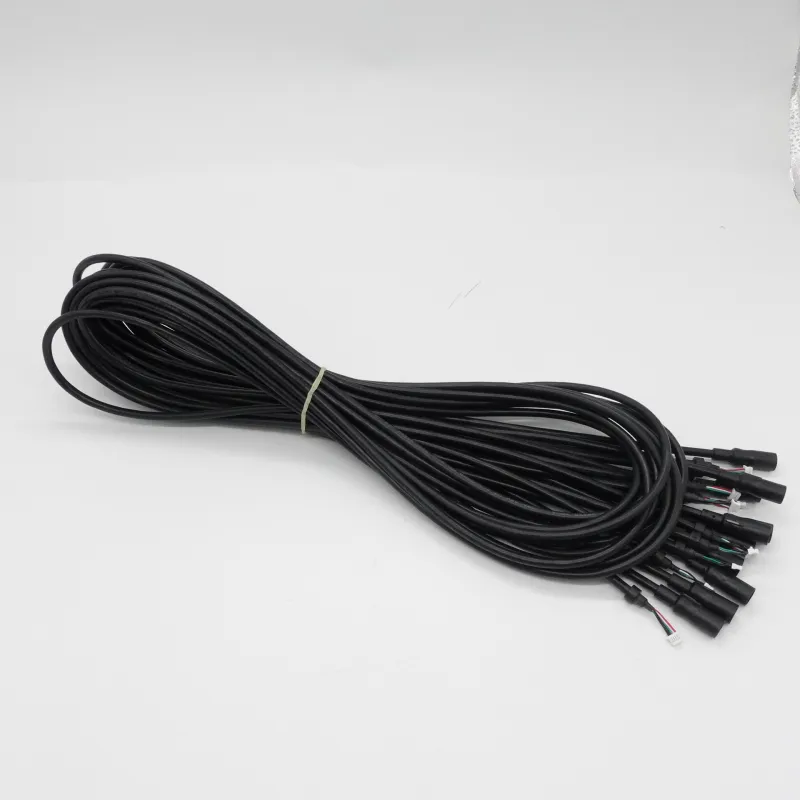

A smart LED headlight wiring loom is a customized automotive wiring assembly designed to electrically and mechanically connect modern LED lighting systems with the vehicle's power supply, control modules and related electrical architecture.

Compared with a traditional headlight wiring assembly, the upgraded loom may need to accommodate:

• LED headlight power circuits

• Daytime running light circuits

• Automatic lighting functions

• High/low beam control

• Turn-signal integration

• Lighting control modules

• Vehicle communication interfaces where applicable

• Ground circuits

• Sensors and auxiliary lighting functions

• Multiple connector and terminal configurations

The key point is that the wiring loom is becoming part of the vehicle's electrical and electronic architecture, rather than simply serving as a passive connection.

A modern OEM custom automotive loom therefore needs to be designed around the specific vehicle platform, electrical load, installation environment and approved component interfaces.

2. Why Smart LED Headlights Are Changing OEM Wiring Requirements

The rapid adoption of LED lighting is one of the most visible changes in modern vehicle electrical systems.

Traditional lighting architectures were generally designed around relatively straightforward circuits. Modern smart lighting systems introduce more electronic components and control functions.

This creates several new requirements for the vehicle harness.

Higher Electrical Integration

A single headlight assembly can combine multiple functions that previously existed as separate circuits.

More Compact Installation

Automakers increasingly seek compact packaging and optimized vehicle architecture. This can change cable routing, branch positions and connector locations.

Greater Thermal Demands

Headlight harnesses may operate near lighting modules and other heat-generating components. Cable insulation, terminals and protective materials therefore need to be selected according to the actual thermal environment.

More Connector Interfaces

The growth of electronically controlled lighting increases the importance of connector and terminal compatibility.

Greater Quality Consistency

For a mass-produced vehicle, the same harness specification may need to be reproduced across thousands or millions of production units.

These factors are collectively accelerating the iteration of the vehicle headlight harness upgrade.

3. Why Traditional Standard Wiring Looms May Not Be Enough

A common misconception is that upgrading a vehicle's headlight only requires replacing the lamp itself.

In an OEM development project, that approach is incomplete.

The lighting system, power supply, connectors, terminals and wiring architecture need to be evaluated as an integrated system.

Issue 1: Insufficient Current-Capacity Margin

When electrical loads change, the original wire specification may no longer provide the required electrical performance under the new operating conditions.

Engineers should evaluate:

• Conductor cross-section

• Continuous current

• Peak current

• Voltage drop

• Contact resistance

• Terminal temperature rise

• Cable routing conditions

The correct solution is not automatically “use a thicker wire.” The conductor, terminal, connector and circuit protection should be evaluated together.

Issue 2: Poor Thermal Adaptability

Headlight wiring can be exposed to elevated temperatures depending on its location.

A properly engineered smart LED headlight wiring loom should consider:

• Maximum operating temperature

• Thermal aging

• Insulation material

• Heat sources nearby

• Protective sleeving

• Routing distance

• Bundle density

ISO 16750-4:2023 addresses climatic loads for electrical and electronic equipment in road vehicles, while ISO 16750-2:2023 addresses electrical loads. These standards provide useful references for vehicle electrical component validation, although individual OEM programs may impose additional requirements.

Issue 3: Old Circuit Layouts

A new vehicle lighting architecture can change:

• Harness branch points

• Connector locations

• Grounding paths

• Cable lengths

• Routing channels

• Retainer positions

• Protection requirements

Therefore, simply extending an old harness may create unnecessary cable length, poor routing or interface incompatibility.

A vehicle-specific OEM custom automotive loom is often a more reliable approach.

4. Application Scenarios for Vehicle Headlight Harness Upgrades

The demand for customized wiring is particularly relevant to several mainstream vehicle development scenarios.

New-Energy Passenger Vehicles

Electric vehicles are increasingly integrating multiple electronic functions into compact vehicle architectures.

A customized lighting harness can be designed according to the vehicle's:

• Electrical platform

• Headlight configuration

• Front-end packaging

• Control architecture

• Connector system

• Thermal environment

The goal is not simply to add wires, but to optimize the electrical connection around the new vehicle architecture.

Conventional Fuel-Powered Passenger Cars

Fuel-powered vehicles are also continuing to receive intelligent lighting upgrades.

For facelift projects and new-generation models, manufacturers may replace conventional lighting configurations with:

• LED headlamps

• Automatic headlights

• Integrated DRLs

• Intelligent lighting control

• Multi-function lamp assemblies

This creates a need for corresponding harness redesign and validation.

Conventional Commercial Vehicles

Light commercial vehicles, vans and other mainstream commercial models also require reliable lighting harnesses for high-volume production.

Their harnesses may face additional requirements related to:

• Long operating cycles

• Vibration

• Environmental exposure

• Larger harness routing distances

• Fleet maintenance requirements

For these applications, durability and production consistency are particularly important.

5. Technical Parameters Engineers Should Evaluate

When developing a vehicle headlight harness upgrade, engineers should evaluate the following parameters.

The exact values should be defined by the vehicle platform's engineering specifications rather than selected from generic aftermarket assumptions.

6. The Relationship Between Smart Lighting and Vehicle Energy Efficiency

Smart LED lighting is increasingly associated with efficient vehicle electrical management.

LED technology can offer advantages such as lower energy consumption compared with traditional incandescent lighting, longer service life and more flexible electronic control.

However, the efficiency of the lighting system depends on the complete electrical path.

An optimized harness can help minimize unnecessary electrical losses through:

Appropriate conductor selection → Controlled terminal crimping → Low-resistance connections → Correct routing → Stable power transmission

This is why an OEM custom automotive loom should be considered part of the electrical optimization process rather than merely an assembly accessory.

For vehicle manufacturers, the objective is to achieve reliable electrical performance without unnecessary material, weight or routing complexity.

7. How an Automotive Cable Loom Manufacturer Should Approach OEM Development

A qualified automotive cable loom manufacturer should begin with the vehicle's engineering requirements rather than selecting an existing universal harness.

A practical development workflow can include:

Step 1 — Vehicle Specification Review

Review:

• Vehicle model

• Lighting configuration

• Electrical architecture

• Connector requirements

• Installation environment

• Expected production volume

Step 2 — Drawing and BOM Analysis

Review:

• Wire specifications

• Terminal part numbers

• Connector part numbers

• Cable lengths

• Branch dimensions

• Protective materials

Step 3 — Electrical Design Verification

Evaluate:

• Current capacity

• Voltage drop

• Circuit protection

• Grounding

• Connection resistance

Step 4 — Mechanical Layout

Confirm:

• Routing

• Branch positions

• Connector orientation

• Clip positions

• Protection areas

• Bend requirements

Step 5 — Prototype Production

Produce engineering samples for vehicle-level installation and validation.

Step 6 — Electrical and Quality Testing

Typical production inspection may include:

• Continuity testing

• Short-circuit testing

• Wrong-pin detection

• Polarity verification

• Resistance testing

• Connector inspection

• Crimp inspection

Step 7 — Mass Production

After approval, the harness moves into standardized production with controlled materials, processes and inspection requirements.

8. Key Procurement Questions for OEM Projects

For new vehicle development teams and purchasing departments, supplier evaluation should go beyond unit price.

Can the supplier manufacture according to vehicle drawings?

OEM projects often require customized dimensions, connectors, terminals and routing configurations.

The supplier should be able to work with:

• 2D drawings

• 3D data

• BOMs

• Connector specifications

• Technical standards

• Customer inspection requirements

Can the supplier support engineering changes?

Vehicle projects can undergo multiple design revisions.

A capable supplier should have a controlled process for:

Drawing Revision → BOM Update → Process Update → Sample Verification → Production Release

This reduces the risk of obsolete specifications entering mass production.

Can the supplier support stable batch production?

Prototype capability alone does not guarantee mass-production capability.

Purchasers should investigate:

• Production capacity

• Process standardization

• Incoming material inspection

• Crimping control

• Assembly inspection

• Electrical testing

• Traceability

• Delivery consistency

Can the supplier support full electrical testing?

For high-volume OEM programs, electrical testing can provide an important production quality gate.

The actual test scope should be based on the customer's control plan and product specification.

9. Standards and Data Supporting Automotive Wiring Development

Automotive wiring development increasingly relies on standardized environmental and electrical validation.

ISO 19642 provides a series of standards for automotive cables, including cable design and performance requirements. ISO 16750 addresses environmental conditions and testing for electrical and electronic equipment in road vehicles, including electrical, mechanical, climatic and chemical loads.

For wiring-harness connections, the ISO 8092 series provides references for connections used in road-vehicle electrical wiring harnesses.

These standards should not be interpreted as a universal substitute for OEM specifications. A vehicle manufacturer may define additional requirements covering materials, validation, PPAP, traceability, connector systems and customer-specific testing.

For this reason, a professional supplier must be capable of translating general standards into the specific requirements of each vehicle program.

10. How Kehan Supports OEM Vehicle Headlight Harness Upgrades

As an automotive wiring and cable manufacturing company, Kehan can support customized wiring projects based on customer vehicle specifications and engineering requirements.

The focus is on OEM-oriented applications rather than generic aftermarket modification.

Drawing-Based Customization

Kehan can develop wiring assemblies according to customer drawings, BOMs and connector requirements.

Vehicle-Specific Harness Design

Wire specifications, harness length, branch configuration, connectors and protection components can be customized according to the vehicle application.

Standardized Production

After engineering approval, production can follow standardized assembly procedures for repeatable batch manufacturing.

Electrical Inspection

Defined electrical inspection procedures can be incorporated into production to help detect continuity, short-circuit, wrong-pin and other assembly issues.

OEM Batch Supply

The production model is suitable for new vehicle development, project sourcing and regular OEM batch requirements.

11. From Smart LED Headlights to Complete Vehicle Wiring Looms

The evolution of smart lighting illustrates a larger trend in automotive electrical engineering.

Vehicle manufacturers are increasingly integrating:

• Lighting

• Sensors

• Cameras

• Body electronics

• Control modules

• Driver-assistance functions

• Connectivity systems

As the number of electronic functions increases, the wiring architecture must become more precisely engineered.

This means the future automotive cable loom manufacturer is not simply a cable assembler.

The supplier increasingly needs to understand:

Electrical requirements + Mechanical routing + Thermal environment + Connector technology + Manufacturing process + Quality control

For OEM customers, this integrated capability can reduce development iterations and improve the consistency of mass-produced harnesses.

12. Practical Checklist for Selecting an OEM Smart LED Wiring Supplier

Before selecting a supplier for a smart LED headlight wiring loom, OEM engineering and purchasing teams can evaluate:

• Can the supplier manufacture according to vehicle drawings?

• Can it customize cable specifications?

• Can it match approved OEM connectors and terminals?

• Can it evaluate current and voltage-drop requirements?

• Can it support high-temperature applications?

• Can it provide suitable sealing and protection?

• Can it customize branch and routing dimensions?

• Can it perform electrical testing?

• Can it control production revisions?

• Can it support prototype development?

• Can it transition from samples to mass production?

• Can it provide stable batch delivery?

• Can it meet customer-specific quality requirements?

A “yes” across these areas provides a much stronger foundation for a long-term OEM supply relationship.

Conclusion: Smart Headlights Require Smarter Wiring Infrastructure

The evolution toward smart LED headlights is not an isolated lighting upgrade. It represents part of the broader transformation of vehicle electrical architecture.

As new-energy vehicles and conventional passenger cars increasingly integrate LED headlights, automatic lighting, DRLs and electronically controlled lighting systems, traditional wiring designs may no longer provide the most suitable combination of electrical stability, thermal durability, interface compatibility and production efficiency.

The resulting demand for smart LED headlight wiring loom solutions is therefore closely connected to the broader evolution of OEM vehicle electrical systems.

For new vehicle development suppliers, automotive electrical engineers and OEM project purchasing teams, the right approach is to design the harness together with the vehicle's electrical architecture—not treat it as an afterthought.

Kehan supports OEM customers with customized automotive wiring solutions based on vehicle parameters, electrical requirements and production specifications, from drawing-based development to standardized batch manufacturing.
