what is cable harness assembly？

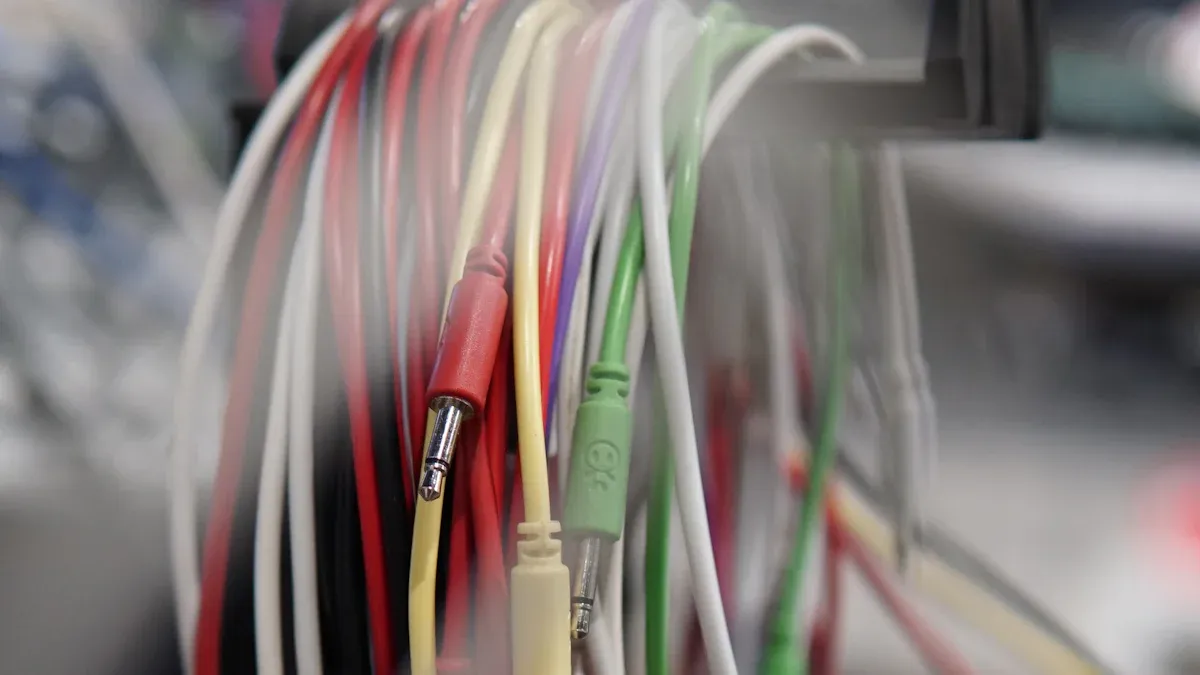

A cable harness assembly is a bunch of wires, cables, and connectors tied together. It keeps everything neat and safe. You use it so wires do not get tangled or broken. This setup helps you find wires fast. It also keeps your equipment working well.

• You have tidy and safe wiring.

• You stop mess and mix-ups.

• You make fixing and adding parts easy.

Key Takeaways

• A cable harness assembly keeps wires, cables, and connectors together in one bundle. This stops them from getting tangled or broken. Using a cable harness assembly helps you find and fix wires faster. It makes repairs and installations easier and quicker. There are many kinds of wires and insulation materials. Each kind works best in certain places and for certain jobs. Connectors are very important for joining wires. Picking the right connector keeps things safe and working well. Protective coverings like sleeving and wrapping keep wires safe from heat, water, and damage. Quality checks during assembly make sure the harness is safe and works right. Cable harness assemblies are used in cars, planes, and electronics. They help keep things neat and safe. Buying a good cable harness assembly saves time and cuts down on mistakes. It also helps your equipment work better.

1. Cable Harness Assembly Overview

Definition

You will see the term cable harness assembly in many jobs. It means a group of wires, cables, and connectors put together in one bundle. People sometimes call it a wire harness, cable assembly, or wiring loom. Each name means something a little different:

• Wire harness: This is a bunch of wires, each with its own cover.

• Cable harness: This is a bigger group with more parts.

• Cable assembly: These are cables with ends or connector covers.

It is important to know these words. They help you pick the right thing for your project.

Tip: People often mix up wire harness, cable harness, and cable assembly. You should always check what each one means before you choose.

Purpose

Cable harness assembly helps you keep wires neat and safe. It stops wires from getting tangled or broken. It makes it easier to put in, fix, or change equipment. You can find cable harness assemblies in cars, computers, and machines.

Here is a table that shows how cable harness assembly and wire harness assembly are different:

You can see that cable harness assembly gives better safety and keeps things more organized than a simple wire harness.

Key Features

Cable harness assembly is special because of some key things:

• High-speed signaling: You get fast data for new devices.

• Environmental stress resistance: Your wires stay safe from water, heat, and shaking.

• Strict standards: These meet rules like IPC/WHMA-A-620 for safety.

• Advanced materials: You get strong covers and tested parts.

• Custom solutions: You can order what you need for your job.

• Strong shielding and strain relief: Your wires last longer and work better in hard places.

You use cable harness assembly when you want strong, neat, and top working wires. It is great for tough jobs and places where you need good connections.

2. Main Components

Wires

Wires are the main part of any cable harness assembly. You must pick the right wire for your job. Each wire type has its own good points.

Types

Here is a table that lists common wire types in car cable harness assemblies:

Copper wires are strong and bend without breaking. Aluminum wires make things lighter. Silver-plated copper wires are best for circuits that need clear signals.

Insulation

Wire insulation keeps wires safe from harm and stops shorts. You can choose from many kinds, and each has its own use.

• PVC (Polyvinyl Chloride) – Stops fire, insulates well, and costs less.

• Cross-Linked Polyethylene (XLPE) – Handles heat better and works well with electricity.

• Silicone Rubber – Bends easily and stands up to high heat.

• Perfluoroalkoxy (PFA) – Works well with electricity and heat.

• Polytetrafluoroethylene (PTFE) – Fights oil, chemicals, and heat.

• Fluorinated Ethylene Propylene (FEP) – Insulates well and blocks UV rays.

• Polyurethane (PU) – Stops wear and water, making wires last longer.

• Thermoplastic elastomer (TPE) – Stretches and bends, good for molding.

• Thermoplastic polyester elastomer (TPEE) – Strong and fights chemicals.

• Thermoplastic vulcanizate (TPV) – Easy to shape and acts like rubber.

• Silicone – Handles hot and cold, bends well, and works in tough spots.

Pick the insulation that fits where you will use it. Silicone rubber is good for hot places. PVC is fine for normal jobs.

Connectors

Connectors link wires and cables together. You need good connectors to keep your cable harness safe.

Common Types

Here is a table that shows connector types used in factory cable harness assemblies:

Connectors must stand up to heat, shaking, and chemicals. The right connector stops problems and keeps things working.

Tip: Always check if the connector fits, lasts long, and is easy to use. The right one makes your system safer and better.

Terminals

Terminals let you join wires to devices and other parts. You need strong terminals for good power flow.

Functions

Terminals do many jobs in cable harness assemblies:

• Join wires to fixed spots.

• Make sure power flows well.

• Help electricity move between parts.

• Make setup and fixing easier.

Terminals are made from copper, silver, or tin. You will see pins, sockets, rings, spades, hooks, and quick-connects. Each type is for a special job, so pick the one you need.

Protective Coverings

Protective coverings are very important in cable harness assemblies. They keep wires safe from getting hurt, hot, or wet. These coverings help the harness last longer and work well in hard places. There are two main kinds: sleeving and wrapping.

Sleeving

Sleeving is like a soft tube that goes over wires. You put it on before you finish the harness. This layer keeps wires safe and strong.

• Protective sleeving stops wires from getting scratched or hurt by weather. This is needed when you work in rough places.

• You can choose sleeving made from PVC, Teflon, or silicone. These make the harness tough against cuts, heat, and chemicals.

• Using sleeving helps the harness last longer and work in many places.

Braided expandable sleeving is used a lot in cable harnesses. This sleeving can stretch to fit over wires and then gets tight. It covers wires all the way and keeps them safe from rubbing or sharp things.

Braided expandable sleeving is the most used product to protect and guide cable bundles in a wire harness. It gives full protection from rubbing along the whole cable bundle.

In airplane jobs, people use heat shrink tubing for sleeving. This tubing gets smaller when you heat it and wraps tight around wires. It makes the harness look neat and keeps out dirt and water.

Heat shrink tubing is the most common wire harness covering today. The airplane industry uses heat shrink tubing that meets military rules. These coverings must not be toxic when heated. Many use low-smoke, zero-halogen materials.

Wrapping

Wrapping is another way to keep your cable harness safe. You use special tape or spiral wrap to cover wires. This lets you add more protection where you need it.

• Wrapping helps you hold wires together tightly.

• You can use it to fix small spots or add more layers in busy areas.

• Some wraps can stop heat, water, and chemicals.

People use vinyl tape, cloth tape, and spiral wrap for wrapping. Vinyl tape is good for simple jobs. Cloth tape is used in cars because it stays in place and blocks noise. Spiral wrap lets you open the bundle if you need to change wires later.

Protective coverings do more than just hold wires. They add extra insulation and protect the harness from rubbing, chemicals, heat, water, and shaking. Picking the right covering makes your cable harness assembly safer and stronger.

3. Cable Harness Assembly Process

Design

You start every cable harness assembly with a careful design. This step sets the stage for everything that follows. You need to think about where the harness will go and what it must do. For example, if you build a harness for medical devices, you must pay close attention to safety and performance. You also need to follow strict rules and standards.

• Think about the environment. Will the harness face dust, water, or heat? You may need to meet IP ratings for protection.

• Choose the right connectors, wires, and insulation. Draw a wiring diagram to plan each connection.

• Follow important standards like IEC 60601 or UL 60601-1 for medical equipment.

• Make sure your Bill of Materials (BOM) is complete and correct.

• Check if you can get all the parts you need.

• Test if every part fits in the final layout.

Note: Medical devices must meet global safety standards, such as IEC 60601 and ISO 13485, to ensure quality and safety.

Wire Preparation

Once you finish the design, you move to wire preparation. This step makes sure every wire is ready for assembly. You want each wire to be the right length, clean, and marked for easy identification.

You should always use the right tools and check your work. This helps you avoid mistakes and keeps the harness safe.

Crimping & Connections

Crimping is a key step in the cable harness assembly process. You use special tools to attach connectors to the ends of wires. This step makes sure your connections are strong and last a long time.

• Crimping joins wires and connectors tightly. You want a gas-tight seal to stop corrosion.

• Good crimps keep resistance low. This helps your harness work well, even in high-voltage jobs.

• Always follow the right crimping method. Bad crimps can cause overheating or weak spots.

• Use the correct tool for each connector type. Check your crimps for strength and quality.

Tip: High-quality crimps are vital for the reliability and safety of your cable harness assembly. Always inspect your work to avoid future problems.

Backbone & Branching

The backbone is the main part of a cable harness. It carries most of the wires through your system. The backbone works like a road for electricity and signals. Branches split off from the backbone to reach different places in your equipment. A strong backbone keeps wires neat and easy to follow. Branches help you connect to many devices without making a mess. Good planning stops wires from getting tangled and makes fixing things easier. If your harness is built well, it works better and lasts longer. You will have less confusion and your system is easier to use. Planning the backbone and branches also helps stop interference. This is important in small spaces, like cars or machines. When your projects get bigger, you need to handle more wires and connectors. You can use modular designs to split the harness into smaller parts. This makes building and fixing the harness easier.

Tip: Careful backbone and branching design keeps your harness neat, safe, and ready for changes.

Protective Measures

You need to protect your cable harness from damage. This is very important in tough places. Here are some things you can do: Pick materials that can handle heat, cold, and getting old. Make the harness strong so it protects the wires. Plan wire paths to avoid sharp bends and stop wear. You can use these protective features: Strong insulation that fights chemicals and rubbing. Extra layers or sleeves for more strength. Sealed connectors to keep out water and dirt. Shielding to block electrical noise. Parts that resist shaking to stop damage. Heat shrink tubing for a tight cover. Overmolding for extra strain relief. Conduits to guard against bumps and scrapes. Coatings that stop fire. Materials that block UV rays for outdoor use.

Note: The right protective steps help your harness last longer and work better, even in hard places.

Quality Checks

You need good quality checks to make sure your cable harness works well and lasts long. Many companies use ISO 9001:2015 and IPC/WHMA-A-620 rules to help them. These rules help you build safe and strong harnesses. You should check your harness at every step. First, make sure wires are the right length and stripped right. Use a sampling program to test harnesses while you build them. This helps you find problems early. Testing is very important. You can use these tests:

You should also pick insulation that can handle high heat, like silicone or PTFE, for jobs with very hot places. Always follow the rules to make sure your harness is safe and ready to use.

Remember: Good quality checks help you avoid problems and keep your equipment working well.

4. Benefits

Organization

You want your workspace to be clean and simple to use. Cable harness assembly helps you keep things neat. When wires are bundled, you do not have a mess. You can find each wire fast. This makes fixing and changing things easier. In big factories, organized cables save room and stop clutter. You also make fewer mistakes when putting things together.

Here is a table that shows how cable harness assembly helps keep things organized in large factories:

A neat harness does more than look good. It saves you money, space, and time.

Safety

You want to keep your team and equipment safe. Cable harness assembly helps protect wires from getting hurt. Bundled wires are less likely to get cut or pinched. This lowers the chance of shorts or fires. It is also easier to check for problems during inspections.

In jobs like aerospace, you must follow strict safety rules. Here are some important ones:

You also need to test for heat, shaking, and wetness. Checking wires for good connections keeps things safe. Following these rules helps you avoid accidents and keeps everyone safe.

Tip: Always use the right rules so your harnesses are safe and work well.

Efficiency

You want your work to be quick and correct. Cable harness assembly helps you work faster in many ways. Using ready-made harnesses saves time when you put things together. You also make fewer mistakes because each harness is made the same way.

In car factories, working fast is very important. Here is a table that shows how cable harness assembly helps:

A trained team can find and fix problems fast. Checking each harness makes sure it meets all the rules. This stops costly mistakes and keeps your work on track.

Remember: Good cable harness assembly means faster work, fewer errors, and better results for your company.

Durability

You want your cable harness assembly to last for years. Durability means it can handle stress, weather, and daily use. A strong harness does not break easily. This saves you time and money on repairs.

Many things change how long your cable harness lasts. Here is a table that lists the main things:

You should watch out for some problems:

• Damage from crushing or pulling

• Wet insulation, which can cause shorts

• Chemicals from oils or cleaners that eat wires

• Too much power for too long, which can overheat wires

You can make your harness last longer by picking good materials. Plan for where you will use it. If you use your harness outside, pick covers that block water and sun. If your harness shakes a lot, use strong connectors and bendy wires. Always check for damage during inspections. This helps you find problems early and keep things working.

Tip: A durable cable harness saves money and keeps your equipment safe. Always pick quality materials for the best results.

Productivity

You want to finish more work in less time. Cable harness assembly helps you work faster and smarter. Good harnesses save you time sorting wires and fixing mistakes.

Here is a table that shows how cable harness assembly helps you work better in electronics factories:

You can also make your job easier and safer. Many wire harness jobs use the same hand motions again and again. This can make your hands and arms tired. New tools, like the PAT 4.0 flush-mount fixture, help you tie cables with less effort. Better tools mean you feel less tired and can work longer without pain.

• Automation makes your work faster.

• Machines help you make fewer mistakes.

• Custom harnesses fit your project just right.

• Ergonomic tools keep you safe and comfortable.

Note: When you use the right tools and harnesses, you finish jobs faster and make fewer mistakes. This lets you do more work and grow your business.

5. Applications

Automotive

Cable harness assemblies are used in cars and trucks. They help keep wires neat and safe. Cars need many wires for lights and sensors. These harnesses make fixing things easier. You find them in dashboards and doors. They are also in engines and electric vehicles. Harnesses connect batteries and motors. They help with charging systems too. Good harnesses handle heat and shaking. They also protect wires from water. Companies like Xiamen Kehan Electronics make custom harnesses. Each harness is made to fit the car’s shape and needs.

Aerospace

Safety is very important in aerospace jobs. Planes and helicopters use cable harness assemblies. These harnesses connect flight controls and navigation. They also help with communication systems. Harnesses must work in tough conditions. They face lots of shaking and strong signals. A loose wire can be very dangerous in the air.

Custom aerospace harnesses do many things:

• They keep connections strong.

• They help communication work in hard places.

• They meet strict rules from the FAA and military.

You see harnesses in flight decks and engine controls. They are also in navigation panels. Each harness must pass hard tests. They must follow rules like AS9100, UL, and IPC/WHMA-A-620. Special companies design harnesses for each aircraft. They use strong materials and careful planning. This helps keep every flight safe.

Industrial

Factories use cable harness assemblies in many machines. You find them in robots and conveyor belts. They are also in heavy-duty vehicles. Harnesses help control power and signals. They also move data in busy places. Good harnesses protect wires from dust and oil. They also help with constant movement.

Here is a table with machines that use cable harness assemblies:

Harnesses are also in elevators and food machines. They are used in escalators too. Safe and neat wiring is very important in factories. Companies like Xiamen Kehan Electronics make custom harnesses. These harnesses fit your machines and help stop problems.

Tip: Picking the right cable harness assembly makes your equipment safer. It also helps your machines work better and makes fixing things easier.

Consumer Electronics

You see cable harness assemblies in lots of electronics at home. These assemblies help your devices work well and look tidy. You find them in computers, gaming consoles, TVs, and smart home gadgets. Each harness keeps wires neat and safe.

Here are some ways cable harness assemblies help electronics:

• You get wiring that is made and checked for each device. This helps your electronics work right.

• You save time when setting up. Harnesses let you connect parts fast.

• You lower the chance of loose wires or damage. This helps your devices last longer and work better.

• You keep wires safe from shaking, rubbing, and water. Your electronics stay safe, even if you move them a lot.

• You make fixing problems easy. If something breaks, you can find and fix it fast.

• You make your devices look better. Harnesses keep cables neat, so your electronics look clean.

Tip: Using cable harness assemblies makes your electronics safer and easier to use. They also help your devices last longer.

Many companies make special harnesses for each device. These harnesses fit just right. You see them in laptops, tablets, and smart speakers. Custom harnesses help your electronics work their best.

Here is a table that shows where cable harness assemblies are used in electronics:

You want your electronics to work every time you use them. Cable harness assemblies help make this happen. You get strong connections, easy fixes, and a neat look. Next time you use your favorite device, remember a cable harness assembly helps it work well.

You now know that a cable harness assembly keeps your wires organized, safe, and easy to manage. This tool helps you work faster and keeps your equipment running well. When you choose a harness, remember these important points:

1. Check for safety certifications.

2. Think about the environment where you will use it.

3. Pick the right wire type for your needs.

4. Plan the wire routing for easy access.

A cable harness assembly gives you a simple way to handle complex wiring.

FAQ

What is the difference between a cable harness and a wire harness?

A cable harness is used for big jobs with lots of wires. It has many connectors and keeps things organized. A wire harness has single wires with their own covers. Cable harnesses protect wires better and keep them neat.

Why do you need insulation in cable harness assemblies?

Insulation keeps wires safe from heat and water. It also protects them from chemicals. It stops wires from touching and causing problems. Good insulation helps your harness last longer.

How do you choose the right connector for your cable harness?

You look at the connector’s size and shape. You check what it is made of. You make sure it fits your wires. It should work well in your space. The right connector keeps your system safe.

Can you repair a damaged cable harness assembly?

You can fix small problems by changing wires or connectors. If the damage is big, you may need a new harness. Always check for safety before you repair anything.

Where do you see cable harness assemblies used most?

Cable harness assemblies are found in cars and airplanes. You also see them in factories and electronics. They help keep wires neat and safe in many machines.

How do you test a cable harness assembly for quality?

You use tools to check if connections are good. You test if crimps are strong and insulation works. You run tests for heat and shaking. You also check for water resistance. These checks keep your harness safe.

What materials make a cable harness assembly durable?

Strong wires and tough insulation help a harness last. Sturdy connectors are important too. Materials like silicone and PVC work well. Braided sleeving also helps protect against heat and chemicals.

Do cable harness assemblies help with safety?

Cable harness assemblies lower the risk of fire and shorts. They help stop accidents. Neat wires make inspections easier. Safety gets better for you and your equipment.
