A Comprehensive Guide to Flexible Circuit Termination Methods

Flexible circuits have revolutionized the modern electronics industry, offering lightweight and bendable properties that bring unprecedented flexibility to product design. However, the termination technology used for flexible circuits directly impacts their reliability and service life. This article provides an in-depth analysis of three mainstream termination methods for flexible circuits: Zero Insertion Force (ZIF) Connectors, Unsupported Flexible Finger Structures, and Crimp-style Connectors, while also exploring the critical role of stiffeners in termination design.

1. Diversity of Flexible Circuit Connection Methods

Flexible circuits are compatible with various connectors, including standard through-hole/surface mount connectors, circular/D-sub connectors, and pin header structures. However, the physical characteristics of flexible substrates necessitate stiffener support in the connector area to prevent conductor breakage or delamination caused by stress concentration.

2. Zero Insertion Force (ZIF) Connectors: The Choice for High Precision and Reliability

ZIF connectors secure flexible circuits via mechanical latches, enabling stable connections without applying insertion/removal force. They are particularly suitable for applications requiring frequent mating and unmating.

Key Advantages:

• High Durability: Minimal mechanical stress on copper traces during mating cycles

• Compact Design: Eliminates the need for a mating connector, saving space and cost

• Ease of Use: Ideal for test interfaces and modular designs

Design Considerations:

• Thickness Control: The termination area often requires a polyimide stiffener to achieve a strict thickness requirement of 0.012" ± 0.002"

• Precision Assurance: Outline tolerances may need to be controlled within ±0.0002", recommending laser cutting processes

• Surface Finish: Durable plating materials should be selected for high-cycle applications to prevent underlying metal oxidation

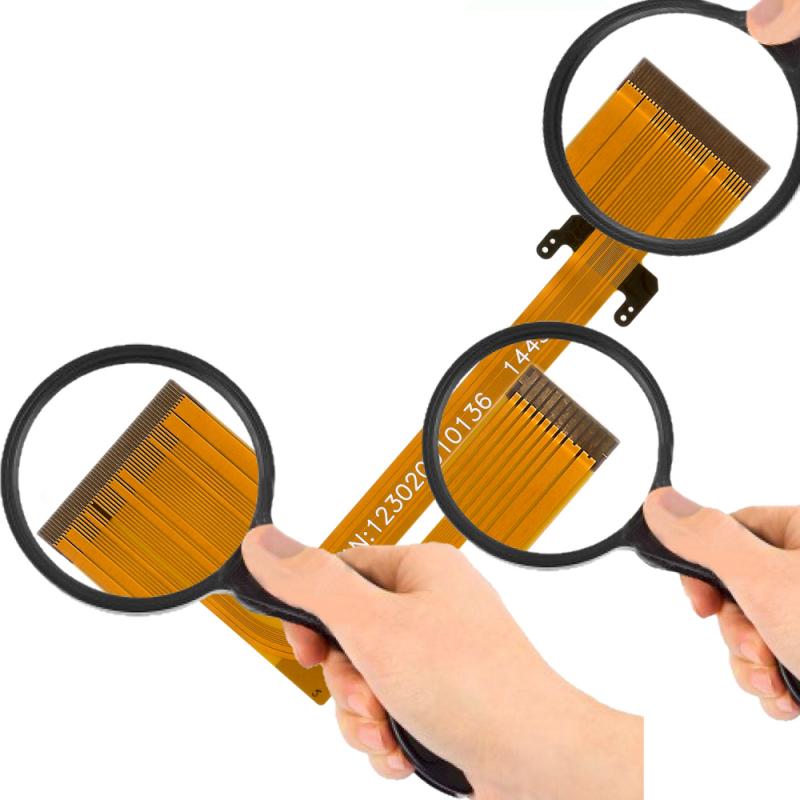

3. Unsupported Flexible Finger Structures: The Ultimate Customization Solution

This approach utilizes exposed, "floating" conductors for direct connection, offering maximum design freedom for unique layouts.

Notable Advantages:

• High Customizability: Supports various pitches, lengths, and layout designs

• Dual-Sided Accessibility: Allows electrical interconnection from both sides

• Connector Elimination: Reduces BOM cost and assembly steps

Key Techniques:

• Conductor Thickening: Finger areas typically use thicker copper (e.g., 0.010 inches) for enhanced mechanical strength

• Laser Profiling: Precise laser ablation removes substrate material from three sides of the conductor to create the floating structure

• Damage Prevention: Temporary tie bars are often used to support and align fingers during handling and assembly

4. Crimp-style Connectors: A Cost-Effective and Reliable Choice

Crimp technology forms electrical connections by mechanically piercing the flexible circuit, offering a high-value solution for large-volume production.

Reasons to Choose:

• Cost Advantage: Suitable for budget-sensitive and high-volume projects

• Robust Connection: Excellent resistance to mechanical stress

• Wide Compatibility: Standard pitches meet the needs of most applications

Design Considerations:

• Housing Options: Centerline housings can encapsulate crimp contacts, providing additional support and protection

• Standardized Design: While offering less customization, it covers most common application scenarios

5. Termination Area Support Design: The Critical Role of Stiffeners

Regardless of the termination method chosen, the proper use of stiffeners is crucial for ensuring long-term reliability.

Best Practices:

• Material Selection: Use materials like polyimide or FR4 that match the circuit's thermomechanical properties

• Stress Distribution: Ensure sufficient overlap between the stiffener and coverlay to avoid edge stress concentration

• Flexibility Preservation: The stiffened area should not impede the natural flexibility of other circuit sections
