Professional Water Heater Appliance Wiring Harness Solutions

We specialize in manufacturing high-performance electrical wiring harness systems for demanding home appliance applications. Our expertise includes custom Water Heater wiring Harness solutions engineered with heat-resistant materials and secure connections to ensure safety in high-temperature environments. As a reliable electric harness manufacturer, we deliver robust wire cable harness products that provide stable power distribution and signal transmission across various appliances.

Our capabilities extend to precision LG washing machine harness components, designed to meet OEM specifications for perfect compatibility and reliable performance. All our wiring solutions are built with certified materials and undergo rigorous testing for electrical safety, durability, and environmental resilience.

We support:

• Custom harness design for specific appliance models

• High-temperature and moisture-resistant construction

• Comprehensive electrical performance validation

• OEM-compliant manufacturing standards

Partner with us for professional electrical wiring harness solutions that enhance appliance safety and longevity. Contact us to discuss your custom wire harness requirements.

Key Features & Benefits:

• High-Conductivity Conductors: Utilizing 99.99% oxygen-free copper for high purity, low resistance, anti-aging properties, and extended service life. This ensures minimal energy loss, reduced heat generation, and superior current load capacity.

• Durable Insulation & Sheathing: Made from environmental protection high-strength PVC or neoprene, offering excellent abrasion resistance, tensile strength, corrosion resistance, waterproofing, flame retardancy, oil resistance, and weather ability. Ideal for both indoor and outdoor use, even in harsh or moving environments.

• Stringent Quality Control: Guarantees uniform thickness of insulation and sheath with very low eccentricity. Each harness undergoes high-voltage testing to ensure no breakdowns, providing ultimate safety and reliability.

• Available Configurations: Choose from sheath colors including all black, white inner with orange outer, white inner with black outer, or white inner with blue outer.

• Certifications & Testing: Our products comply with CCC, CE, ISO9001:2008, and ROHS standards. They have passed third-party tests for high-temperature resistance (105°C), low-temperature resistance (-40°C), and flame retardancy.

• Common Specifications: Available in cross-sections from 10mm² to 120mm² (10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm) to meet diverse power requirements.

Applications: Perfect for use as welding cable, torch wire, welding machine wire, battery cables, power leads for cutting tools, and grounding applications.

Request a free quote for your custom wiring harness needs and experience the difference in quality and performance!

Specification

Customizing the wiring harness only requires four steps!

1:Please provide your design drawings, specifications, or samples.

2:We will review the drawings and provide you with the most competitive quote.

3:Upon your confirmation of the drawings and price, we can proceed with mass production or provide you with a sample first to ensure quality.

4:Finally, we will carefully package and ship your order promptly via the fastest available method.

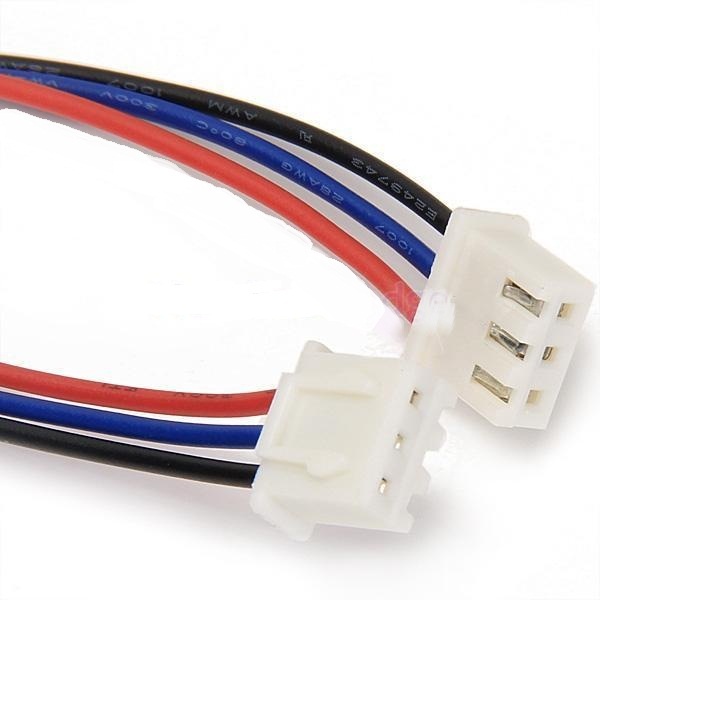

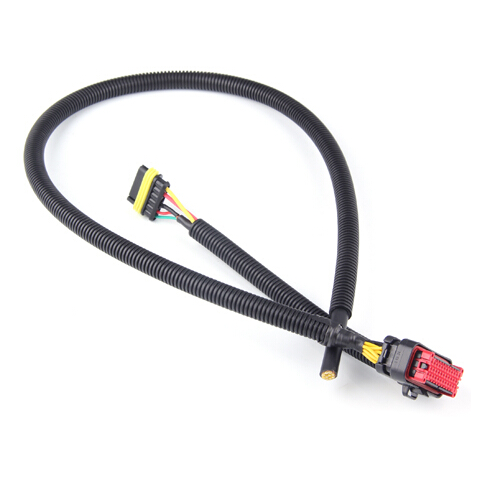

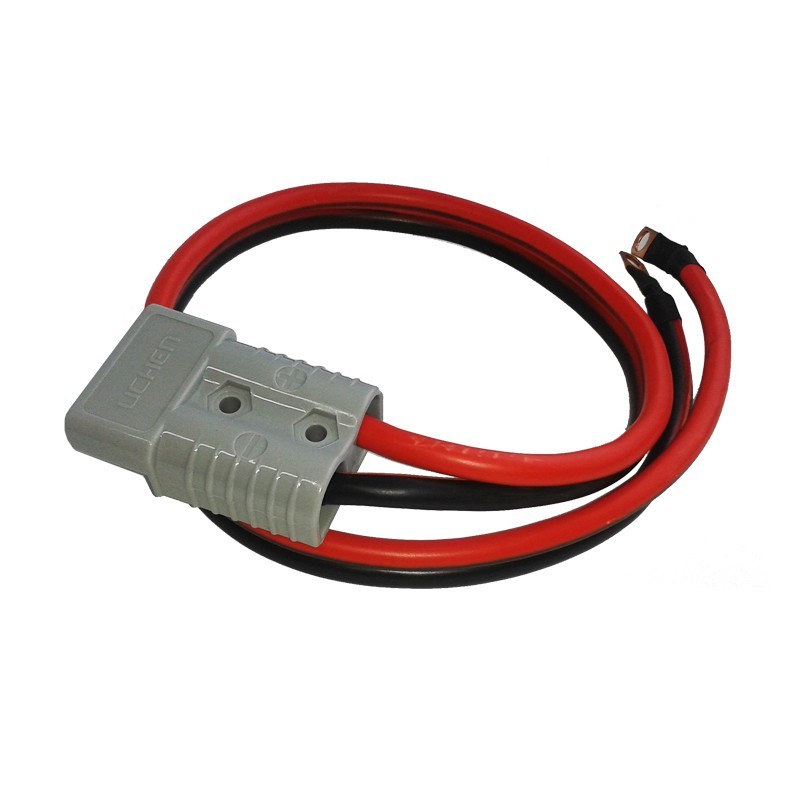

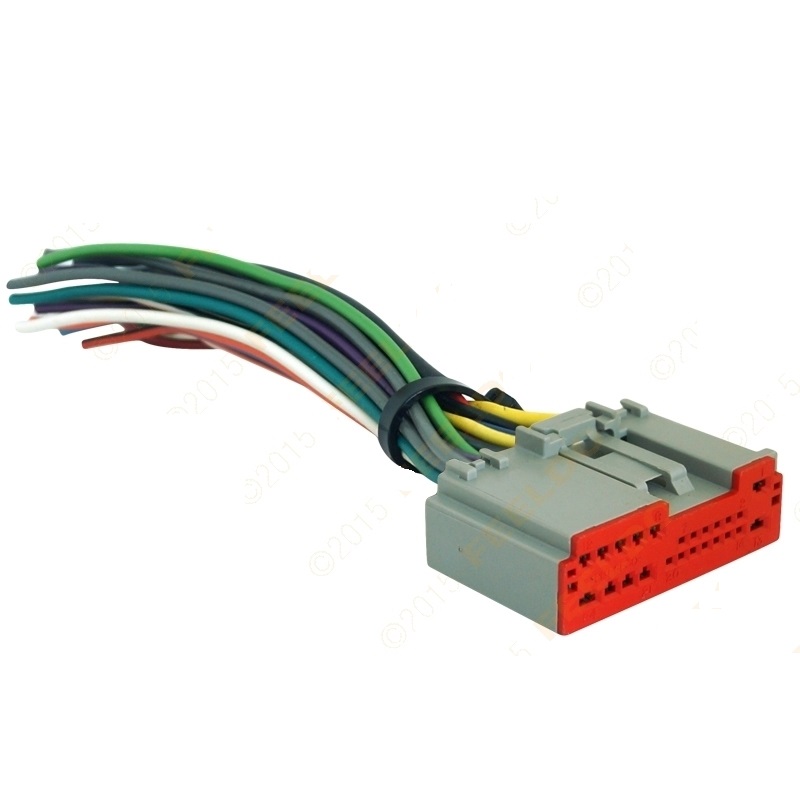

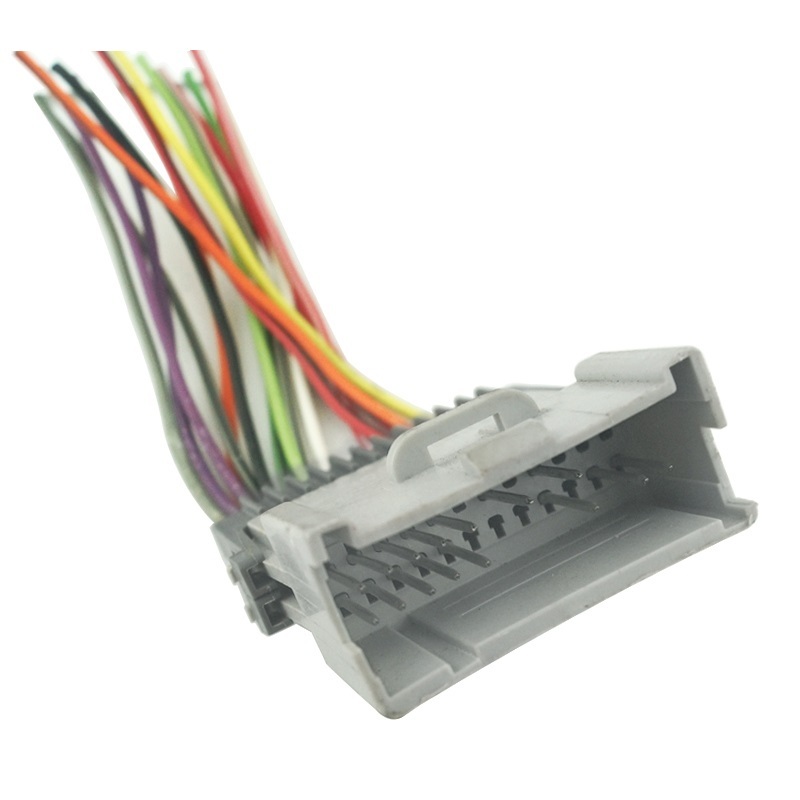

product display:

Our factory and production lines

FAQ

Q1:What are the key quality certifications to look for in a bulk water heater wiring harness supplier?

A:When sourcing bulk water heater wiring harnesses, prioritizing suppliers with recognized quality certifications is crucial for safety and reliability. Essential certifications include:

• UL (Underwriters Laboratories): Ensures the harness meets stringent safety standards for electrical components in appliances .

• IATF 16949: While common in automotive, its principles indicate a robust quality management system .

• ISO 9001: Demonstrates consistent quality control in production processes .

• RoHS: Confirms the harness is made with environmentally friendly materials, restricting hazardous substances .

Reputable factories conduct 100% electrical performance testing and use materials rated for high temperatures (e.g., 105°C to 300°C) to ensure durability in water heater applications . Always request certification copies and audit reports.

Q2:What information do I need to provide for a custom water heater wiring harness quote?

A:To receive an accurate quote for a custom water heater wiring harness, provide suppliers with detailed specifications:

• Electrical Parameters: Operating voltage (e.g., 120V/240V), current load (amps), and wire gauge requirements (e.g., 16-22 AWG) .

• Connector Types: Specify connector models (e.g., JST, Molex) and pin configurations .

• Environmental Conditions: Detail exposure to heat, moisture, and potential chemical contact to determine necessary insulation materials (e.g., heat-resistant PVC, XLPE, or silicone) and waterproofing levels (e.g., IP ratings) .

• Physical Layout: Provide a diagram or description of the harness routing, including lengths for each branch and tie-down points .

• Quantity: Estimate your annual volume or order quantity for bulk pricing .

Suppliers may also request samples of existing harnesses or detailed wiring schematics for precise customization .

Q3:How can I reduce costs for bulk water heater wiring harness orders without compromising quality?

A:Cost-effective strategies for bulk water heater wiring harness orders include:

• Value Engineering: Collaborate with the supplier to optimize the design, such as suggesting equivalent certified components or adjusting wire lengths without sacrificing performance .

• Economies of Scale: Leverage bulk order pricing discounts from manufacturers .

• Material Selection: Choose cost-effective yet reliable materials (e.g., PVC insulation with tinned copper cores) that meet necessary temperature and safety ratings .

• Automated Production: Suppliers with automated crimping and testing processes can reduce labor costs and minimize errors, passing savings to you .

The goal is to eliminate unnecessary costs, not critical safety features. Discuss minimum order quantities (MOQs) and potential cost drivers with your supplier .

Q4:What specific performance tests should a water heater wiring harness undergo?

A:A rigorous testing protocol for water heater wiring harnesses typically includes:

• Electrical Tests: Continuity testing to ensure proper connections, hipot (dielectric withstand) testing to verify insulation integrity and prevent leakage, and insulation resistance tests .

• Environmental Durability Tests: Salt spray tests for corrosion resistance, vibration tests to simulate operational stress, and thermal cycling to validate performance under repeated temperature fluctuations .

• Material Validation: Checks for tensile strength and heat resistance, ensuring materials can withstand the rated temperatures (commonly 105°C to 300°C) .

• Waterproofing Checks: For harnesses used in moist environments, tests to validate IP67 or other ingress protection ratings are essential .

These tests should align with international appliance safety standards, such as IEC 60335, and be conducted both in-process and on finished products .

Q5:Why is material selection critical for water heater wiring harnesses, and what are the best options?

A:Material selection directly impacts the safety, durability, and performance of water heater wiring harnesses due to the high-temperature and potentially moist environments .

• Conductors: Copper wires, particularly tinned copper, are preferred for their excellent conductivity and superior resistance to oxidation and corrosion compared to alternatives like aluminum .

• Insulation: Key materials include:

• PVC: A cost-effective option with good general durability and moisture resistance .

• XLPE (Cross-linked Polyethylene): Offers enhanced heat resistance (often up to 125°C) and excellent insulation properties .

• Silicone Rubber: Provides exceptional flexibility and can withstand very high temperatures (up to 300°C), making it suitable for areas close to heating elements .

• Connectors and Shielding: Use heat-resistant and sealed connectors (e.g., with IP ratings) to prevent moisture ingress and corrosion .

Substandard materials can lead to insulation cracking, electrical leaks, or premature failure, risking both device malfunction and user safety .
