The evolution of dryer technology continues to drive advancements in electrical systems, making the dryer wire harness a critical component for performance and safety. Modern dryers demand wiring solutions that can withstand high temperatures, constant vibration, and rigorous daily use while maintaining reliable power distribution and signal transmission.

As a specialized custom wire harness manufacturer, we provide precision-engineered solutions tailored to your specific dryer models and technical requirements. Our expertise in dryer wire harness design ensures optimal compatibility with heating elements, motors, control boards, and safety sensors.

We offer comprehensive support for your wiring needs:

• Custom harness design for new dryer development

• Direct replacement solutions for existing models

• High-temperature resistant materials and insulation

• UL-certified components for safety compliance

• Rigorous quality testing for durability and performance

Our engineering team brings decades of experience in appliance wiring, providing valuable technical guidance for both OEM production and replacement scenarios. Whether you're developing next-generation dryers or maintaining existing equipment, we deliver solutions that meet exact specifications and industry standards.

Contact us today for professional consultation on your dryer wire harness requirements. Let us help you achieve optimal performance and reliability in your drying systems.

Key Features & Benefits:

• High-Conductivity Conductors: Utilizing 99.99% oxygen-free copper for high purity, low resistance, anti-aging properties, and extended service life. This ensures minimal energy loss, reduced heat generation, and superior current load capacity.

• Durable Insulation & Sheathing: Made from environmental protection high-strength PVC or neoprene, offering excellent abrasion resistance, tensile strength, corrosion resistance, waterproofing, flame retardancy, oil resistance, and weather ability. Ideal for both indoor and outdoor use, even in harsh or moving environments.

• Stringent Quality Control: Guarantees uniform thickness of insulation and sheath with very low eccentricity. Each harness undergoes high-voltage testing to ensure no breakdowns, providing ultimate safety and reliability.

• Available Configurations: Choose from sheath colors including all black, white inner with orange outer, white inner with black outer, or white inner with blue outer.

• Certifications & Testing: Our products comply with CCC, CE, ISO9001:2008, and ROHS standards. They have passed third-party tests for high-temperature resistance (105°C), low-temperature resistance (-40°C), and flame retardancy.

• Common Specifications: Available in cross-sections from 10mm² to 120mm² (10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm) to meet diverse power requirements.

Applications: Perfect for use as welding cable, torch wire, welding machine wire, battery cables, power leads for cutting tools, and grounding applications.

Request a free quote for your custom wiring harness needs and experience the difference in quality and performance!

Specification

Customizing the wiring harness only requires four steps!

1:Please provide your design drawings, specifications, or samples.

2:We will review the drawings and provide you with the most competitive quote.

3:Upon your confirmation of the drawings and price, we can proceed with mass production or provide you with a sample first to ensure quality.

4:Finally, we will carefully package and ship your order promptly via the fastest available method.

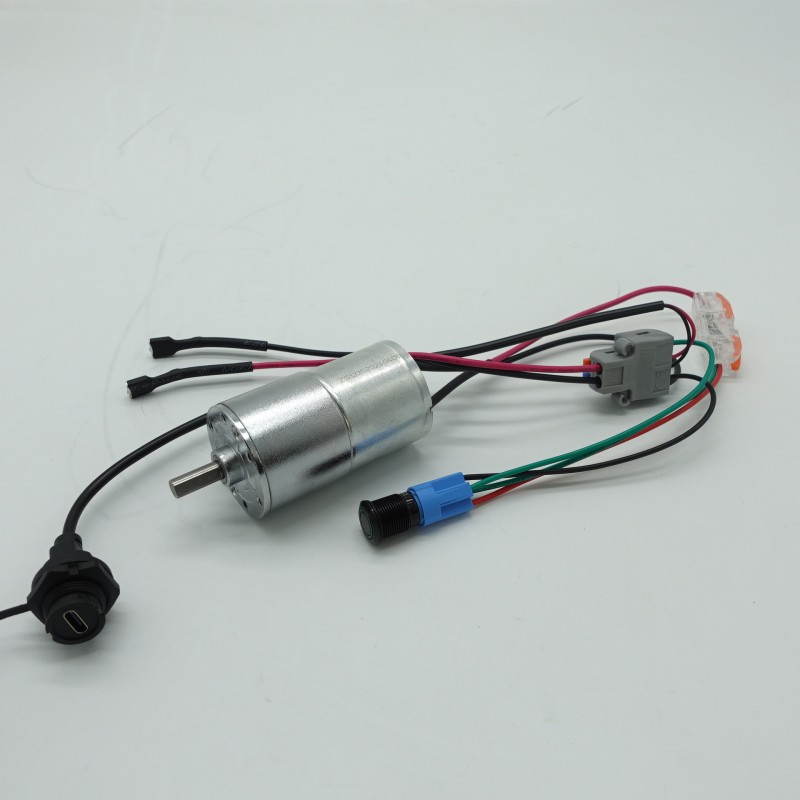

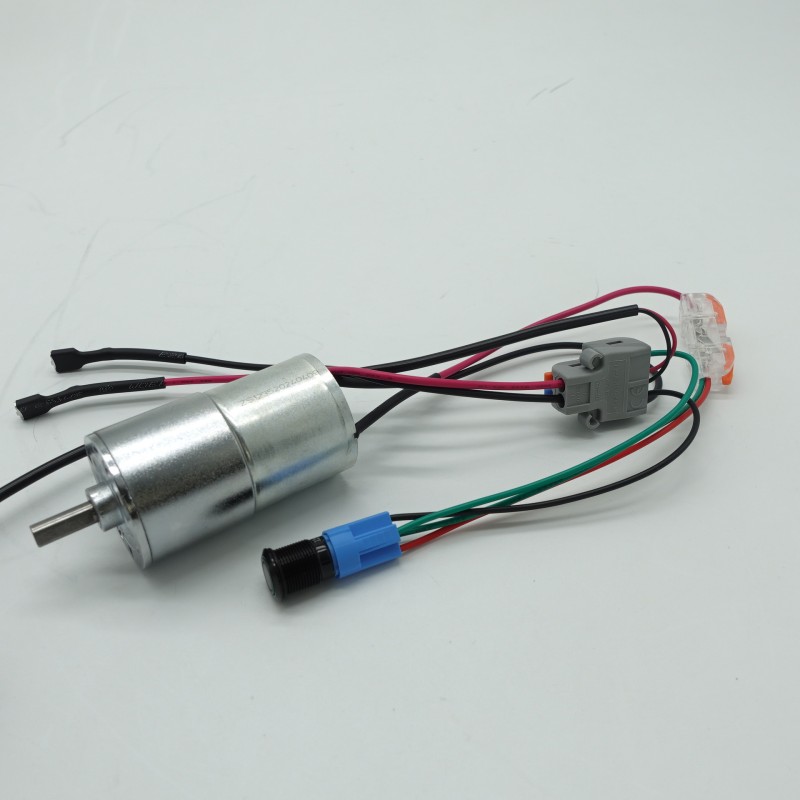

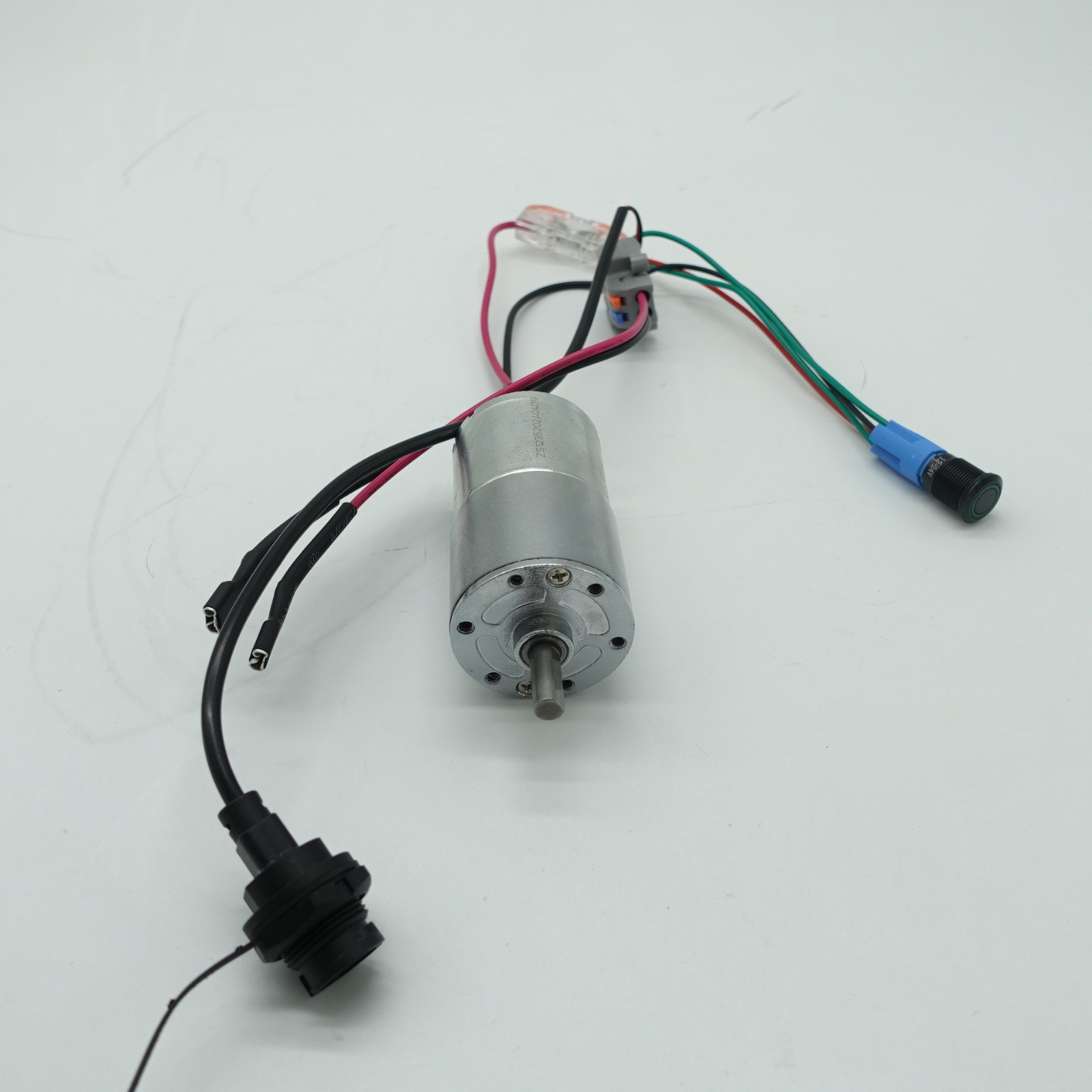

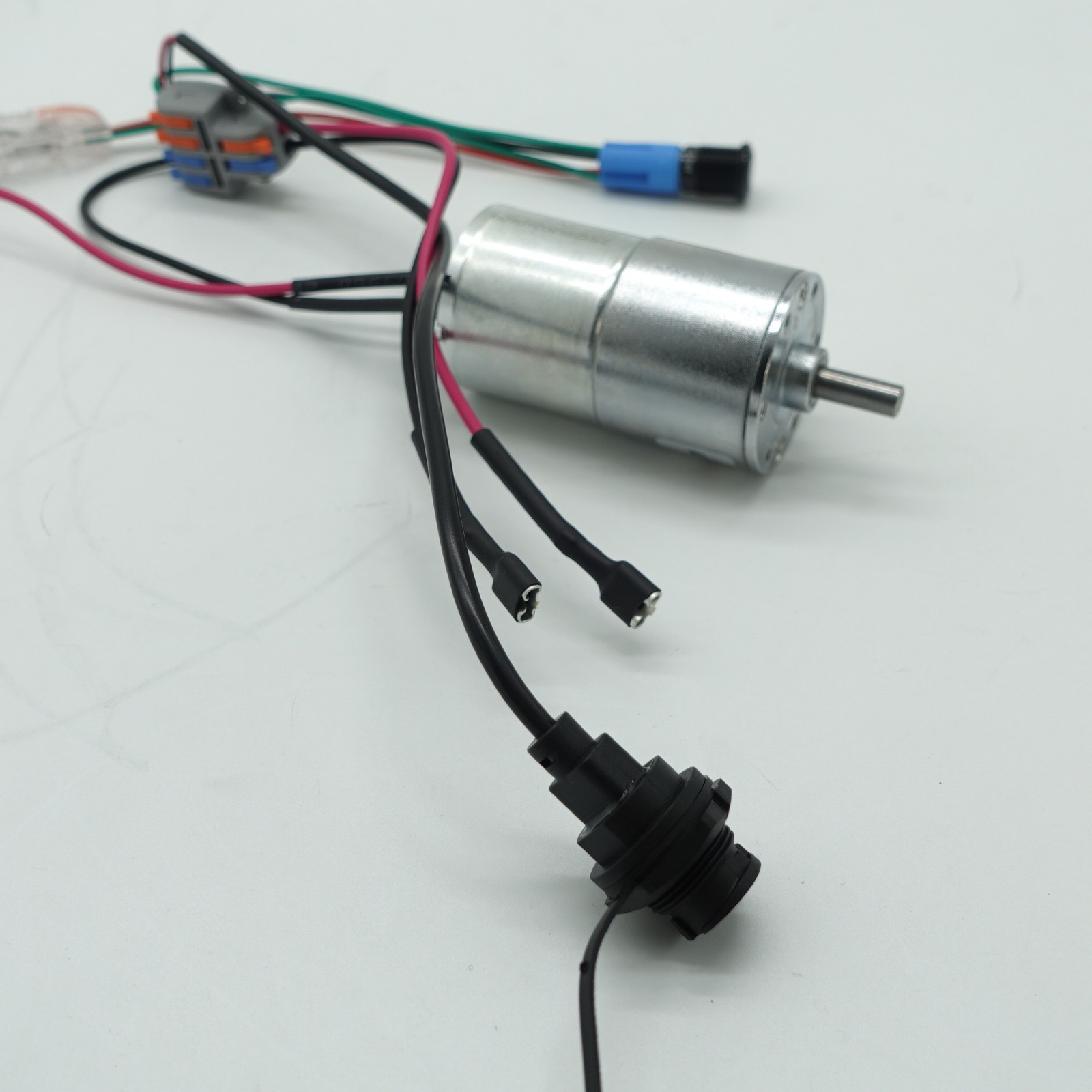

product display:

Our factory and production lines

FAQ

Q1:What are the key benefits of ordering custom dryer wire harnesses in bulk?

A:Ordering custom dryer wire harnesses in bulk offers several significant advantages for appliance manufacturers and OEMs:

• Cost Efficiency: Bulk production typically translates to lower per-unit costs due to economies of scale in material purchasing and optimized, high-volume manufacturing processes.

• Consistent Quality and Reliability: A single, controlled production run for a large order ensures uniform quality and performance across all wire harnesses. This consistency is crucial for maintaining the reliability and safety of your dryer models throughout their production lifecycle.

• Streamlined Supply Chain: Sourcing a critical component like a wire harness in large quantities simplifies your inventory management and reduces the administrative overhead associated with placing and tracking multiple small orders.

• Faster Production Cycles: With a reliable supply of harnesses on hand, you can support faster assembly lines for your dryers, reducing overall production lead times and helping you meet market demand more efficiently and responsively.

For manufacturers, bulk ordering of custom harnesses is a strategic decision that supports cost-effective, efficient, and high-quality appliance production.

Q2:What specifications are needed when requesting a bulk quote for a custom dryer wire harness?

A:To receive an accurate and competitive quote for a bulk custom dryer wire harness, you should provide potential suppliers with the following key specifications:

• Electrical Requirements: The operating voltage and current ratings (Amps) for different circuits (e.g., motor, heater, control system). Also, specify if any cables need shielding to protect sensitive signals from electromagnetic interference.

• Wire and Connector Details: Specify the wire gauges (AWG), insulation types (such as heat-resistant XLPE or PVC rated for high temperatures ), and the exact connector types and pinouts (e.g., Molex, JST) that interface with the dryer's motor, control board, heating element, and sensors .

• Environmental and Safety Standards: Define the operational environment, including exposure to high temperatures, moisture, and vibration. This determines the need for features like high-temperature insulation and connectors with secure locking mechanisms to prevent vibration-induced disconnection . Crucially, specify any required compliance with appliance safety standards (e.g., UL, IEC, including specific tests like the 750°C Glow-Wire Test per IEC 60335-1) .

• Physical Layout and Durability: Provide a routing diagram or description within the dryer's chassis, including lengths for each branch and locations of tie-down points. The harness must be designed to withstand the dryer's high-temperature environment and mechanical stress .

• Order Quantity and Target Price: Share your expected annual volume or specific order quantity, as this is critical for generating a bulk pricing model.

Providing a sample of an existing harness or the dryer's wiring schematic will enable manufacturers to deliver the most precise quote and solution.

Q3: How is quality control maintained in bulk production of custom dryer wire harnesses?

A: Ensuring consistent and reliable quality in bulk wire harness production for dryers is paramount and is achieved through a multi-layered approach:

• Certifications and Standards: Partner with manufacturers who hold relevant quality management certifications like ISO 9001 and who adhere to industry-accepted workmanship standards such as IPC/WHMA-A-620 .

• Incoming Material Inspection: Rigorous checks on all incoming raw materials—including wires, terminals, and connectors—are performed to verify they meet the specified standards and can withstand the dryer's high-temperature environment .

• In-Process Testing: Automated processes like crimping are continuously monitored for consistency. Key tests include continuity testing (to check for open or short circuits) and hipot (dielectric withstand) testing to verify the integrity of the insulation, which is critical for safety .

• Final Audit and Packaging: A random audit of finished products from the production batch is performed. Proper packaging is also part of quality assurance; recommendations include using vinyl strings for bundling (to avoid constant pressure from tight bands) and air packing to protect connectors from shock and deformation during transit, preventing damage that could affect performance .

A reputable manufacturer will have a robust Quality Management System to ensure every harness in a large batch is reliable, safe, and built to last.

Q4: What should we look for in a supplier for bulk custom dryer wire harnesses?

A: Selecting the right supplier is a critical decision. Key factors to consider include:

• Proven Appliance Industry Experience: Look for a supplier with a verifiable track record in producing wire harnesses for the home appliance industry, particularly for dryers or other high-temperature applications. This demonstrates an understanding of the specific challenges and requirements .

• Technical and Design Support: Choose a partner that offers engineering support and can provide valuable guidance on wire selection, connector choices, and Design for Manufacturability (DFM). This collaboration can optimize your harness for performance, cost, and durability in the harsh dryer environment .

• Manufacturing Capabilities and Scalability: Ensure the supplier has the production capacity and expertise to handle your bulk order without compromising on quality or delivery timelines. They should be able to scale production up or down to match your demand fluctuations.

• Comprehensive Quality Assurance: As outlined above, verify their commitment to quality through relevant certifications and a clear, transparent testing protocol for every production batch .

A supplier that excels in these areas becomes a strategic partner, contributing directly to the quality and success of your final product.

Q5: How can we reduce costs for bulk custom dryer wire harness orders without sacrificing quality?

A: Cost optimization for bulk orders is a key goal and can be achieved through strategic collaboration with your manufacturer, focusing on value engineering and process efficiency:

• Value Engineering (VE): Work closely with the supplier's engineering team to analyze the harness design. They may suggest using equivalent, high-quality connectors from their validated supply base or optimizing wire lengths and insulation types without compromising the electrical or safety performance in the dryer's operating environment .

• Leverage Supplier's Supply Chain: A good manufacturer will have established relationships with component suppliers. Leveraging their bulk purchasing power for terminals, wires, and connectors can help source reliable yet cost-competitive parts that still meet all necessary certifications .

• Optimize Production Processes: An experienced manufacturer will have efficient, often automated processes for cutting, stripping, and crimping that minimize material waste and labor costs. The efficiencies gained in a bulk order can be passed on as lower prices.

• Plan and Consolidate Orders: Accurate forecasting and placing consolidated bulk orders, rather than multiple small ones, reduces setup costs for the manufacturer and allows for better material planning, ultimately leading to a more favorable price.

The goal is to target and eliminate unnecessary costs, not to cut corners on quality. A reputable manufacturer will help you find this balance to deliver a harness that is both economical and reliably built for the demanding conditions inside a dryer.
