Dishwasher Wire Harness Custom Processing Source Supplier

Precision Dishwasher Wire Harness Solutions for Safe & Efficient Appliances

As smart home appliances continue to advance, the demand for safe and reliable electrical connections has never been greater. A well-engineered dishwasher wire harness is essential to ensuring the operational safety, performance, and longevity of modern automated cleaning systems.

At KeHan, we specialize in the design and manufacturing of high-quality, solution-oriented dishwasher wiring harnesses. Every harness we produce undergoes rigorous testing—including electrical continuity, load endurance, and insulation resistance checks—before it reaches the market. This commitment to validation ensures compliance with international safety standards and provides peace of mind for both manufacturers and end-users.

With over 20 years of industry experience, we have built a strong foundation in appliance component selection and custom wiring harness production. Our technical expertise has enabled us to establish trusted partnerships with leading global brands such as GE, Whirlpool, and Frigidaire.

We provide:

• Custom-designed harnesses tailored to specific dishwasher models

• High-temperature and moisture-resistant materials

• Connectors that ensure secure and stable power delivery

• Full compliance with appliance safety certifications

Partner with KeHan for reliable, safety-compliant wiring solutions that support the next generation of intelligent home appliances. Contact us today to discuss your custom dishwasher wire harness needs.

Key Features & Benefits:

• High-Conductivity Conductors: Utilizing 99.99% oxygen-free copper for high purity, low resistance, anti-aging properties, and extended service life. This ensures minimal energy loss, reduced heat generation, and superior current load capacity.

• Durable Insulation & Sheathing: Made from environmental protection high-strength PVC or neoprene, offering excellent abrasion resistance, tensile strength, corrosion resistance, waterproofing, flame retardancy, oil resistance, and weather ability. Ideal for both indoor and outdoor use, even in harsh or moving environments.

• Stringent Quality Control: Guarantees uniform thickness of insulation and sheath with very low eccentricity. Each harness undergoes high-voltage testing to ensure no breakdowns, providing ultimate safety and reliability.

• Available Configurations: Choose from sheath colors including all black, white inner with orange outer, white inner with black outer, or white inner with blue outer.

• Certifications & Testing: Our products comply with CCC, CE, ISO9001:2008, and ROHS standards. They have passed third-party tests for high-temperature resistance (105°C), low-temperature resistance (-40°C), and flame retardancy.

• Common Specifications: Available in cross-sections from 10mm² to 120mm² (10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm) to meet diverse power requirements.

Applications: Perfect for use as welding cable, torch wire, welding machine wire, battery cables, power leads for cutting tools, and grounding applications.

Request a free quote for your custom wiring harness needs and experience the difference in quality and performance!

Specification

Customizing the wiring harness only requires four steps!

1:Please provide your design drawings, specifications, or samples.

2:We will review the drawings and provide you with the most competitive quote.

3:Upon your confirmation of the drawings and price, we can proceed with mass production or provide you with a sample first to ensure quality.

4:Finally, we will carefully package and ship your order promptly via the fastest available method.

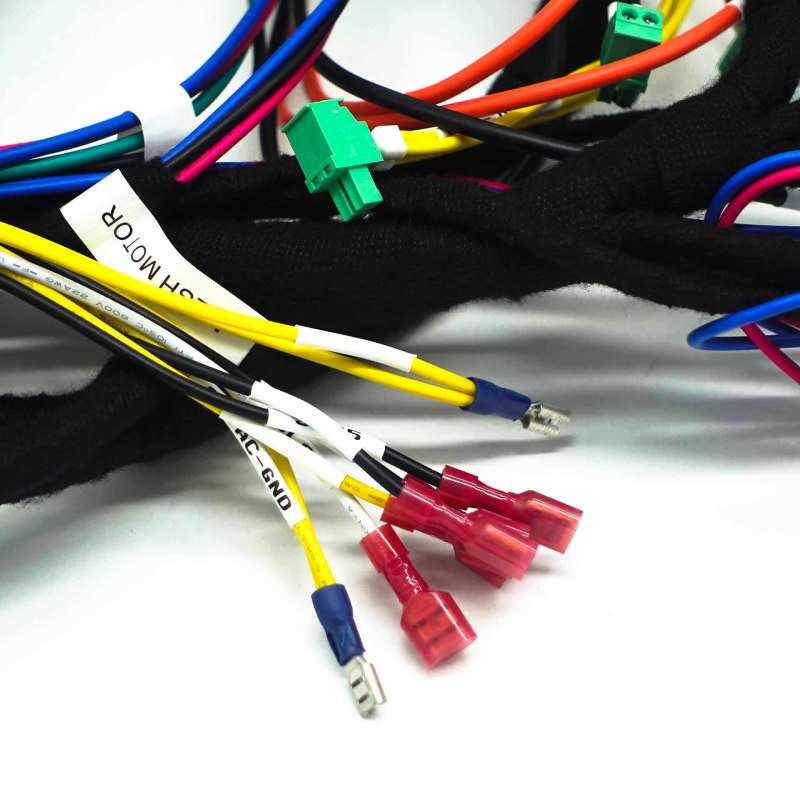

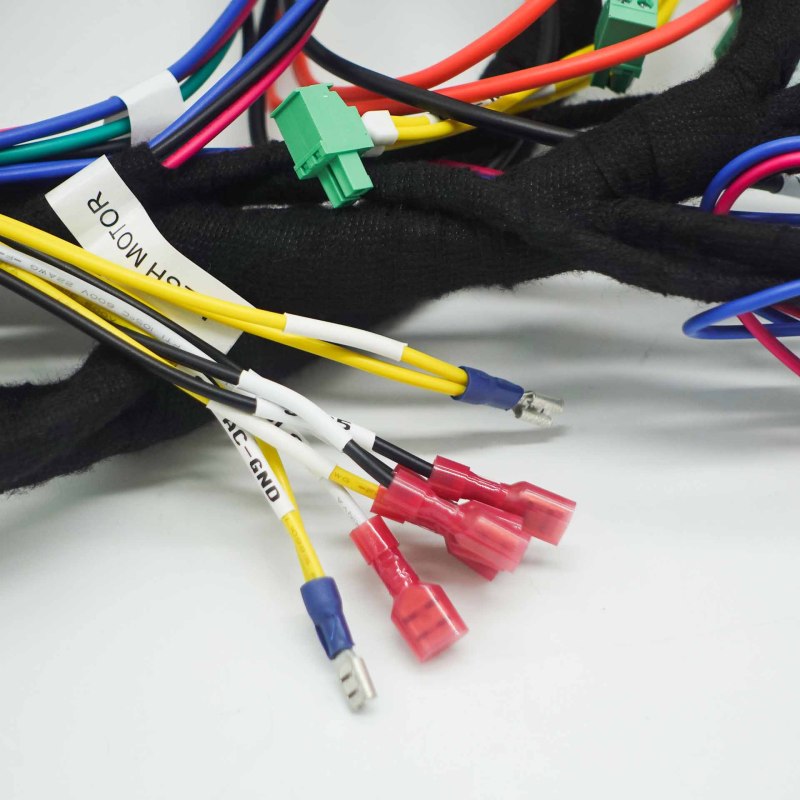

product display:

Our factory and production lines

FAQ

Q1:What are the advantages of ordering custom dishwasher wire harnesses in bulk?

A:Ordering custom dishwasher wire harnesses in bulk offers several significant advantages for appliance manufacturers and OEMs:

• Cost Efficiency: Bulk production typically translates to lower per-unit costs due to economies of scale in material purchasing and optimized manufacturing processes.

• Consistency and Reliability: A single production run for a large order ensures consistent quality and performance across all wire harnesses, which is crucial for maintaining the reliability of your dishwasher models .

• Simplified Supply Chain: Sourcing a key component like a wire harness in large quantities streamlines your inventory management and reduces the administrative overhead of multiple small orders.

• Faster Production Cycles: With harnesses available in quantity, you can support faster assembly lines for your dishwashers, reducing lead times and helping you meet market demand more effectively.

For manufacturers, bulk ordering of custom harnesses is a strategic decision that supports cost-effective, efficient, and high-quality appliance production.

Q2:What specifications are needed for a bulk quote on custom dishwasher wire harnesses?

A:To receive an accurate quote for a bulk custom dishwasher wire harness, provide manufacturers with the following specifications:

• Electrical Requirements: The operating voltage (e.g., 120V), current ratings (Amps), and any need for shielded cables to protect against electromagnetic interference.

• Wire and Connector Details: Specify the wire gauges (AWG), insulation types (such as heat-resistant PVC or XLPE), and the exact connector types and pinouts (e.g., JST, Molex) that interface with the dishwasher's control board, pump, and sensors .

• Environmental and Safety Standards: Define the operating environment, including exposure to moisture, heat, and vibration. This determines the need for features like waterproofing (IP ratings) . Also, specify required compliance with appliance safety standards (e.g., UL, IEC) .

• Physical Layout: Provide a routing diagram or description within the dishwasher chassis, including lengths for each branch and locations of tie-down points.

• Order Quantity and Target Price: Share your expected annual volume or order quantity, which is critical for a bulk pricing model.

Providing a sample of the existing harness or the dishwasher's wiring schematic will enable manufacturers to deliver the most precise quote and solution

Q3:How do you ensure quality control in bulk wire harness production for dishwashers?

A:Ensuring quality in bulk wire harness production is paramount and is achieved through a multi-layered approach:

• Certifications and Standards: Partner with manufacturers who hold relevant certifications like IATF 16949, ISO 9001, and UL listing, and who adhere to the IPC/WHMA-A-620 standard, which is the industry benchmark for wire harness acceptance .

• Incoming Material Inspection: Rigorous checks on all incoming raw materials, including wires, terminals, and connectors, verify they meet specified standards.

• In-Process Testing: Automated processes like crimping are monitored for consistency. Key tests include continuity testing (to check for open or short circuits) and hipot (dielectric withstand) testing to verify insulation integrity .

• Final Audit and Packaging: A random audit of finished products from the batch is performed. Proper packaging, such as using vinyl strings for bundling and air packing to protect connectors, is also part of quality assurance to prevent damage in transit .

A reputable manufacturer will have a robust Quality Management System to ensure every harness in a large batch is reliable and safe.

Q4：What should we look for in a supplier for bulk custom dishwasher wire harnesses?

A:Selecting the right supplier is critical. Key factors to consider include:

• Proven Industry Experience: Look for a supplier with a track record in producing wire harnesses for the home appliance industry, demonstrating an understanding of its specific requirements .

• Technical and Design Support: Choose a partner that offers engineering support and can provide valuable guidance on wire selection, connector choices, and Design for Manufacturability (DFM) to optimize your harness for performance and cost .

• Manufacturing Capabilities and Scalability: Ensure the supplier has the capacity to handle your bulk order without compromising quality or delivery timelines. They should be able to scale production up or down to match your needs .

• Comprehensive Quality Assurance: As mentioned above, verify their commitment to quality through relevant certifications and a clear, transparent testing protocol .

A supplier that excels in these areas becomes a strategic partner, not just a vendor.

Q5：How can we reduce costs for bulk dishwasher wire harness orders without sacrificing quality?

A:Cost optimization for bulk orders involves strategic collaboration with your manufacturer:

• Value Engineering: Work with the supplier's engineers to analyze the design. They may suggest using equivalent but more cost-effective connectors or optimizing wire lengths and types without affecting performance .

• Component Sourcing Leverage: Leverage the manufacturer's established supply chain and bulk purchasing power for components like terminals and wires to source competitive yet certified parts .

• Optimize Production Processes: An experienced manufacturer will have efficient, automated processes for cutting, stripping, and crimping that minimize waste and labor costs, benefits that are passed on in bulk orders.

• Plan and Consolidate Orders: Forecast your needs accurately and place consolidated bulk orders instead of multiple small ones. This reduces setup costs for the manufacturer and allows for better material planning, leading to lower prices.

The goal is to target unnecessary costs, not quality. A good manufacturer will help you find this balance.

I hope these questions and answers provide a solid foundation for your content. If you need to focus on another specific aspect, feel free to ask.
