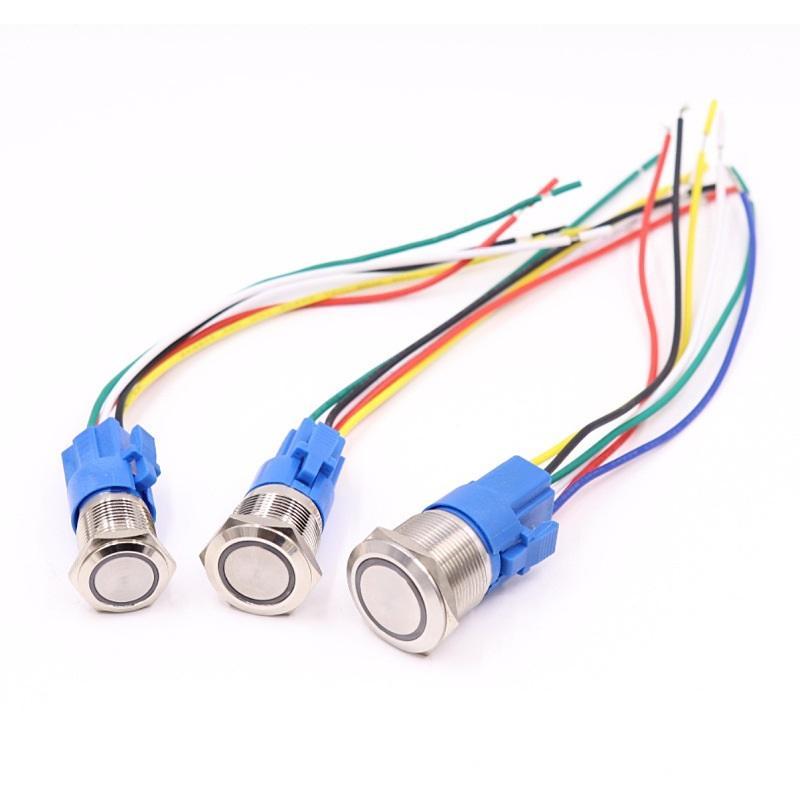

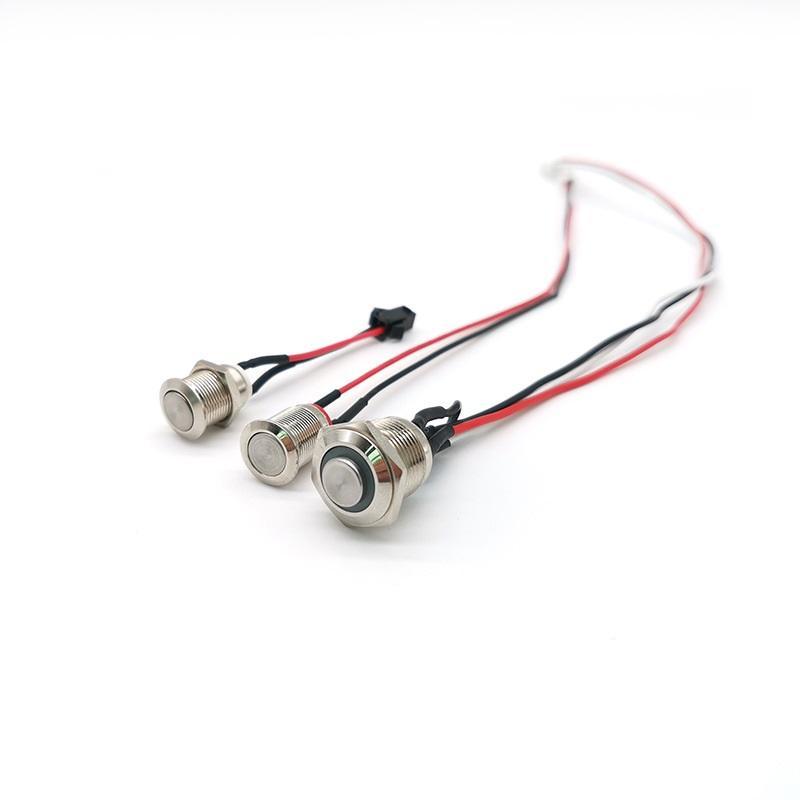

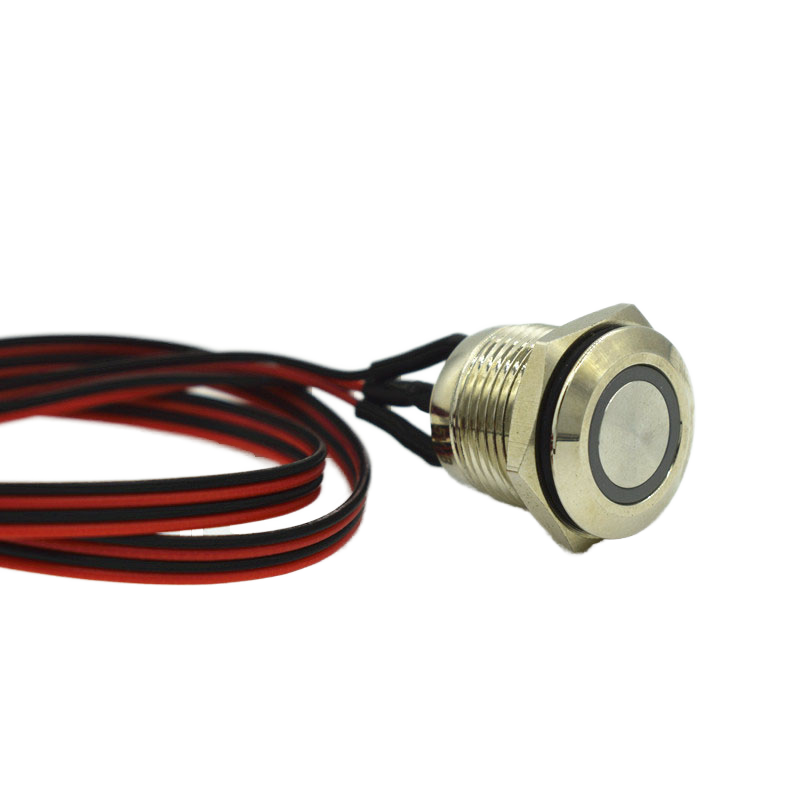

Customized Switch Button Cable Wiring Harness Plastic PVC/PTFE for Electronics Computers Wire Injection
Customized Design
Supports custom wire gauge (AWG), cable length, color coding, connectors, terminals, and switch button integration.
PVC / PTFE Insulation Options
PVC for cost-effective general electronics; PTFE for high-temperature, high-frequency, and harsh environments.
Precision Wire Injection Molding
Provides strong strain relief, improved insulation, and enhanced durability at connection points.
Stable Electrical Performance
Low resistance, reliable signal transmission, and consistent power delivery.
High Mechanical Strength
Resistant to bending, abrasion, and vibration.
Strict Quality Control
100% continuity testing and electrical performance inspection before shipment.
- Information
Customized Switch Button Cable Wiring Harness Plastic PVC/PTFE for Electronics Computers Wire Injection
Our Customized Switch Button Cable Wiring Harness is designed for reliable signal and power transmission in electronic and computer applications. Manufactured with high-quality PVC or PTFE insulated wires and precision wire injection molding, this harness ensures excellent electrical performance, mechanical strength, and long-term durability.
The wiring harness can be fully customized to meet specific application requirements, including switch type, wire length, conductor size, connector configuration, and overmolding structure. It is widely used in control panels, computer systems, electronic devices, and industrial equipment.
We specialize in manufacturing high-performance JST cable assemblies, including popular JST PH cable assembly (2.0mm pitch, 2A current rating) and robust JST XH cable assembly (2.5mm pitch, 3A current rating) solutions. Our cable assembly JST connector products are engineered for durability, precise mating, and optimal signal transmission in applications such as consumer electronics, industrial automation, LED lighting, and robotics.
Why Choose Us
Deep Customization
We have a large number of customized products and professional designers to provide you with quality service, which can meet your special customization needs as well as your specified materials and configurations
Quality
We supply high-quality cable and wire assemblies; we use the best materials, manufacturing processes and testing equipment. Each product is 100% inspected before shipping to ensure that our products meet the highest standards
Excellent service
1.We have senior engineers to provide you with CAD drawings, so you can rest assured that customized
2.We have 8 salespersons to serve you in order to reply your message and understand your customized needs in time.
3.We will give you a sample before mass production so that you can determine whether to meet your requirements, so that you have no worries!
We have advanced equipment and a manufacturing team consists of experienced consists workers,they guarantee the quality of the standsproduct.consistsworkers. They guarantee the consists
OEM/ODM
Quality Controlwe are CE UL |SO certified and every product is inspected before it leaves the factory.
Our after-sales service team is always stands by to help you solve any problem.
Applications
Electronic control panels
Computers and peripherals
Switch buttons and key modules
Consumer electronics
Industrial control equipment
Materials & Specifications
Insulation Material: PVC / PTFE (optional)
Conductor: Copper / Tinned copper (optional)
Processing: Cutting, crimping, soldering, wire injection overmolding
Operating Temperature: Customizable based on material selection
Compliance: RoHS & REACH compliant
As experts in cable assemblies JST customization, we offer:
Full compatibility with JST PH, XH, and other series connectors
Custom wire lengths, colors, and shielding options
Rigorous electrical testing and quality validation
All assemblies feature precision-crimped contacts, strain relief, and RoHS-compliant materials to ensure reliability in demanding environments.
Elevate your electronics with certified JST solutions—request a free sample or custom quote today!
Specification
| Wire Size | 2AWG-32AWG, 0.01mm²-50mm² are available |
| Wire Cores | 1 Core~50 cores are available |
| Conductor | 100% Copper |
| Rate Temperature | 80℃, 105℃, 125℃, 180℃, 220℃, 300℃ (176°F- 572°F) |
| Certification | UL, VDE, CE 3C or Customize Special Cables |
| Raw materials | All parts and processing is compliant with ROHS, CCC |
| Application | Electronics, intelligent robots, lighting, new energy, intelligent appliances |
| Testing | 100% electrical performance tested before delivery. |
Key Features & Benefits:
High-Conductivity Conductors: Utilizing 99.99% oxygen-free copper for high purity, low resistance, anti-aging properties, and extended service life. This ensures minimal energy loss, reduced heat generation, and superior current load capacity.
Durable Insulation & Sheathing: Made from environmental protection high-strength PVC or neoprene, offering excellent abrasion resistance, tensile strength, corrosion resistance, waterproofing, flame retardancy, oil resistance, and weather ability. Ideal for both indoor and outdoor use, even in harsh or moving environments.
Stringent Quality Control: Guarantees uniform thickness of insulation and sheath with very low eccentricity. Each harness undergoes high-voltage testing to ensure no breakdowns, providing ultimate safety and reliability.
Available Configurations: Choose from sheath colors including all black, white inner with orange outer, white inner with black outer, or white inner with blue outer.
Certifications & Testing: Our products comply with CCC, CE, ISO9001:2008, and ROHS standards. They have passed third-party tests for high-temperature resistance (105°C), low-temperature resistance (-40°C), and flame retardancy.
Common Specifications: Available in cross-sections from 10mm² to 120mm² (1
0mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm) to meet diverse power requirements.

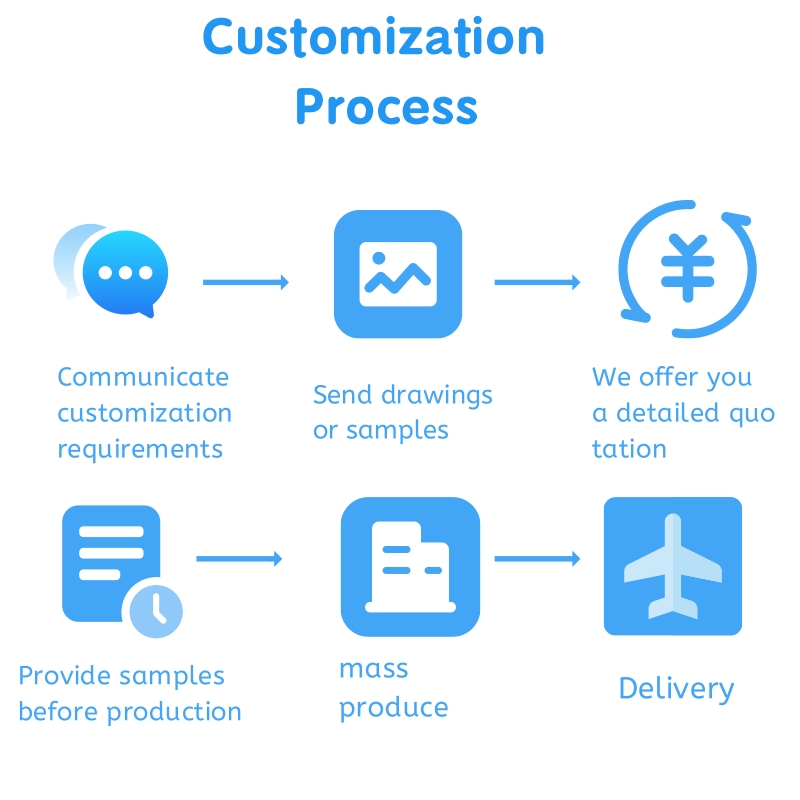

Customizing the wiring harness only requires four steps!
1:Please provide your design drawings, specifications, or samples.
2:We will review the drawings and provide you with the most competitive quote.
3:Upon your confirmation of the drawings and price, we can proceed with mass production or provide you with a sample first to ensure quality.
4:Finally, we will carefully package and ship your order promptly via the fastest available method.

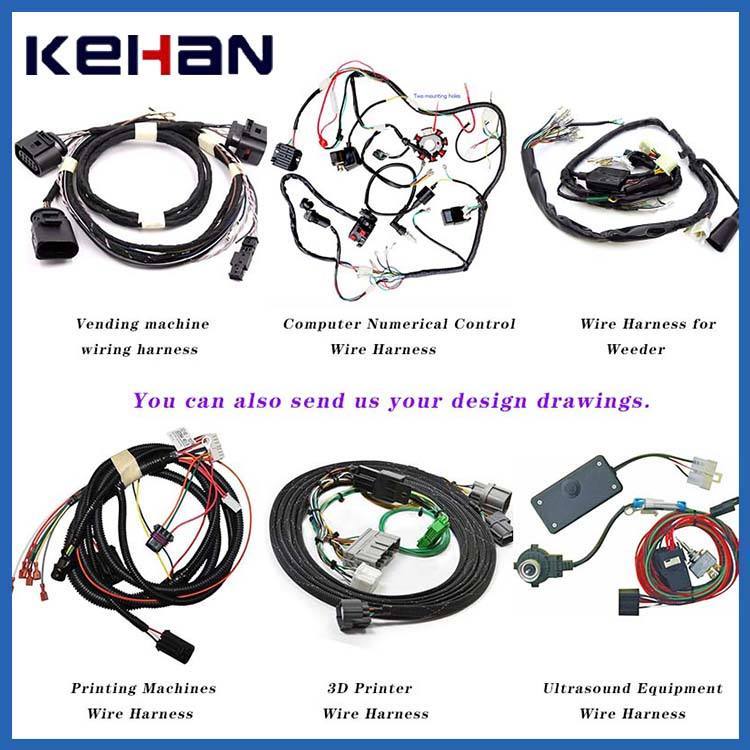

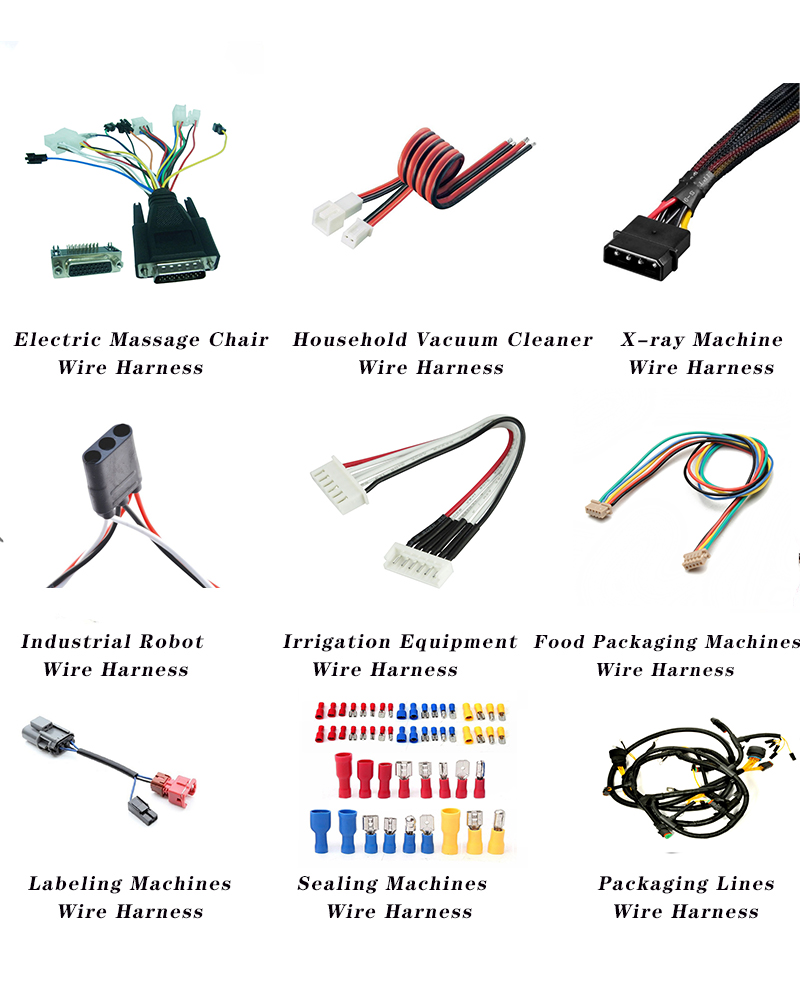

Product Display:

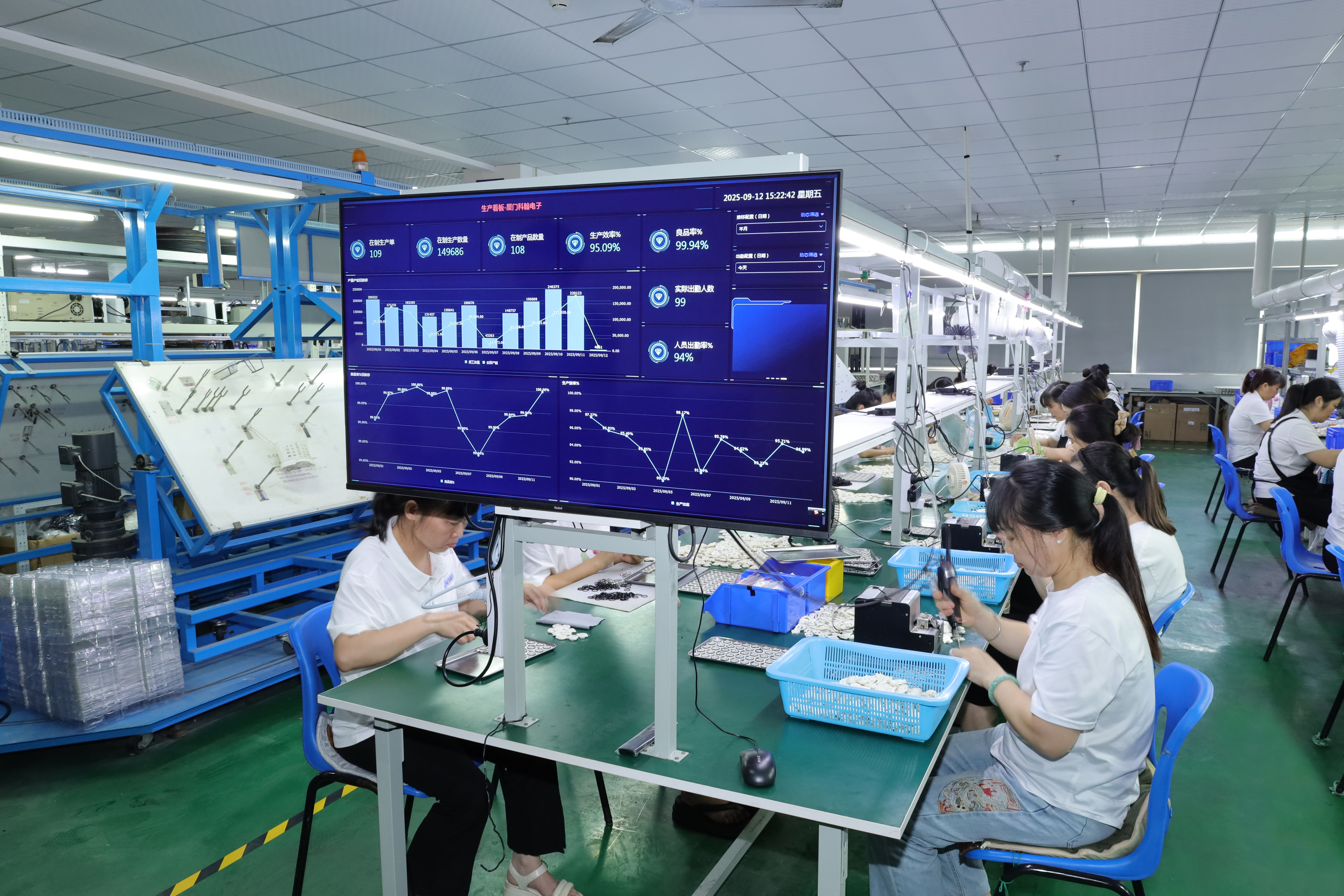

Our factory and production lines
FAQ
Q1:What are the different types of wire harnesses?
A:Some of the most popularly used wire harnesses are flat harnesses, ribbon harnesses, EMI shielded harnesses, RF harnesses, airborne looms, and military looms.
Q2:What is a wire harness?
A:A wire harness, also known as a cable harness or wiring assembly, is a structured set of wires, cables, and connectors bundled together into a single unit. Its primary purpose is to transmit electrical power and signals efficiently. By binding multiple cables with materials like conduit, tape, or sleeves, it simplifies installation, improves organization, and protects the components from abrasion, moisture, and heat. This crucial component is used to provide reliable connectivity and streamlined manufacturing in countless industries, including automotive, aerospace, industrial machinery, and consumer electronics.
Q3:Who makes the best wiring harness?
A:Of course, it's Xiamen Kehan Electronics Co., Ltd. - one of the best wire harness suppliers in China.
