Custom OEM Medical Wire Harness for Diagnostic & Surgical Devices

Precision Medical Cable Assemblies for Critical Healthcare Applications

As a specialized Medical Cable Assemblies manufacturering expert and custom Medical wire harness factory, we deliver mission-critical connectivity solutions that meet the stringent requirements of modern healthcare technology. Our Medical Wire and Cable Harness products are engineered for diagnostic imaging, patient monitoring, surgical robotics, and therapeutic equipment, ensuring unparalleled reliability in clinical environments.

We manufacture ISO 13485 and FDA-compliant Medical wire harness systems using biocompatible materials, medical-grade connectors, and advanced shielding technologies. Each harness is rigorously tested for electrical safety, EMI/RFI immunity, and resistance to repeated sterilization processes including autoclaving and chemical disinfectants.

Our capabilities include:

• Custom Medical Cable Assemblies for ventilators, ultrasound machines, and lab analyzers

• IP67/68 rated and shielded configurations

• End-to-end OEM support from design to volume production

Trusted by leading medical device brands—request your compliant sample and design consultation today!

Key Features & Benefits:

• High-Conductivity Conductors: Utilizing 99.99% oxygen-free copper for high purity, low resistance, anti-aging properties, and extended service life. This ensures minimal energy loss, reduced heat generation, and superior current load capacity.

• Durable Insulation & Sheathing: Made from environmental protection high-strength PVC or neoprene, offering excellent abrasion resistance, tensile strength, corrosion resistance, waterproofing, flame retardancy, oil resistance, and weather ability. Ideal for both indoor and outdoor use, even in harsh or moving environments.

• Stringent Quality Control: Guarantees uniform thickness of insulation and sheath with very low eccentricity. Each harness undergoes high-voltage testing to ensure no breakdowns, providing ultimate safety and reliability.

• Available Configurations: Choose from sheath colors including all black, white inner with orange outer, white inner with black outer, or white inner with blue outer.

• Certifications & Testing: Our products comply with CCC, CE, ISO9001:2008, and ROHS standards. They have passed third-party tests for high-temperature resistance (105°C), low-temperature resistance (-40°C), and flame retardancy.

• Common Specifications: Available in cross-sections from 10mm² to 120mm² (10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm) to meet diverse power requirements.

Applications: Perfect for use as welding cable, torch wire, welding machine wire, battery cables, power leads for cutting tools, and grounding applications.

Request a free quote for your custom wiring harness needs and experience the difference in quality and performance!

Specification

Customizing the wiring harness only requires four steps!

1:Please provide your design drawings, specifications, or samples.

2:We will review the drawings and provide you with the most competitive quote.

3:Upon your confirmation of the drawings and price, we can proceed with mass production or provide you with a sample first to ensure quality.

4:Finally, we will carefully package and ship your order promptly via the fastest available method.

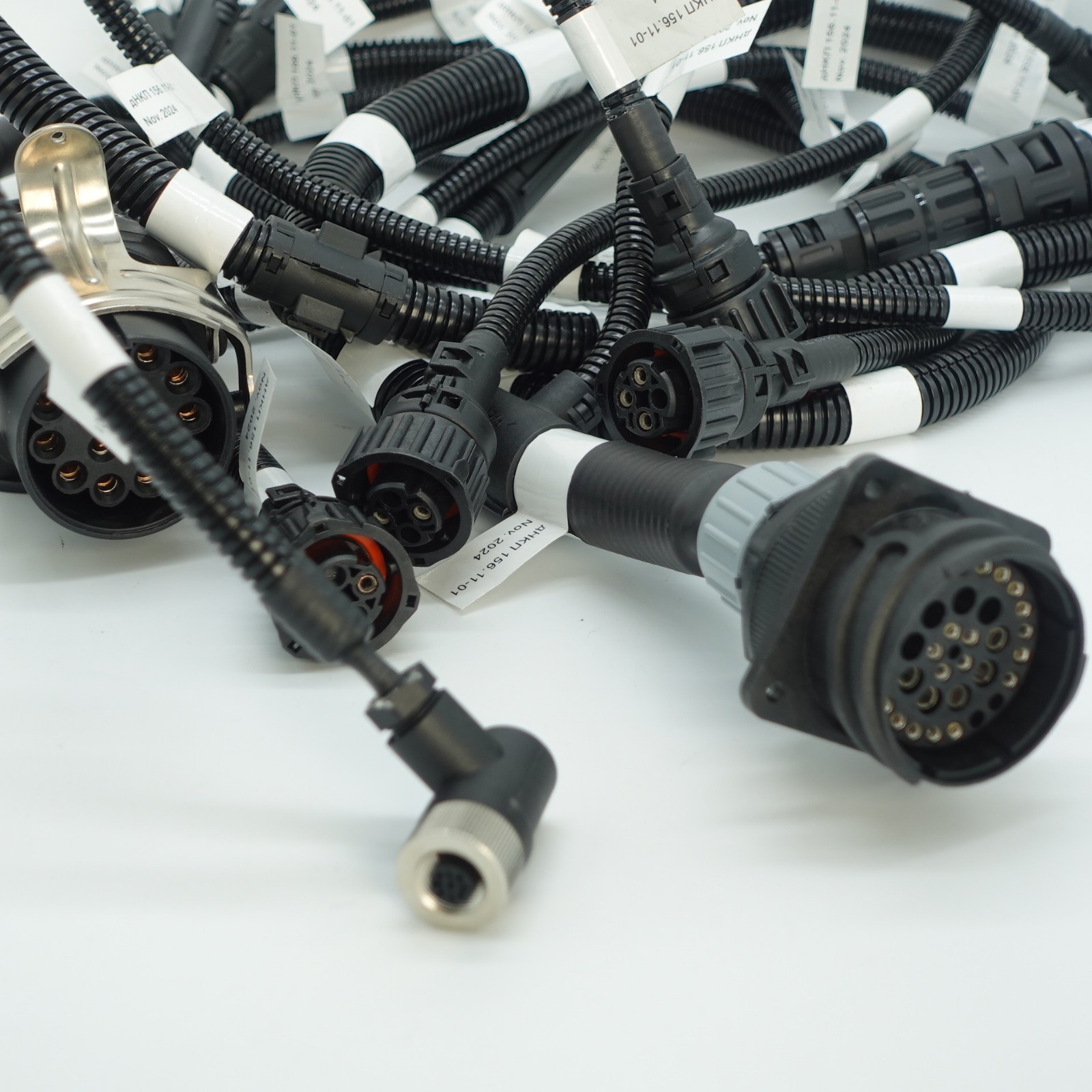

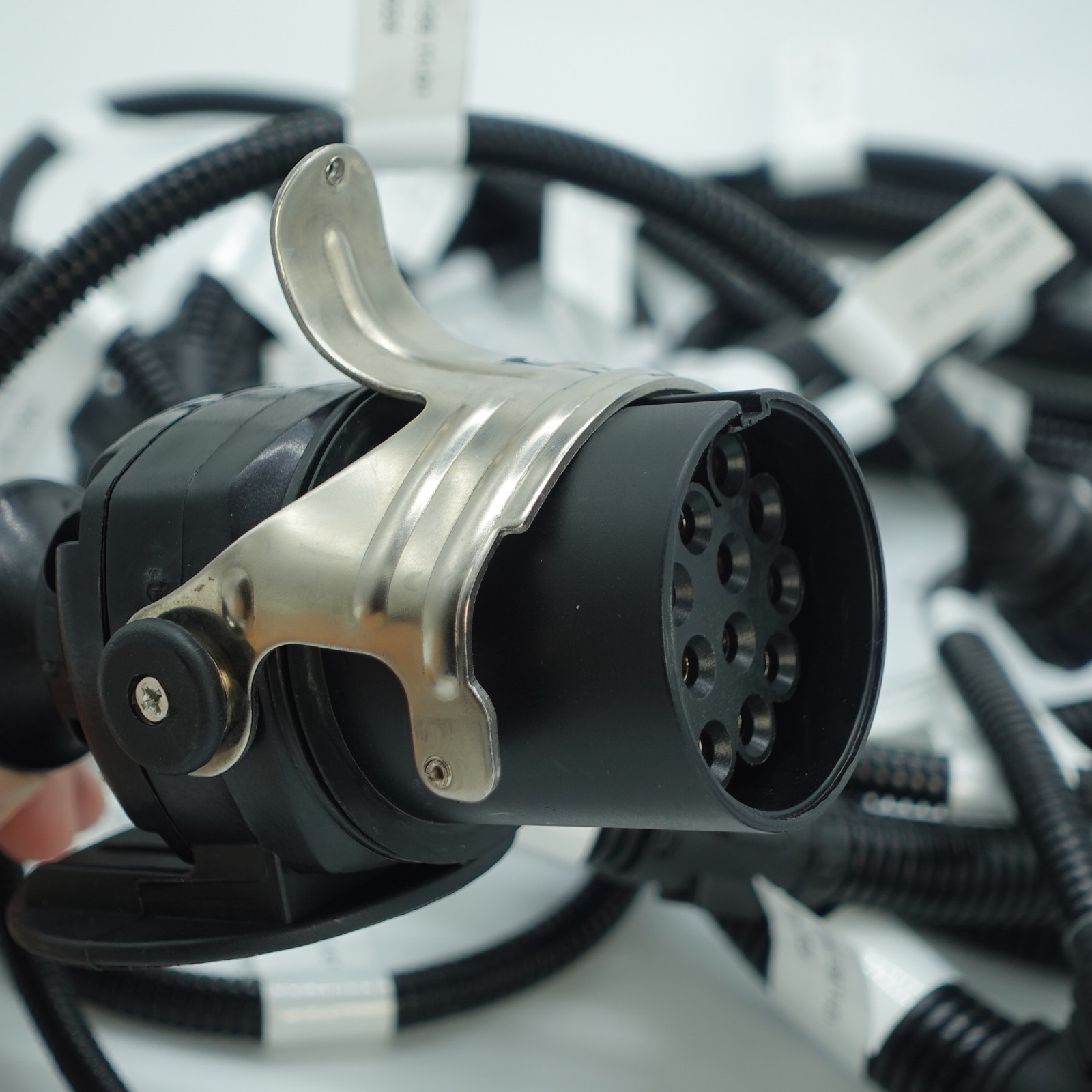

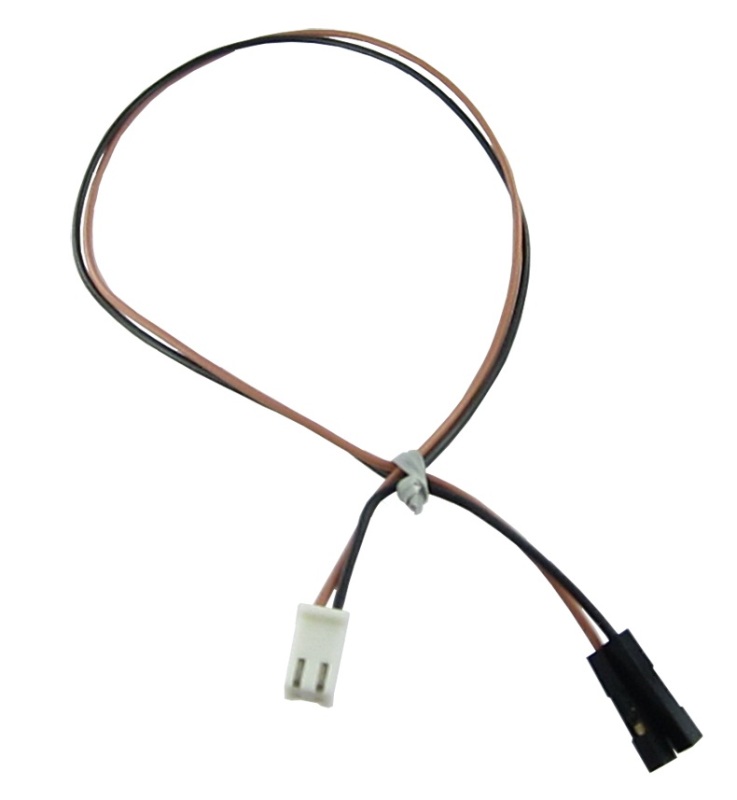

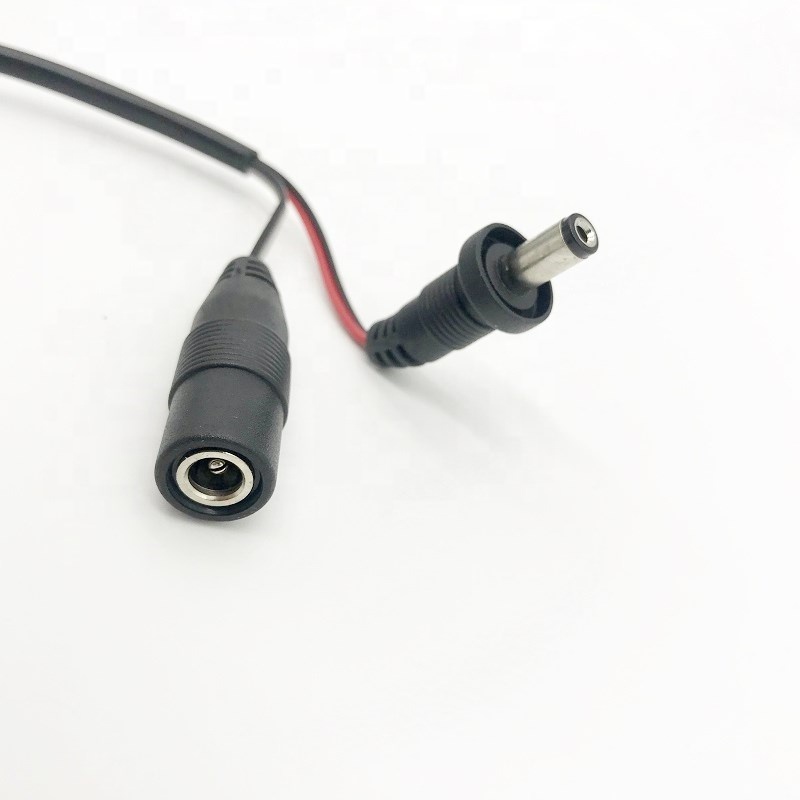

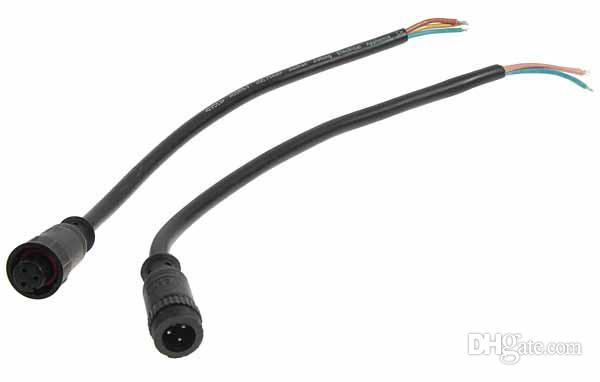

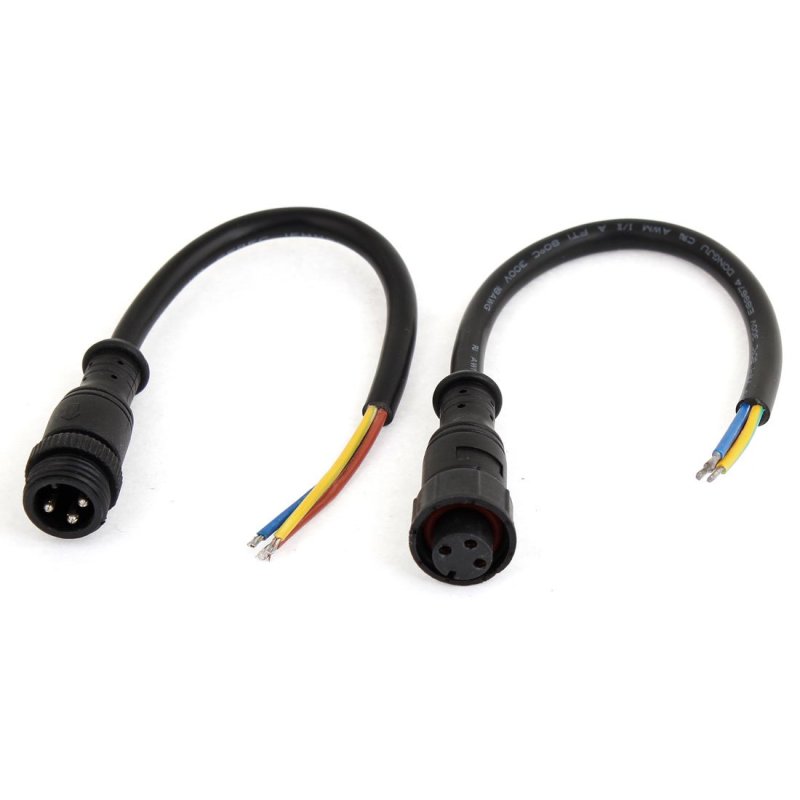

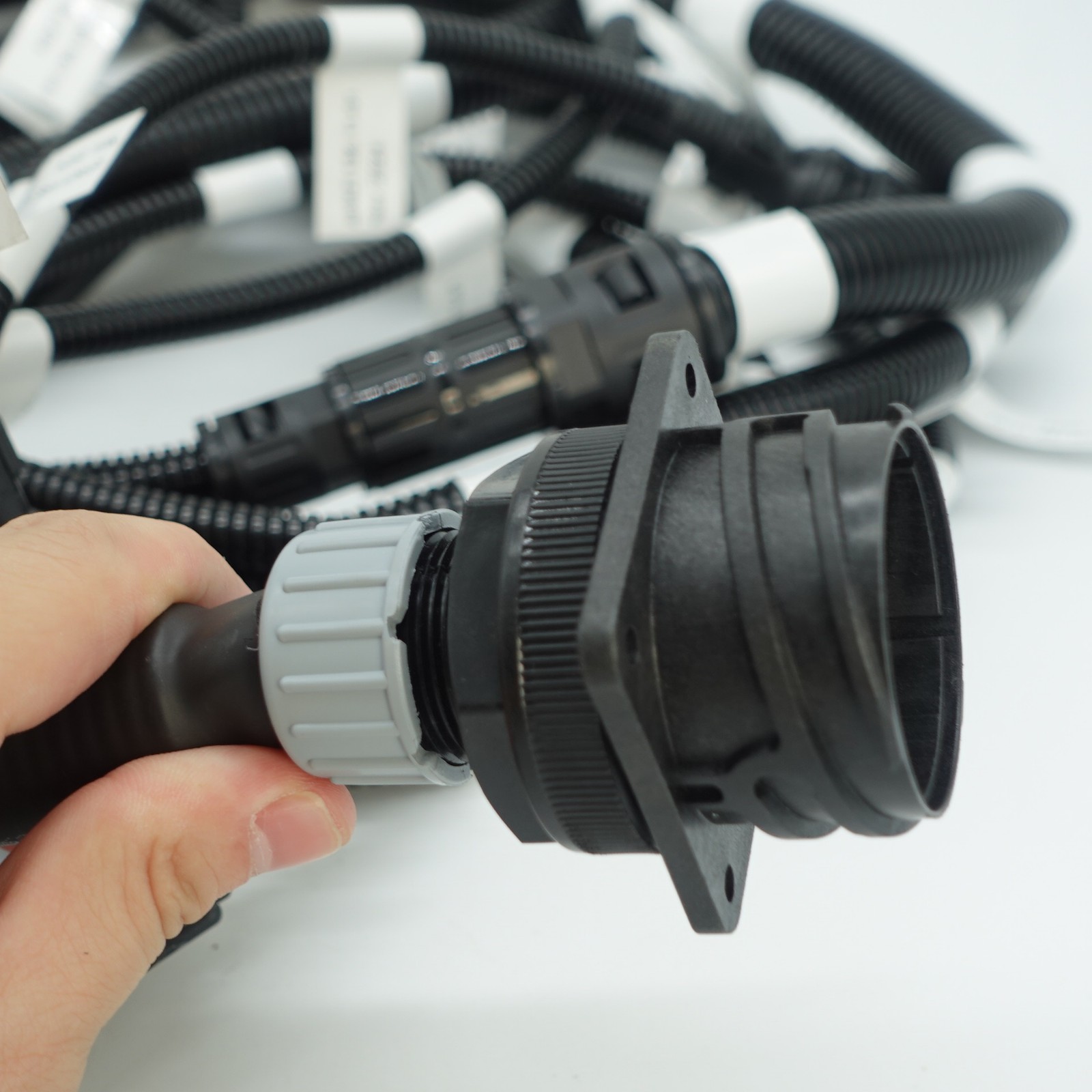

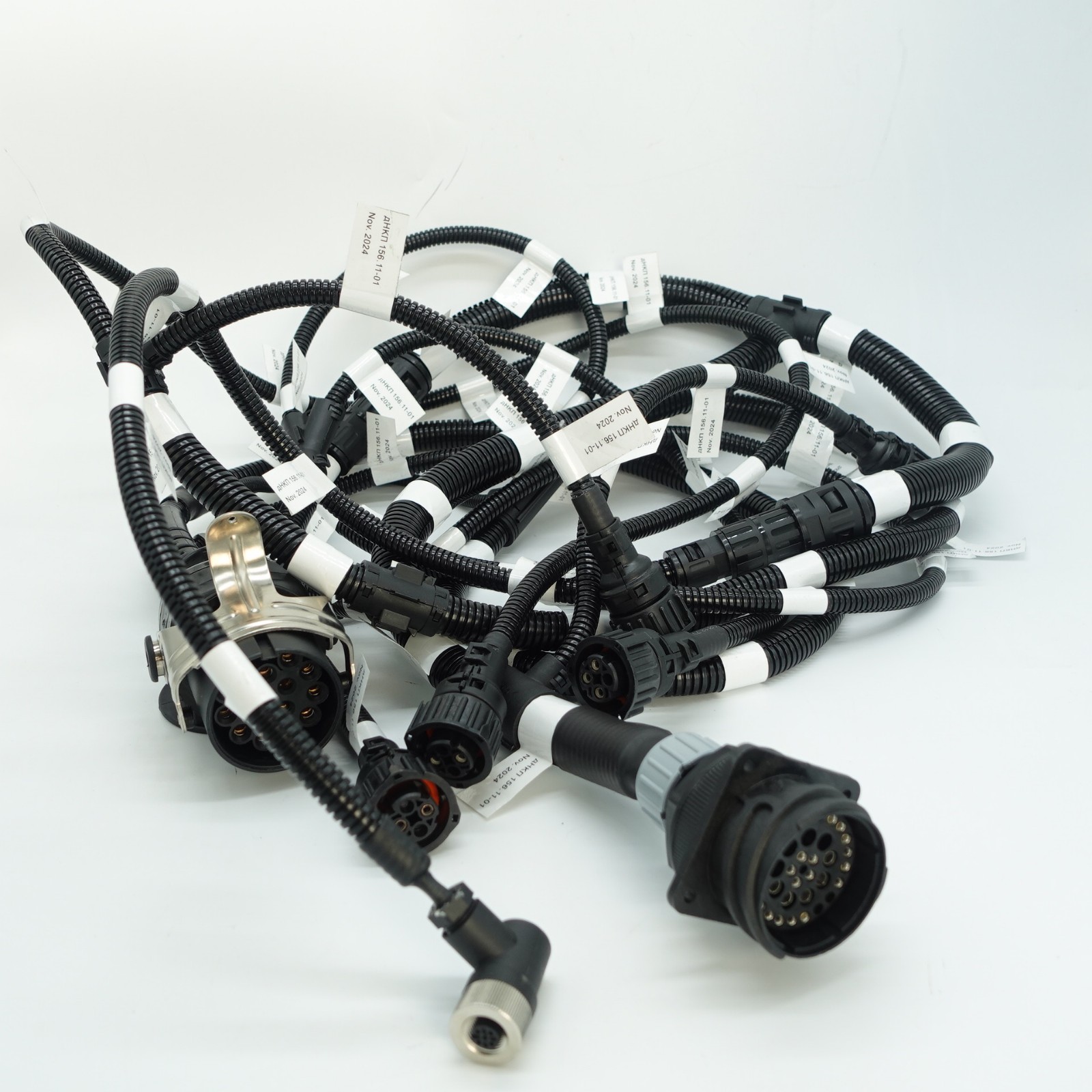

product display:

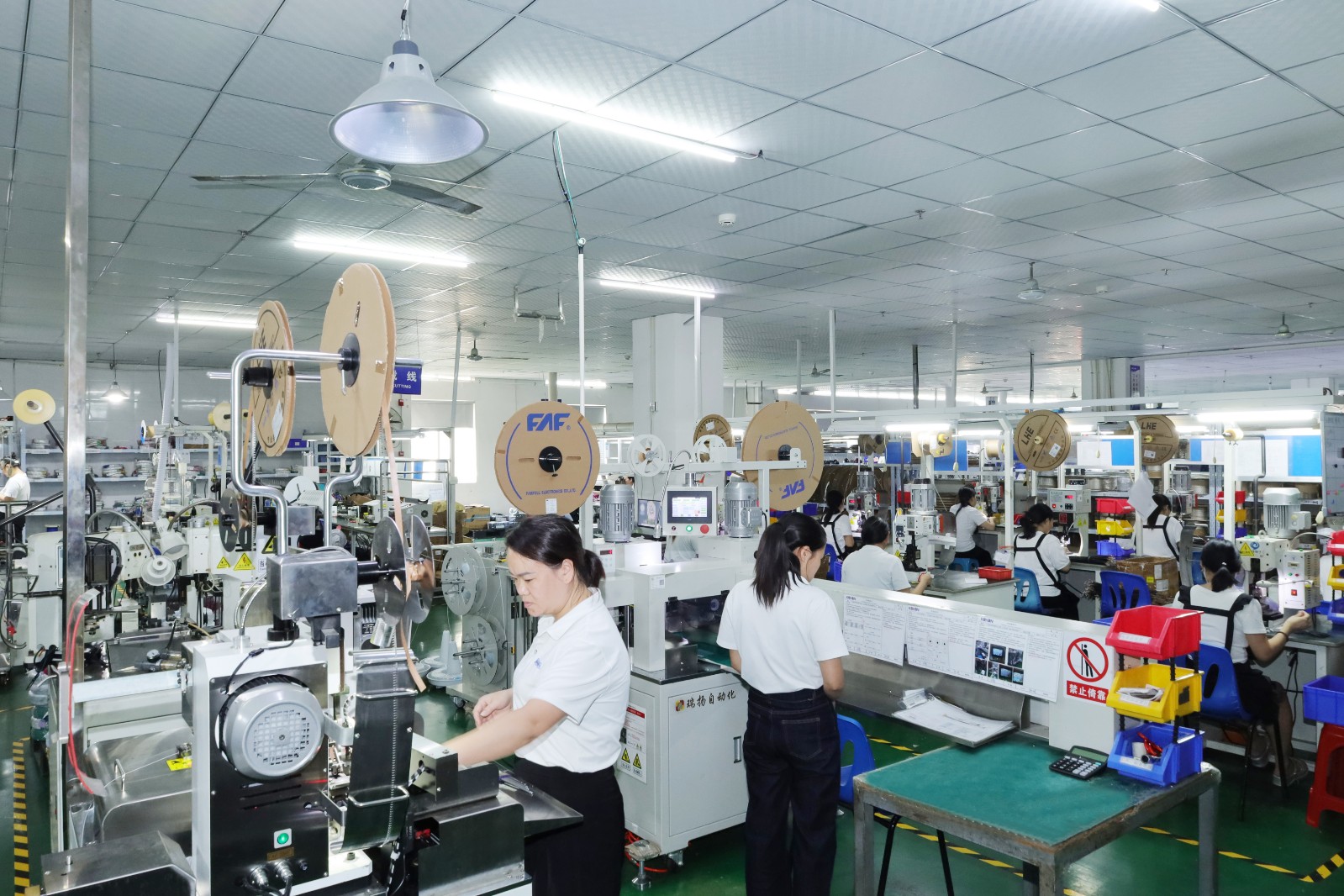

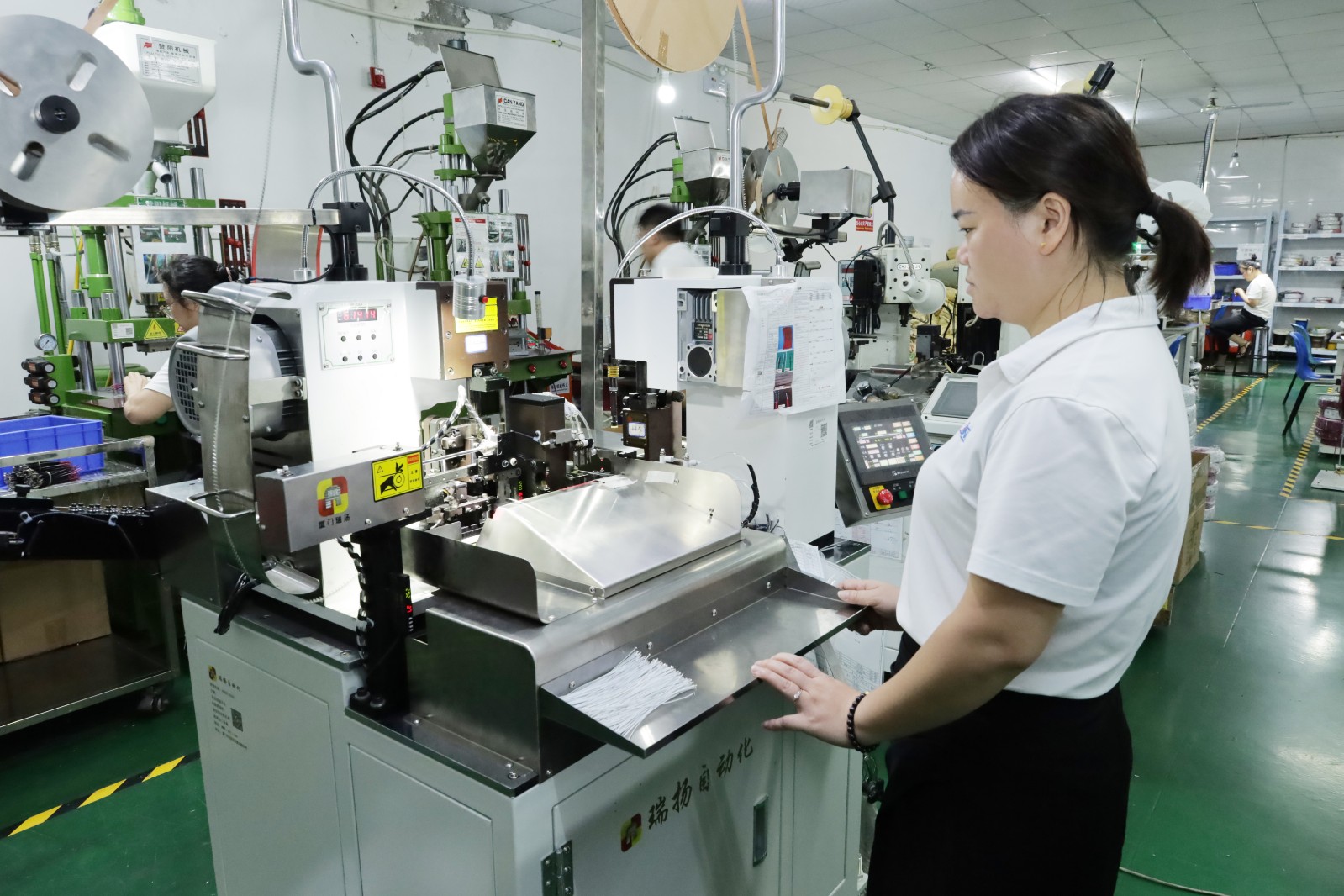

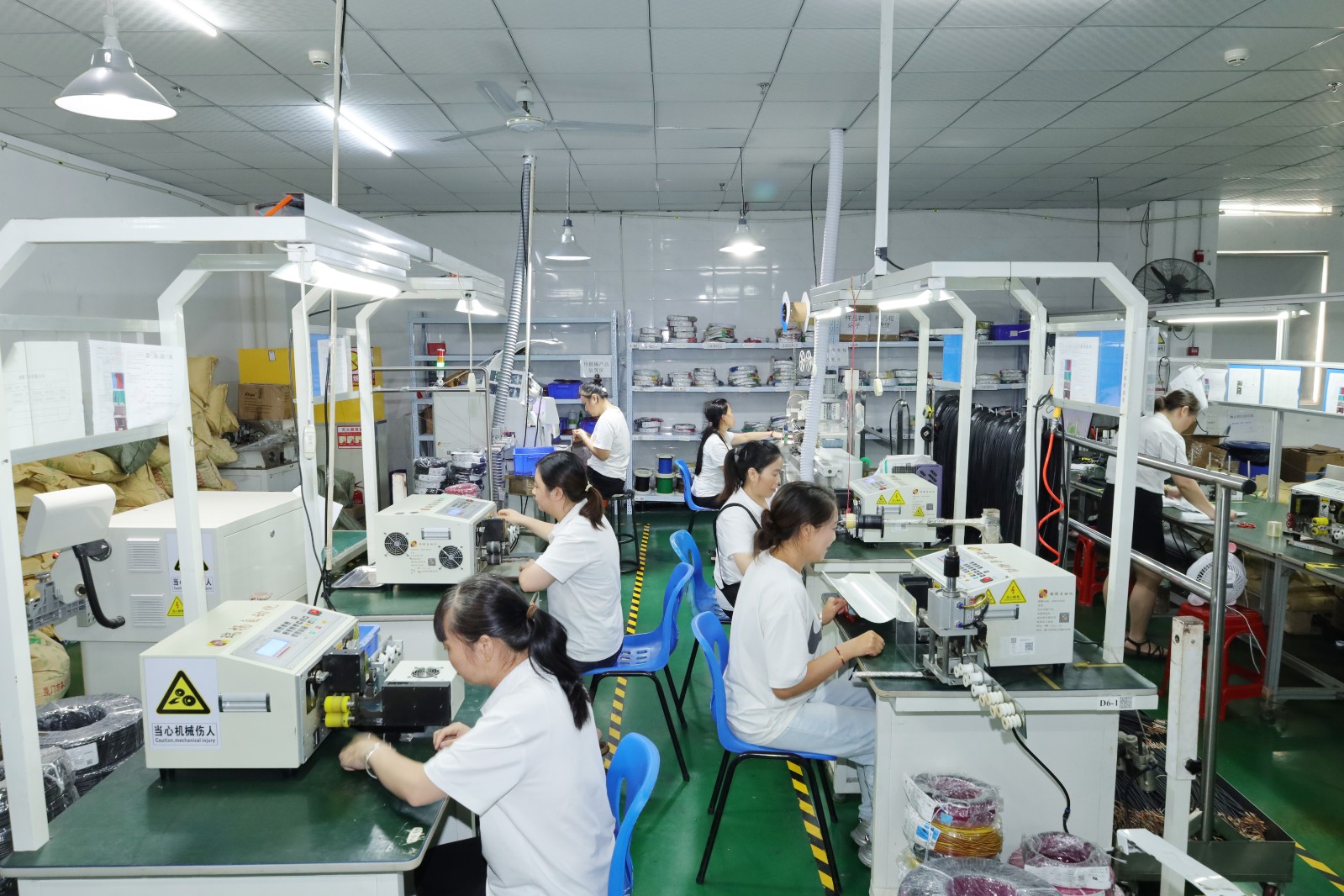

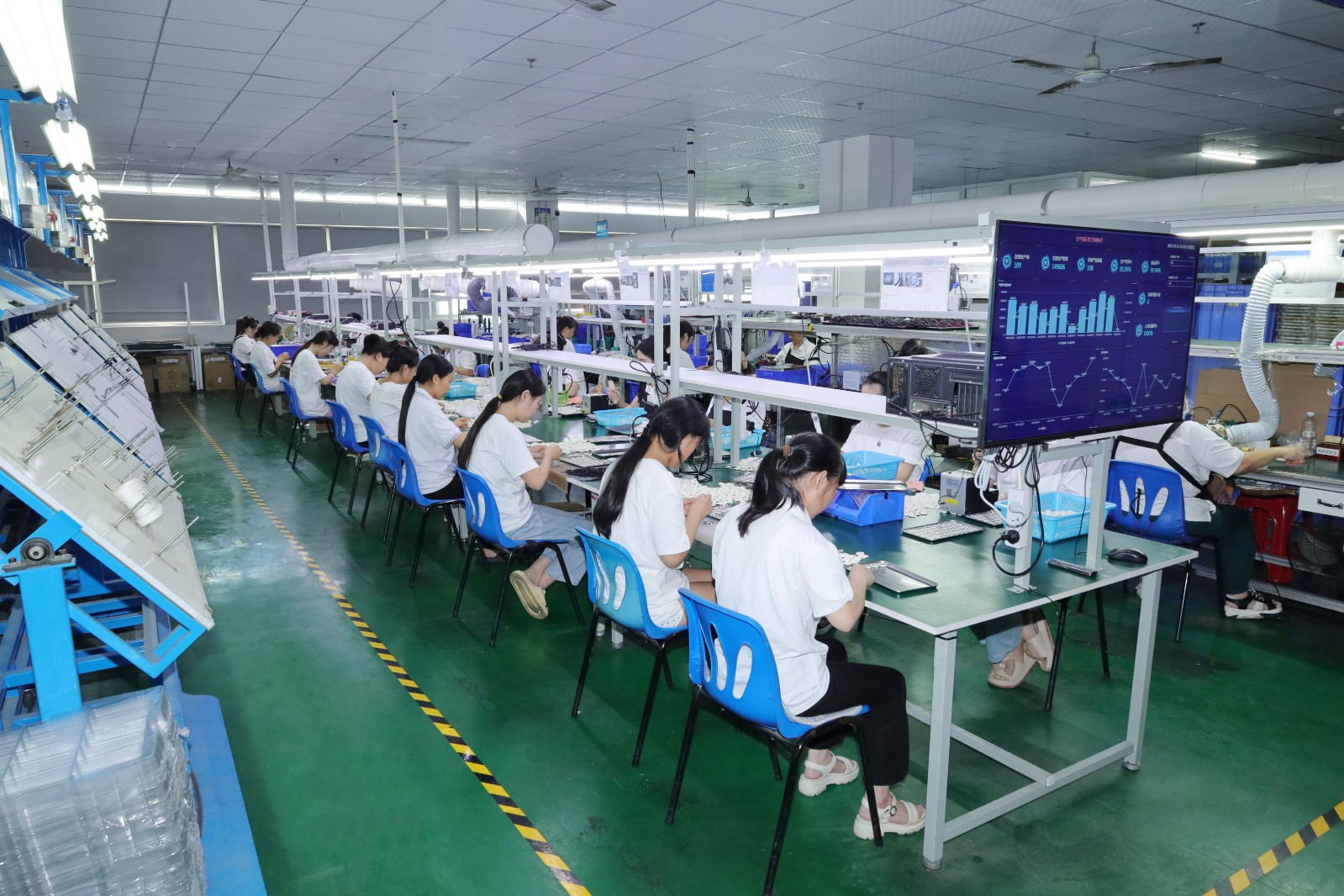

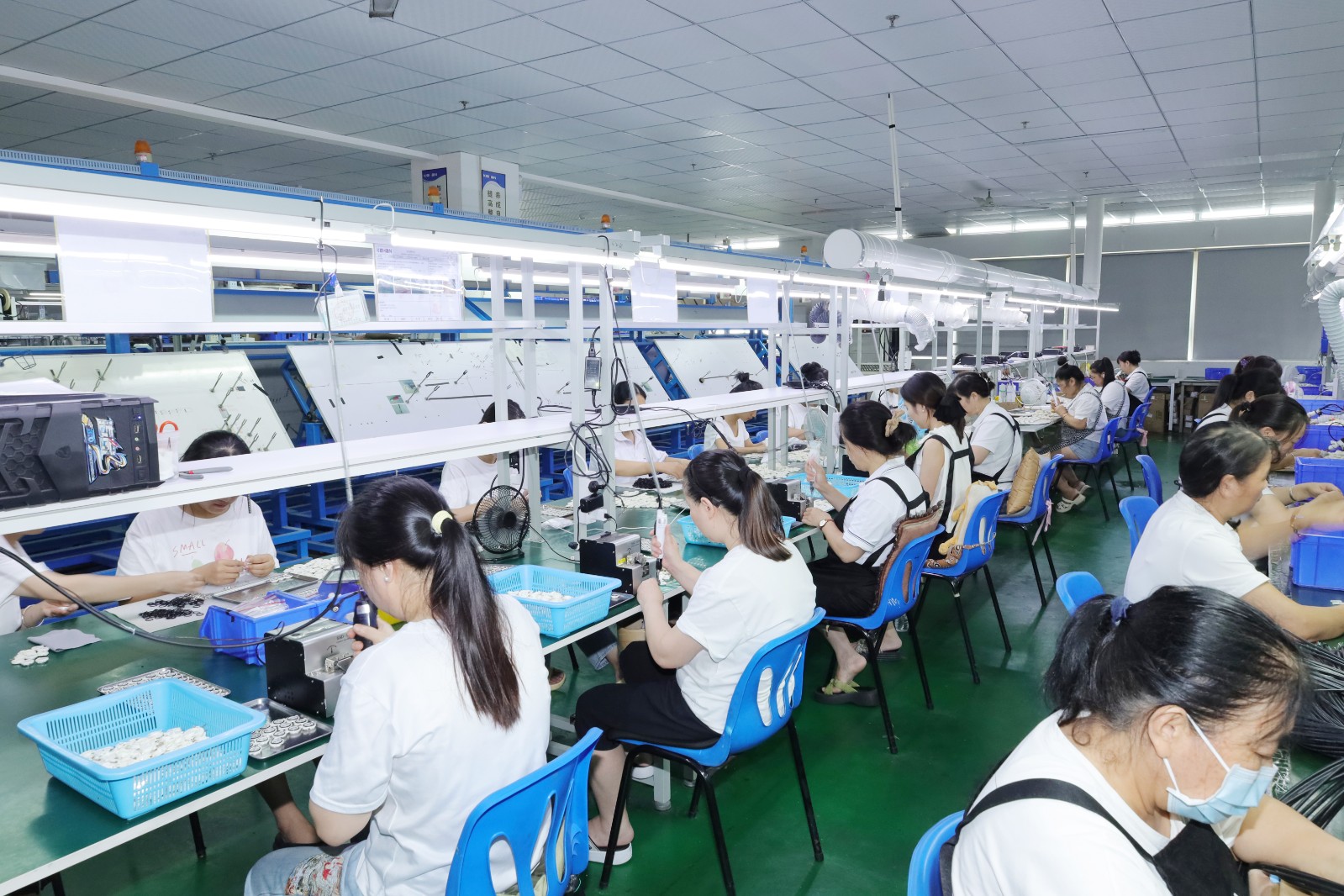

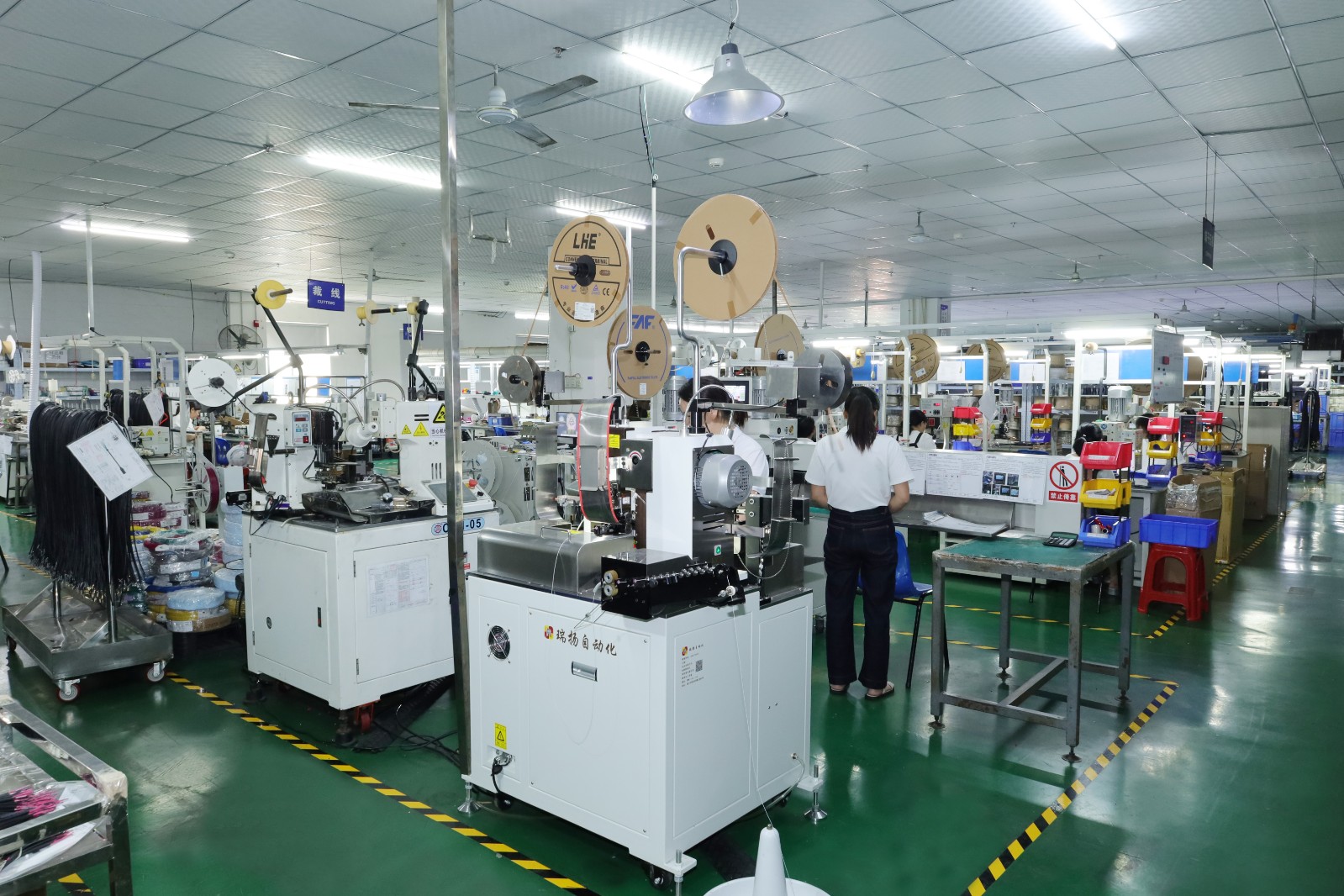

Our factory and production lines

FAQ

Q1:What is an OEM wiring harness?

A:An OEM (Original Equipment Manufacturer) wiring harness is a custom-designed electrical assembly produced to the exact specifications of a specific end-product manufacturer. Unlike universal or aftermarket harnesses, it is engineered to integrate seamlessly into a particular vehicle, machine, or device, ensuring perfect fit, function, and compliance with the OEM's quality and safety standards. These harnesses are rigorously tested for reliability, durability, and performance, and are used in original production lines for industries such as automotive, aerospace, industrial equipment, and consumer electronics. They guarantee optimal electrical performance and are a direct replacement for factory-installed components.

Q2:What is a factory wiring harness?

A:A factory wiring harness is an OEM-designed electrical assembly pre-installed in vehicles, machinery, or devices during original manufacturing. It consolidates wires, connectors, and terminals into a unified system for efficient power and signal distribution. Engineered to meet strict size, performance, and safety standards, it ensures seamless integration with the product’s electrical architecture. These harnesses undergo rigorous testing for durability, electrical reliability, and environmental resistance (e.g., heat, vibration). Unlike aftermarket versions, they guarantee perfect compatibility and are essential in automotive, aerospace, industrial equipment, and consumer electronics for optimal functionality and safety.

Q3:Who makes the best wiring harness?

A:Of course, it's Xiamen Kehan Electronics Co., Ltd. - one of the best wire harness suppliers in China.
