China OEM Overmolded Cable Assemblies | Power Electrical & Wire Harness Solutions

Professional Custom & OEM Wire Harness Solutions | Reliable Wire Harness Factory

As a leading provider of Cable Assemblies China, we specialize in end-to-end OEM wire harness and Cable Wire Assembly solutions for global industries. Our expertise includes robust Cable Assembly Power Electrical systems designed for high-current applications like industrial machinery, renewable energy, and electric vehicles, ensuring efficient and safe power transmission.

We excel in producing durable Overmolded Cable Assemblies with IP67/IP68 protection, offering strain relief, waterproofing, and resistance to chemicals and abrasion. All products are built with precision-engineered connectors, certified materials (UL/CE/RoHS), and rigorous testing for performance in extreme environments.

Our capabilities cover:

• Custom OEM wire harness design and volume production

• Overmolded solutions for connectors, junctions, and terminations

• Compliance with international electrical and safety standards

Power your projects with reliability—request a free design review and quote today!

Key Features & Benefits:

• High-Conductivity Conductors: Utilizing 99.99% oxygen-free copper for high purity, low resistance, anti-aging properties, and extended service life. This ensures minimal energy loss, reduced heat generation, and superior current load capacity.

• Durable Insulation & Sheathing: Made from environmental protection high-strength PVC or neoprene, offering excellent abrasion resistance, tensile strength, corrosion resistance, waterproofing, flame retardancy, oil resistance, and weather ability. Ideal for both indoor and outdoor use, even in harsh or moving environments.

• Stringent Quality Control: Guarantees uniform thickness of insulation and sheath with very low eccentricity. Each harness undergoes high-voltage testing to ensure no breakdowns, providing ultimate safety and reliability.

• Available Configurations: Choose from sheath colors including all black, white inner with orange outer, white inner with black outer, or white inner with blue outer.

• Certifications & Testing: Our products comply with CCC, CE, ISO9001:2008, and ROHS standards. They have passed third-party tests for high-temperature resistance (105°C), low-temperature resistance (-40°C), and flame retardancy.

• Common Specifications: Available in cross-sections from 10mm² to 120mm² (10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm) to meet diverse power requirements.

Applications: Perfect for use as welding cable, torch wire, welding machine wire, battery cables, power leads for cutting tools, and grounding applications.

Request a free quote for your custom wiring harness needs and experience the difference in quality and performance!

Specification

Customizing the wiring harness only requires four steps!

1:Please provide your design drawings, specifications, or samples.

2:We will review the drawings and provide you with the most competitive quote.

3:Upon your confirmation of the drawings and price, we can proceed with mass production or provide you with a sample first to ensure quality.

4:Finally, we will carefully package and ship your order promptly via the fastest available method.

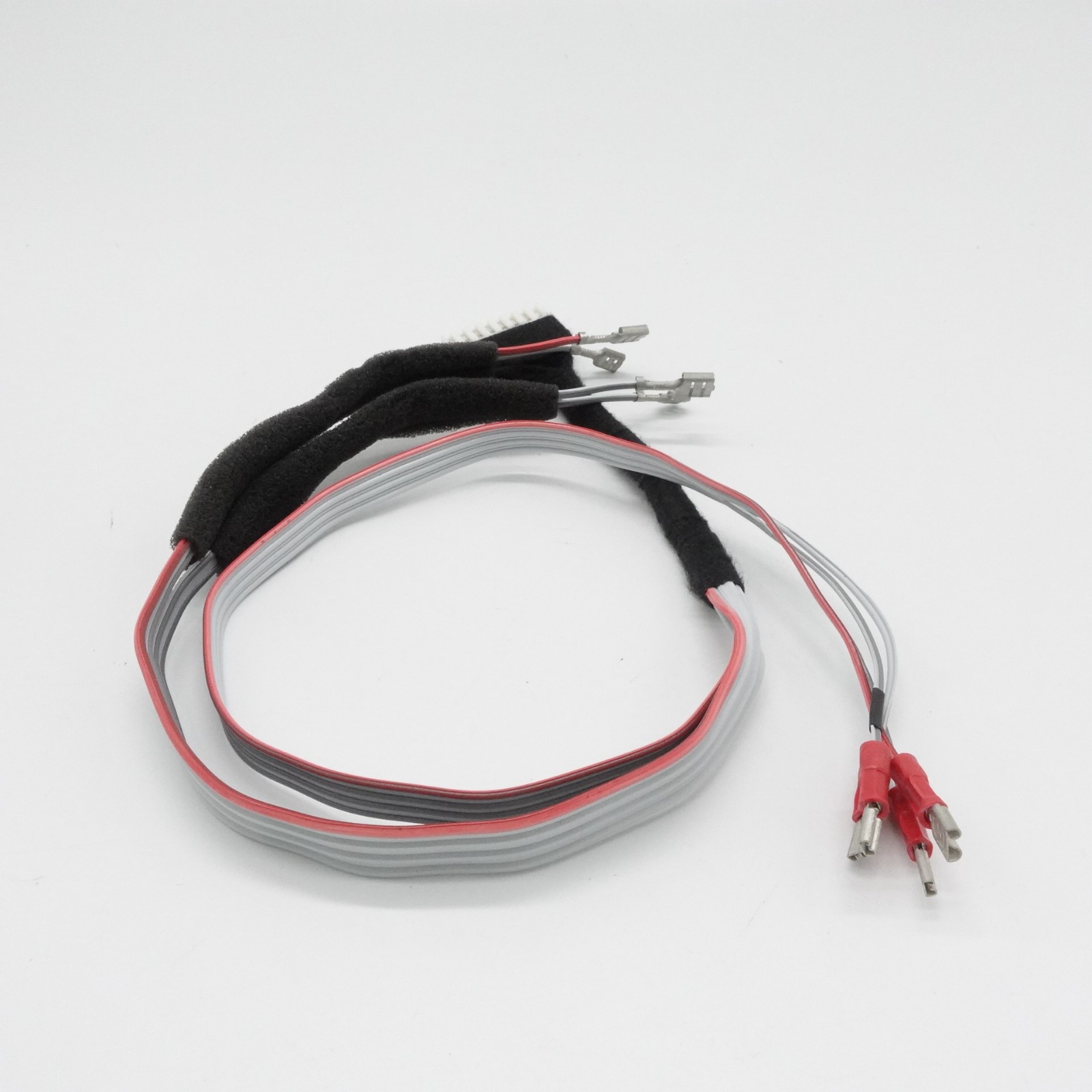

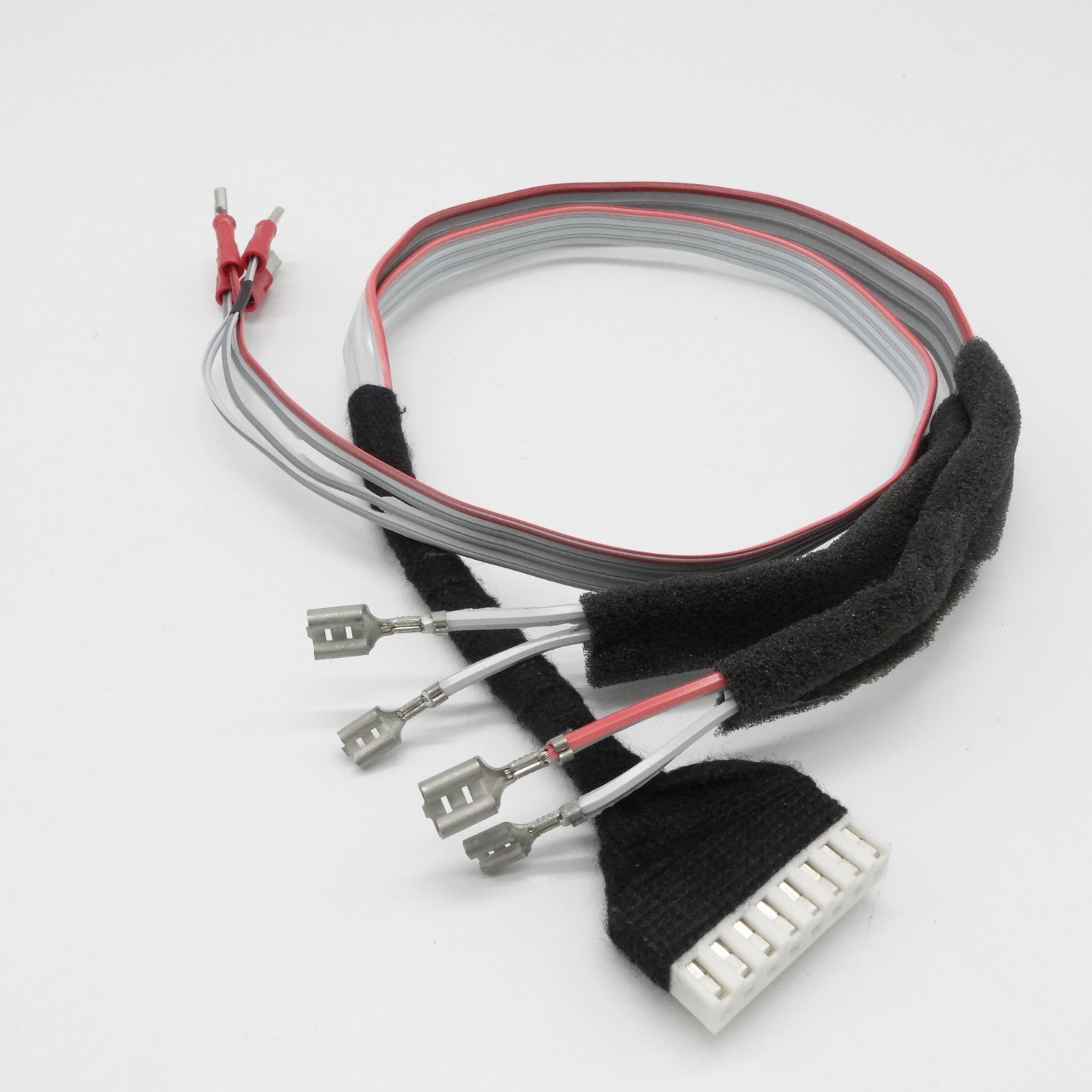

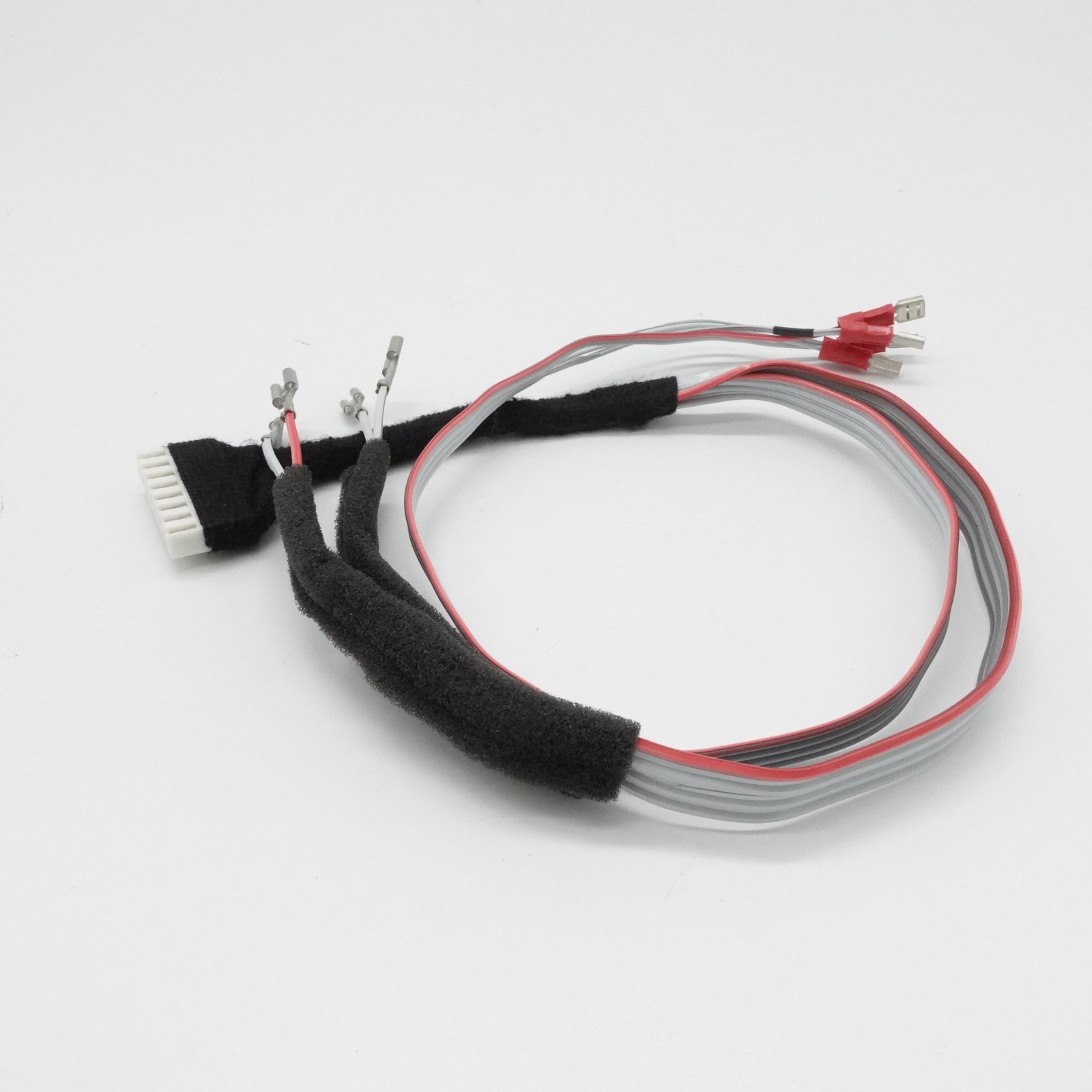

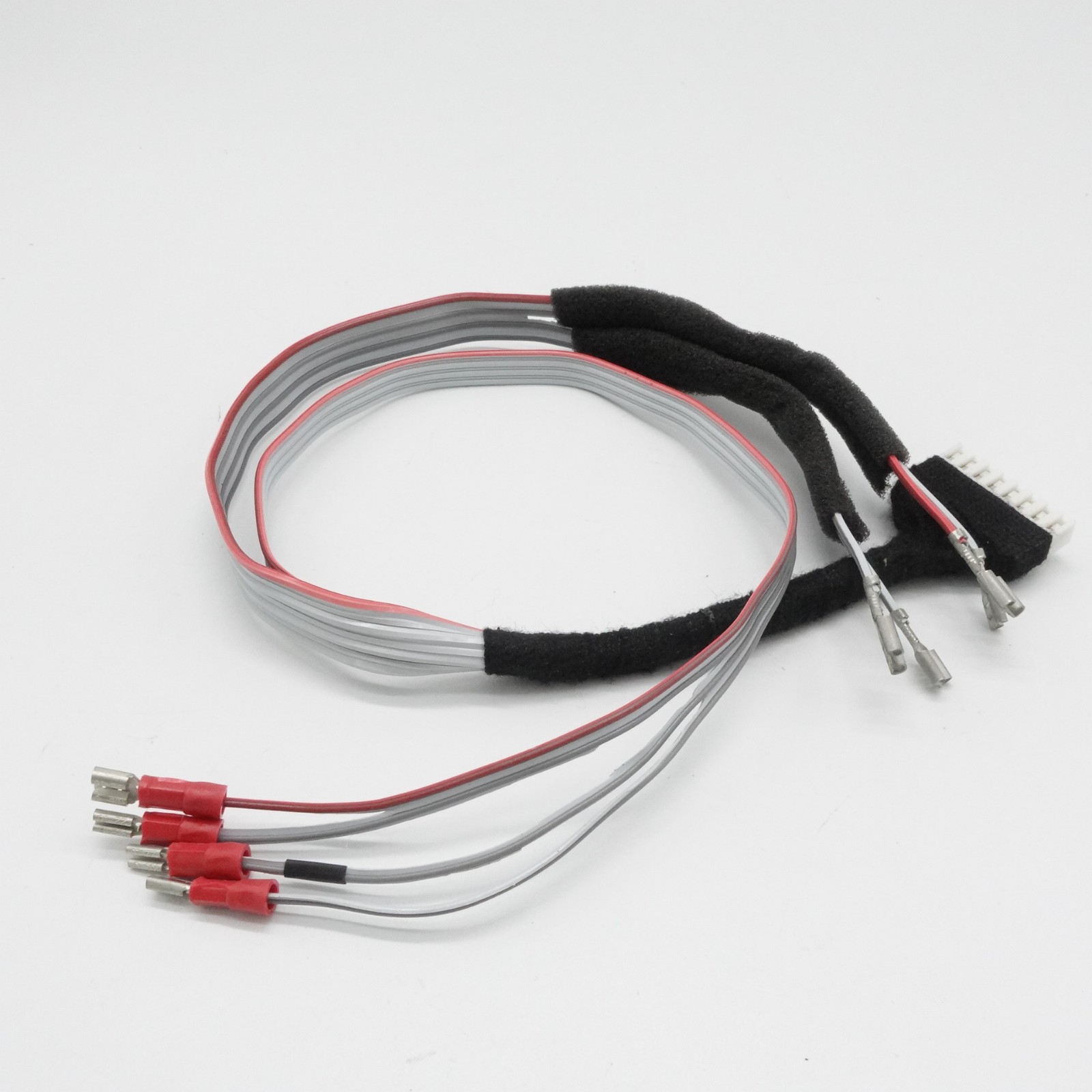

product display:

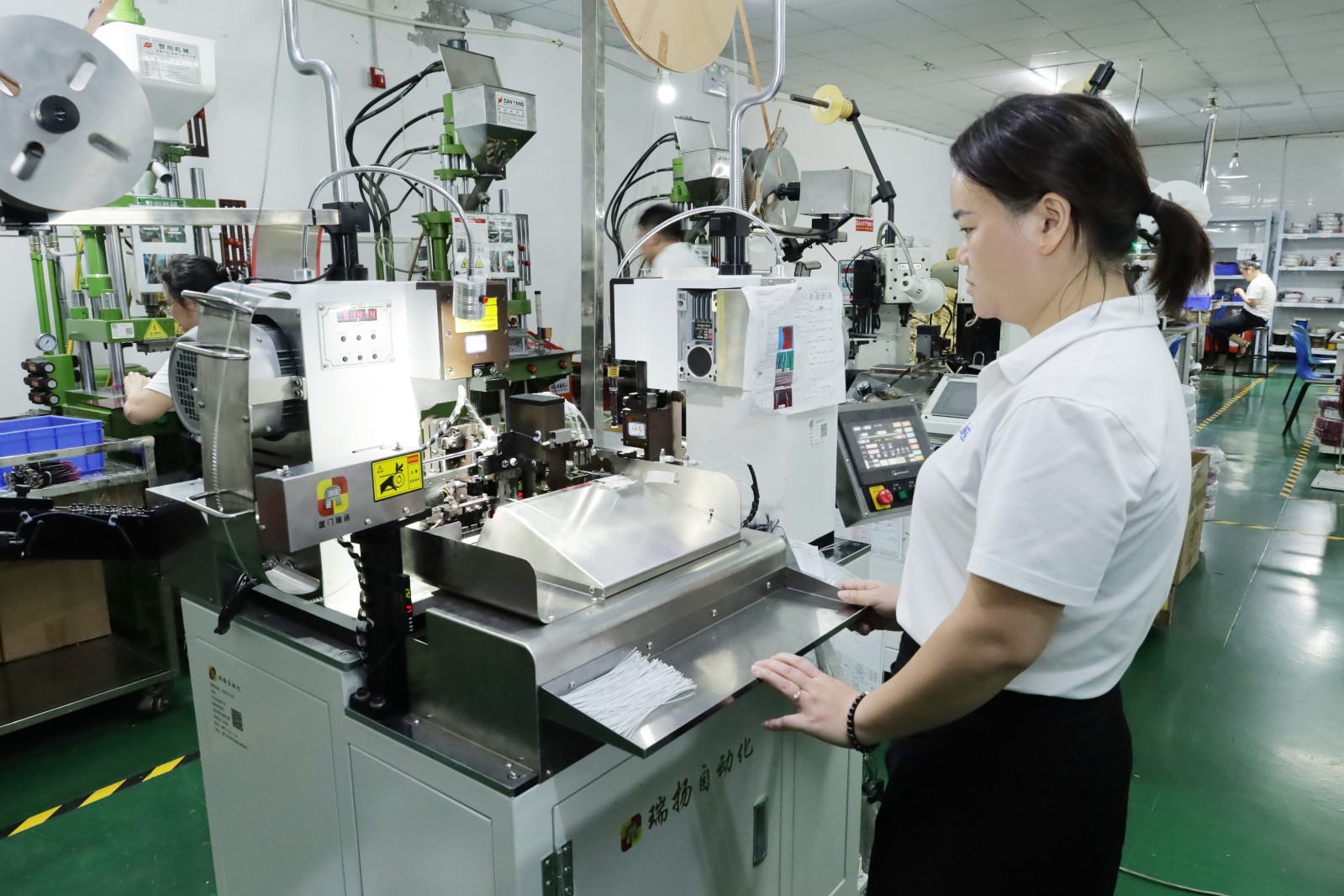

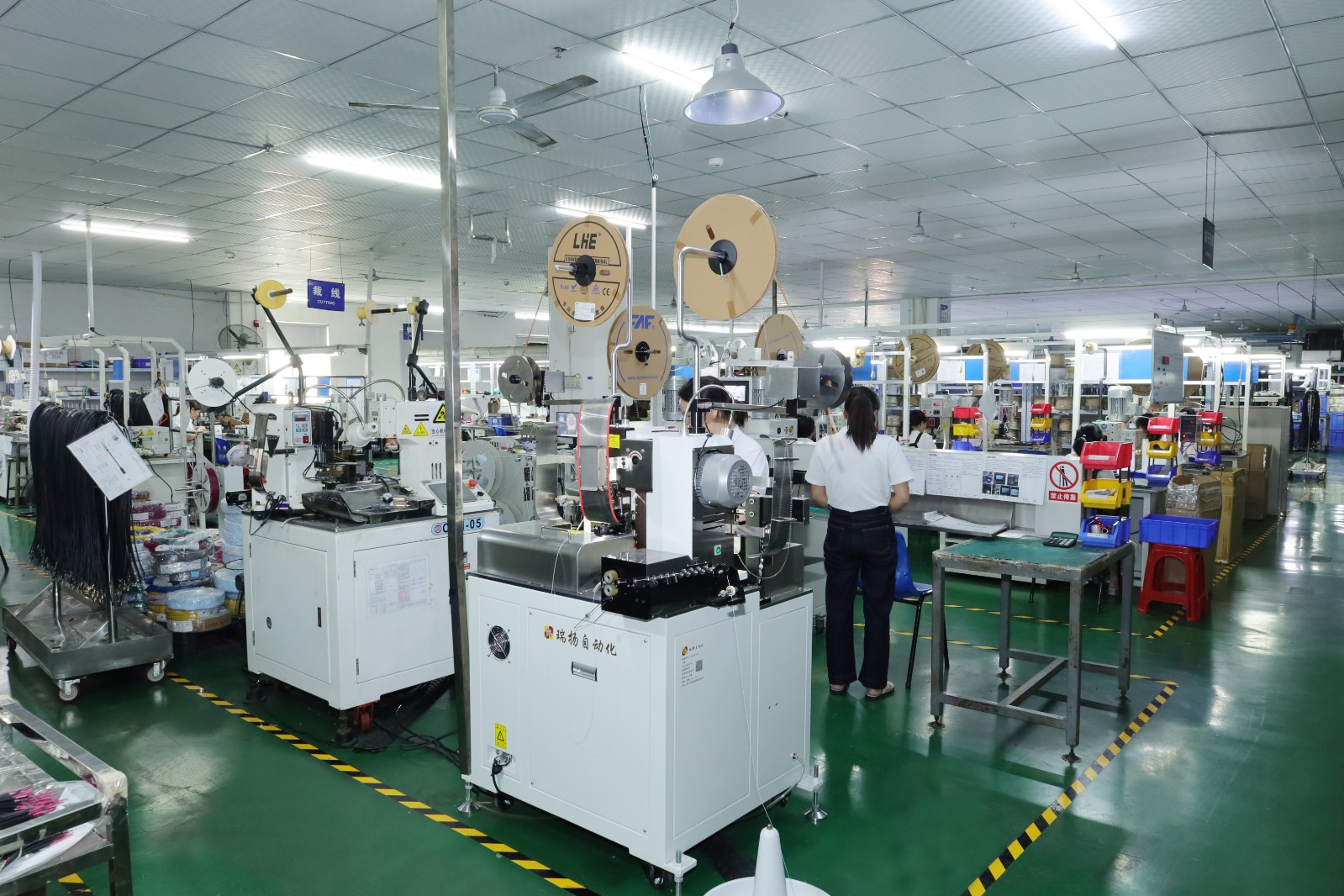

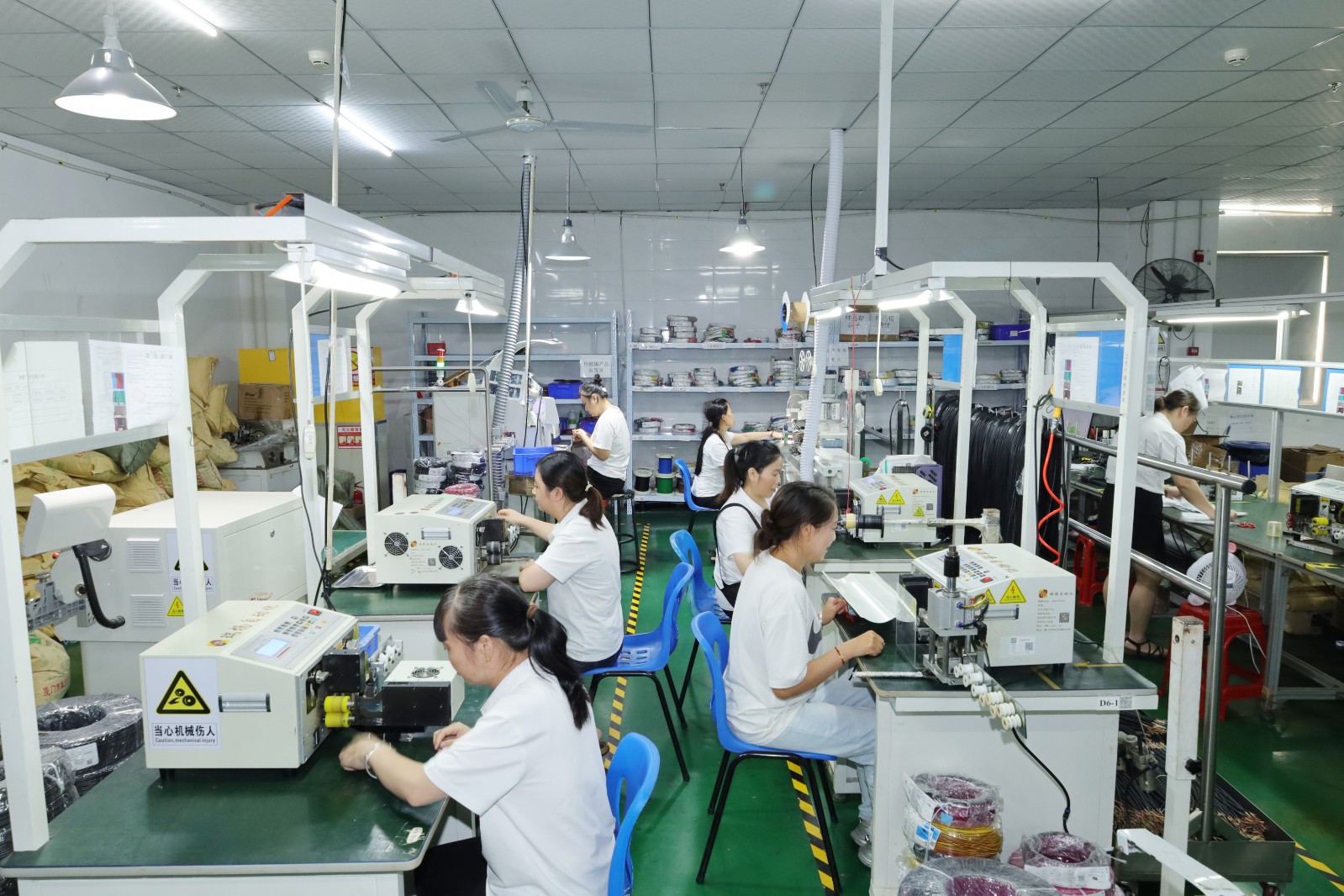

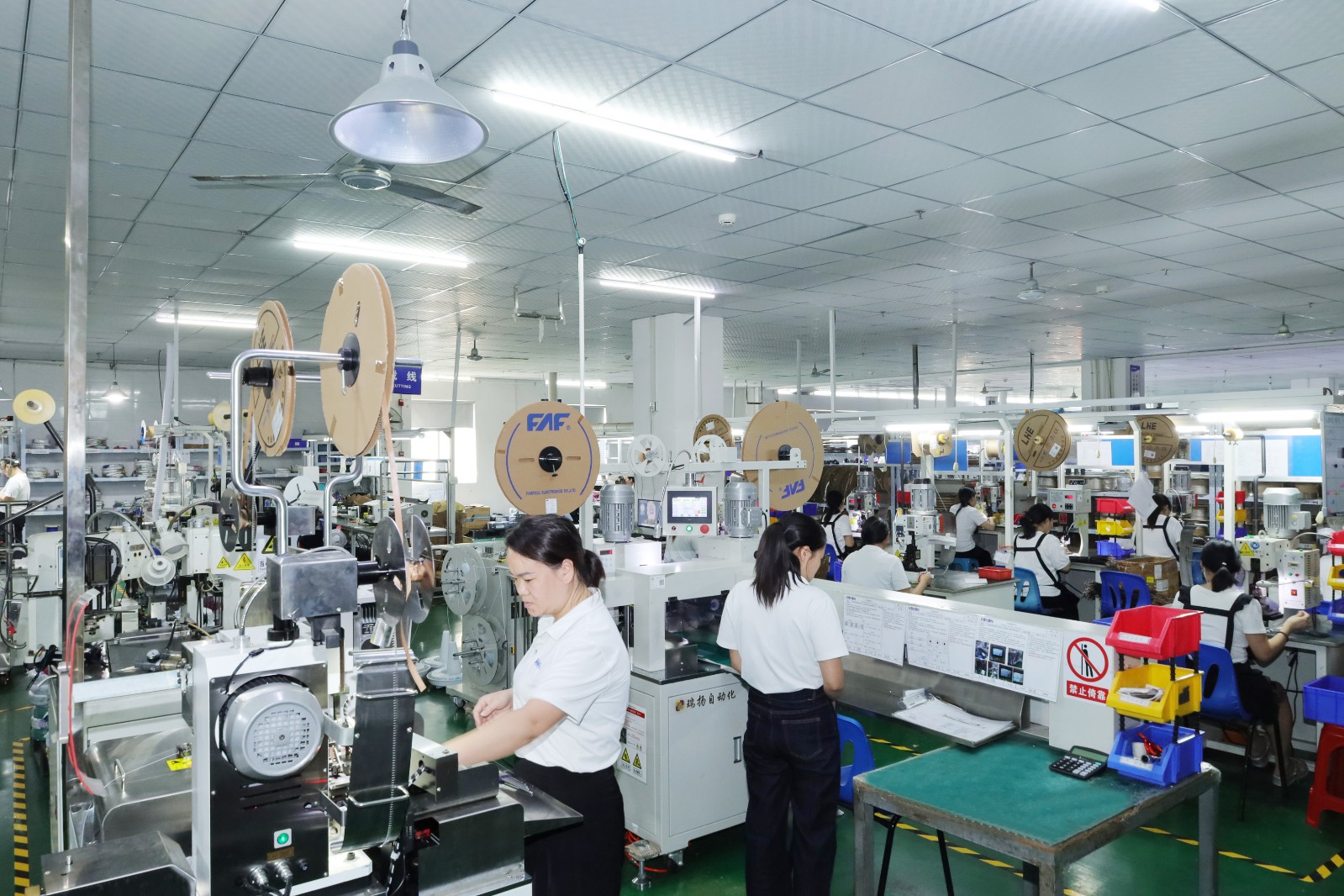

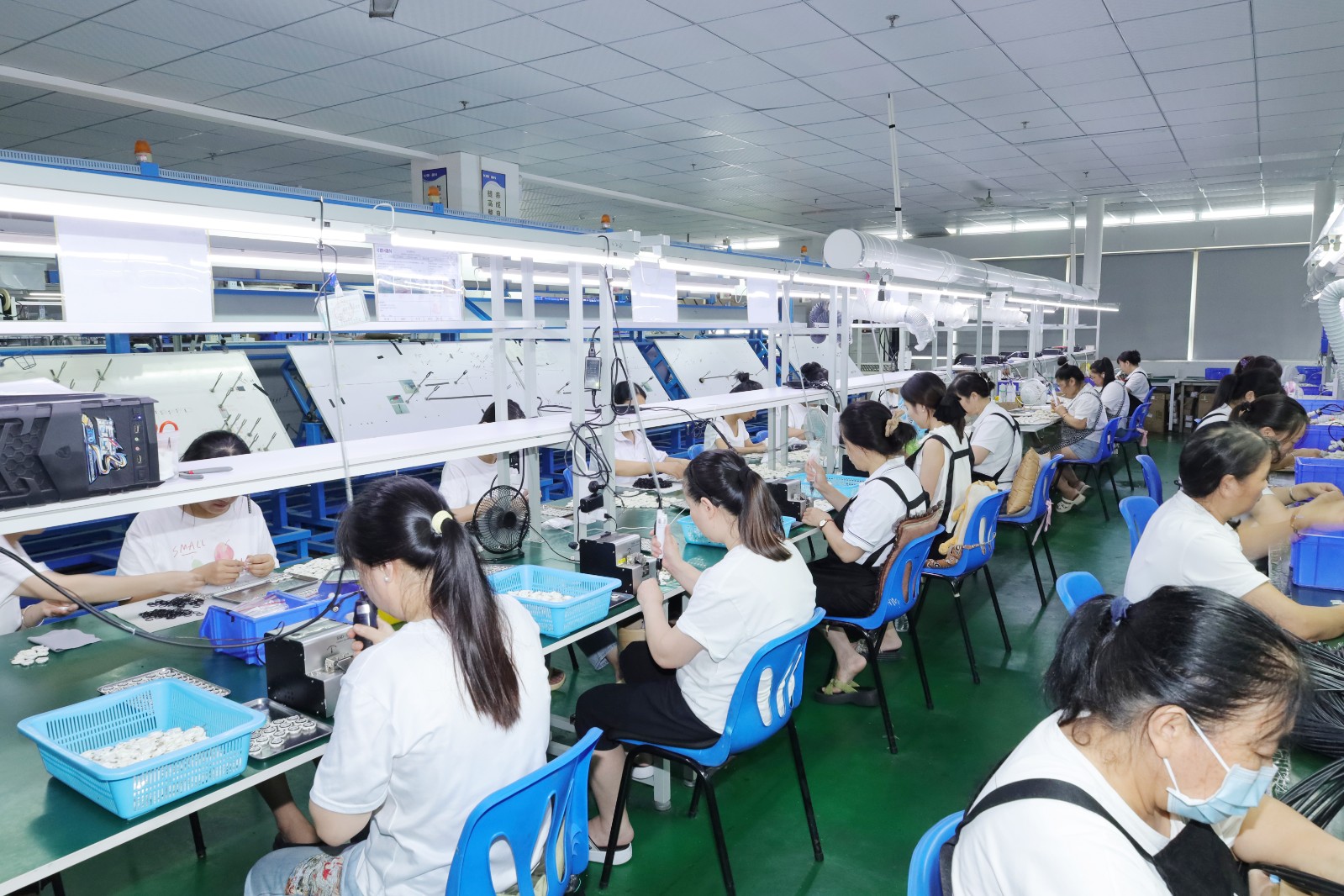

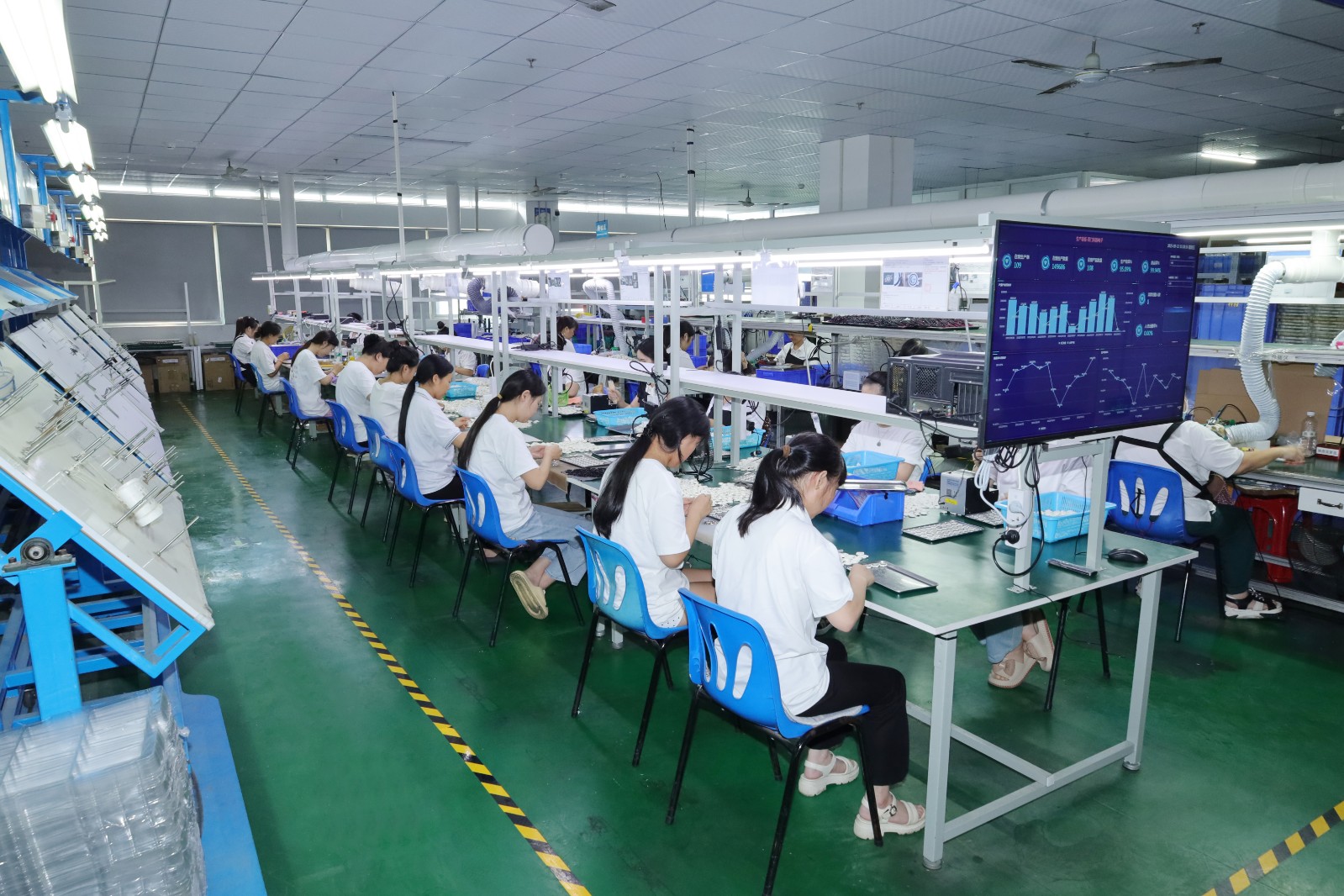

Our factory and production lines

FAQ

Q1:What is an overmolded cable?

A:An overmolded cable is a type of cable assembly where the connector and cable junction are encased in a single, seamless layer of molded thermoplastic or rubber material. This manufacturing process creates a durable, strain-relieved, and environmentally sealed connection that is highly resistant to moisture, dust, vibration, and pulling forces. The result is a robust and reliable cable ideal for demanding applications in consumer electronics, automotive, industrial equipment, and medical devices, where long-term durability is critical.

Q2:How to bind cables together?

A:There are several effective methods to bind cables together. Common solutions include using hook-and-loop (Velcro) straps for reusable flexibility, plastic zip ties for a permanent and secure hold, or adhesive-backed cable clips for routing along surfaces. For a professional and protected finish, especially with multiple cables, expandable braided sleeving or spiral wrap offers excellent organization and abrasion resistance. Always avoid overtightening to prevent damaging the cables.

Q3:How are molded cables made?

A:Molded cables are manufactured through a process called injection molding. First, the cable and connector are assembled. Then, they are placed into a custom mold cavity. Molten thermoplastic or rubber material is injected under high pressure into the mold, completely surrounding the critical junction. After cooling and solidifying, the mold opens to reveal a finished, seamless product. This creates a durable, strain-relieved, and environmentally sealed unit that is highly resistant to moisture, dust, and pulling forces, making it ideal for consumer electronics and industrial applications.
