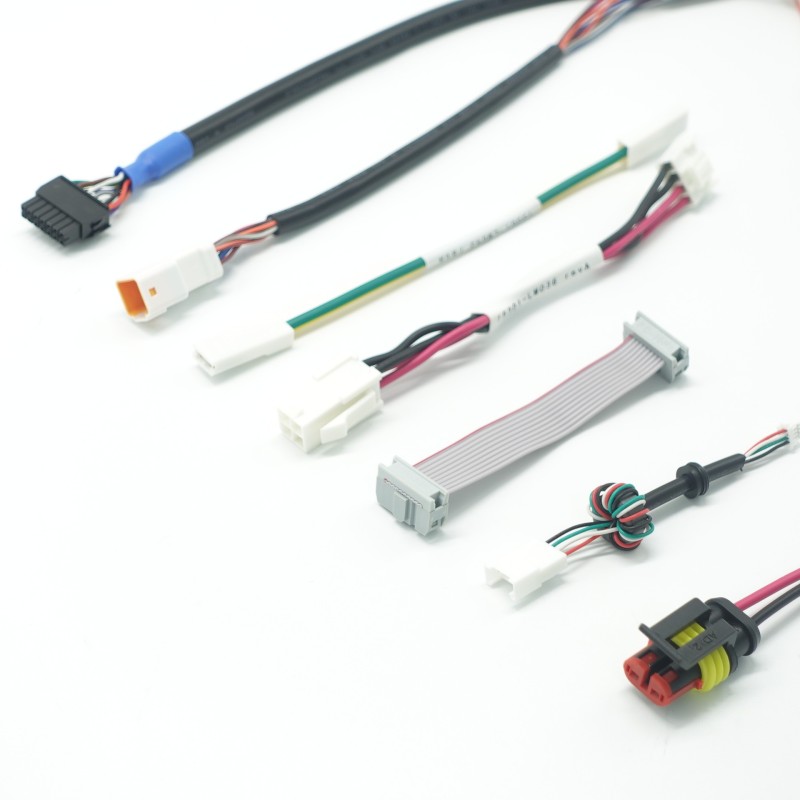

2725 22 28 AWG 4 Core Twisted Pair Shielded Data Wire Harness PVC Jacket Cable for Electronic
1. Excellent anti-interference twisted pair shielding design. The 4-core structure is arranged into two twisted pairs with shielding construction, effectively reducing crosstalk and EMI interference from motors, power lines and surrounding electronics. It maintains clean and consistent differential signal transmission for sensors, control modules and electronic communication assemblies.
2. Mixed AWG design for balanced power and signal transmission. Matched 22AWG power conductors and 28AWG signal conductors meet the mixed requirement of power supply and high-speed signal transfer in one harness. Stable impedance performance avoids voltage drop and signal attenuation for compact electronic equipment.
3. Durable PVC sheath & full custom harness service. Flexible flame-retardant PVC outer jacket resists cracking, abrasion and aging under normal indoor electronic working temperature. We support custom harness length, wire sequence, terminal crimping and connector assembly. All products follow UL2725 and RoHS specifications, suitable for electronic OEM, industrial control, smart device and instrumentation projects.
- KenHan
- Xiamen City, Fujian Province, China
- according to customer's requirement
- 3 ~ 4 weeks
- Information
2725 22 28 AWG 4 Core Twisted Pair Shielded Data Wire Harness PVC Jacket Cable for Electronic
Industry Pain Points
Ordinary unshielded electronic signal wires easily suffer EMI & RFI interference and crosstalk in dense electrical equipment environments, leading to signal distortion, data loss and intermittent communication failures. Many generic harnesses use inconsistent twist pitch and thin conductors; mismatched AWG specifications cannot balance power supply and differential signal transmission demands. Low-grade PVC outer jackets crack easily after repeated bending, abrasion or temperature cycling. Lots of suppliers only supply bare cable rolls without finished harness assembly, and fail to offer custom wire length, connector crimping or color coding. Many cheap alternatives lack UL2725, RoHS certification, which creates compliance barriers for electronic OEMs exporting to North America and Europe.
Product Solutions
This UL2725 4-core twisted-pair shielded harness adopts paired twisting structure plus shielding layer to suppress crosstalk and block external electromagnetic noise, keeping differential data signals stable. It combines 22AWG for power and 28AWG for signal to match mixed power & data transmission requirements. Flexible durable PVC jacket delivers good bending resistance and insulation performance. We provide full harness customization: cut-to-length, stripping, crimping, connector assembly and custom color layout. All raw materials comply with UL2725, RoHS standards, with full test reports available. Every finished harness goes through continuity, insulation and impedance testing before delivery for electronic control, sensor and communication devices.
Our wiring loom assembly passes UL certification and complies with RoHS standards. Constructed with reliable flame retardant cable insulation to achieve outstanding fire resistance. Designed specially for rail transit vehicle signal equipment, this cable assembly delivers stable signal transmission. We provide flexible customization on wires, connectors and harness structure to match different vehicle equipment installation demands.
About this supplier

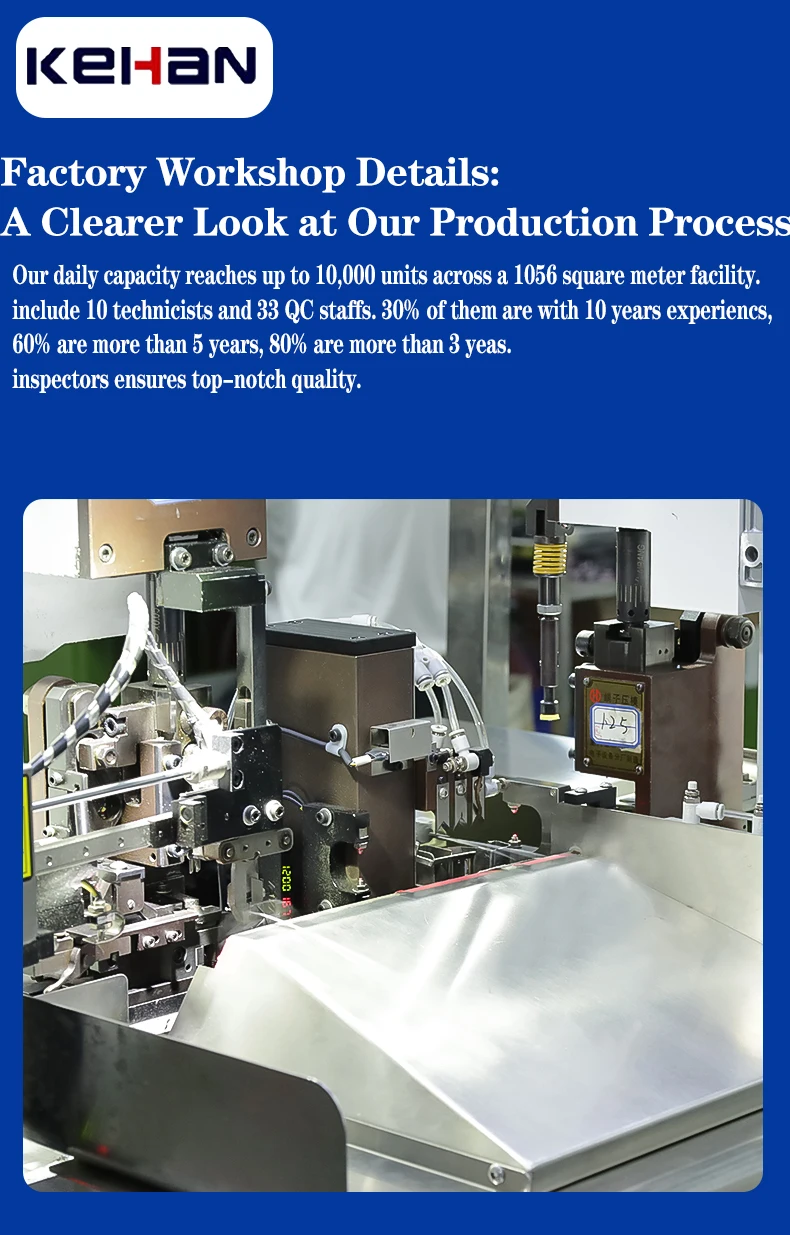

Xiamen Kehan Electronics Co., Ltd., founded in 2010, There are over 200 employees , include 10 technicists and 33 QC staffs. 30% of them are with 10 years experiencs, 60% are more than 5 years, 80% are more than 3 yeas. Our facility features 6 production lines, 335T injection molding machines, large rotary harness boards, fully automatic cutting/stripping machines, crimping machines, and comprehensive quality testing equipment. Our is a privately-owned enterprise specializing in the R&D, production, and sales of electronic wiring products including UL electronic wires, terminal wires, automotive wire harnesses, medical wire harnesses, USB cables, and more. All kinds of wire harnesses are available for customization. We maintain long-term strategic partnerships with leading brands such as JST and MOLEX, ensuring stable production capacity. Our production technology has reached first-class standards and is ISO 9001:2015 certified. Our products comply with environmental standards such as ROHS and REACH, and have obtained UL certification. They are widely used in electronic appliances, LED lighting, electronic equipment, mechanical and electrical devices, electric heating products, vending machines, medical industries, and other fields, selling well in both domestic and international markets.
Company overview
Competitive advantages
Factory profile
FAQs
Are you trading company or manufacturer?
We are a 15-year-old wire harness factory in China, with partners both domestically and internationally. Therefore, we have strong customization capabilities and the ability to control product quality. We can also deliver goods on time. If you have any further questions, please send us a message for consultation.
Do you provide samples? Is it free or extra?
Yes, we do offer a sample service. Providing samples to you is to facilitate better cooperation between us and to let you know about the quality of our products.
How do you ensure the quality of the products?
All of our products are ROHS compliant, cables are VDE/CCC/CE/UL certificated. We have strict QC, passed ISO9001 Quality control system, all products are 100% tested before delivery.
If I want to customize products, how will it work?

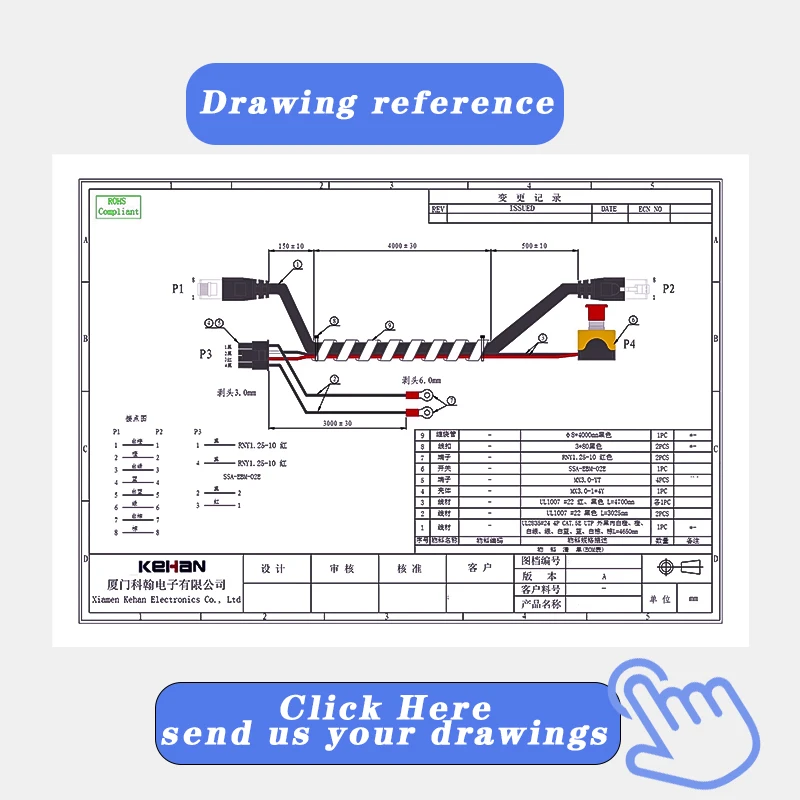

Pls offer us drawings or pictures. Equipped with professional equipment, technicians & skilled employees, OEM service are welcome.
What is your minimum order quantity?
Our minimum order quantity is 100 pcs. Since we are a factory, we currently cannot accept individual better wiring order requests. At the same time, we need the drawings to be able to customize.
