Custom Wire Harness Manufacturing Process: A Step-by-Step Guide for OEM & ODM Buyers
2026-05-18 10:23Custom Wire Harness Manufacturing Process: A Step-by-Step Guide for OEM & ODM Buyers
How We Go From Your Drawing to Delivered Harnesses — Transparently, Efficiently, and Without Surprises
✓ ISO 9001:2015 Certified | ✓ Free DFM Review | ✓ Prototype in 7–10 Days | ✓ MOQ from 100 pcs
Table of Contents
1. Why the Manufacturing Process Matters When Choosing a Harness Supplier
When you order a custom wire harness, you're not just buying a product — you're buying a process. The quality, reliability, and lead time of the finished harness are determined almost entirely by what happens between the moment you send your drawing and the moment the harness arrives at your assembly line.
Many buyers focus on price and delivery, but overlook process transparency. The result: unexpected ECO delays, first-article failures that add weeks to the schedule, or field failures traced back to a missed DFM issue that any experienced supplier would have caught early.
At Kehan Wire Harness, we've refined our custom harness process across thousands of projects for industries including automotive aftermarket, self-service kiosks, industrial equipment, and power electronics. This guide explains exactly how we work — so you know what to expect at every stage, and why each step exists.
Key principle: A well-managed custom harness process compresses total project time by catching problems at the cheapest possible stage — during review and prototyping, not during production or in the field.
2. Step 1: Technical Inquiry & Requirements Gathering
What Happens
The process begins when you contact us with your project requirements. You don't need to have everything figured out — we work with customers at every stage of readiness, from a complete engineering package to a rough sketch or a physical sample.
What We Need From You (Ideally)
| Document / Information | Why We Need It | Can We Work Without It? |
|---|---|---|
| Wiring diagram / schematic | Defines circuit topology, signal types, and voltage levels | Sometimes — we can reverse-engineer from a sample |
| BOM (Bill of Materials) | Lists wire gauges, insulation grades, connector part numbers | Partially — we'll quote with approved alternates if needed |

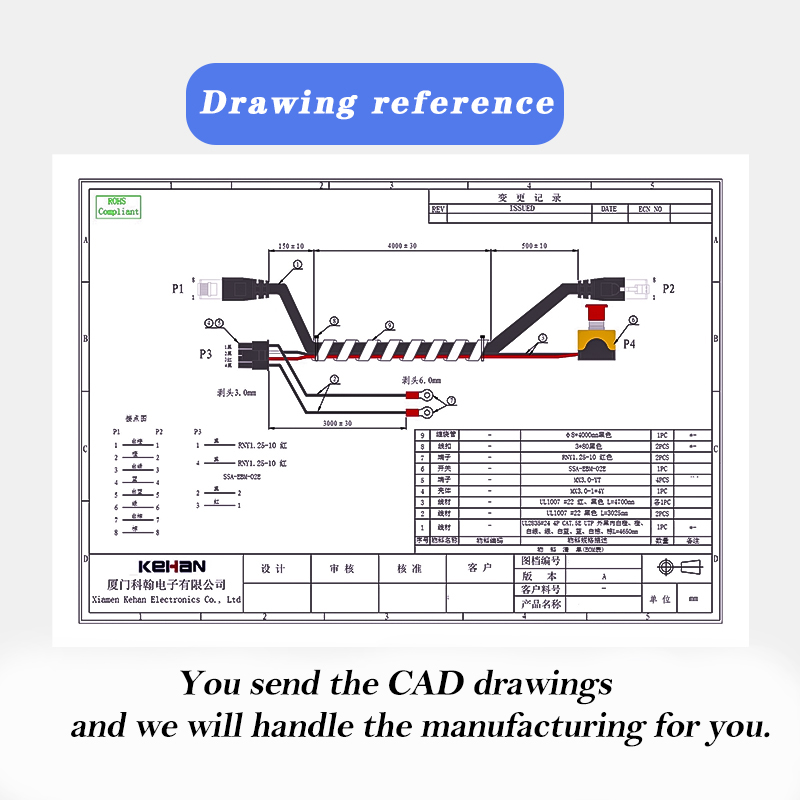

| Assembly drawing / 2D layout | Defines harness geometry, branch lengths, tie-down points | Yes — we can measure from a sample or prototype to spec |
| Target quantity & delivery schedule | Determines production planning, tooling investment, and MOQ | Required for accurate quotation |
| Application environment | Temperature range, vibration, moisture, chemical exposure — drives material selection | Recommended — affects reliability |
| Applicable standards | UL, CE, RoHS, IPC/WHMA-A-620 Class — defines quality requirements | We default to IPC/WHMA-A-620 Class 2 if not specified |
Our Response Time
We acknowledge all technical inquiries within 4 business hours. If your documentation is complete, a preliminary feasibility assessment is returned within 1 business day.
3. Step 2: Engineering Review & DFM Analysis
What Happens
This is where experienced harness manufacturers earn their keep. Our engineering team performs a Design for Manufacturability (DFM) review of your harness design before any tooling is ordered or prototypes are built. The goal is to catch design issues when they're cheap to fix — not after production has started.
What We Check
Current capacity: Are all wire gauges correctly rated for their actual load current, with appropriate de-rating for bundled cables?
Connector compatibility: Do all mating connectors and terminals match? Are the specified connectors available, or are there more cost-effective approved alternates?
Routing geometry: Are there tight-radius bends that will stress conductors? Are branch lengths manufacturable within tolerance?
Chafe & abrasion risk: Are there routing points where cables will contact sharp sheet metal edges or hot surfaces?
EMC considerations: Does the harness require shielding or grounding to pass FCC/CE EMC testing?
Overmolding feasibility: If overmolded connectors are specified, are the geometries injection-moldable?
Compliance gaps: Any RoHS/REACH non-conformances in the specified materials?
DFM Report
We deliver a written DFM report with any findings, categorized by severity (critical / advisory) and accompanied by specific recommended changes. This service is provided at no charge and with no obligation to place an order. We find that customers who act on DFM recommendations save an average of 2–4 weeks in prototype iterations.
Example: A vending machine customer came to us with a refrigeration compartment harness design using unsealed connectors. Our DFM review flagged the condensation exposure risk. We recommended IP54 sealed connectors — a $0.60/unit material cost increase — that eliminated all connector corrosion warranty claims within the first year of production.
4. Step 3: Quotation What Happens
Following engineering review (and after any DFM changes are incorporated), we issue a formal quotation. Our quotes are detailed and transparent — we don't hide costs that will surface later.
What Our Quote Includes
| Quote Element | Details |
|---|---|
| Unit price | Price breaks at your target volume tiers (e.g., 500 / 2,000 / 5,000 / 10,000+ pcs) |
| NRE / Tooling | One-time fixture and tooling costs, clearly itemized. Typically $0 for standard harnesses; custom overmold tooling quoted separately |
| Sample cost | First-article sample quantity and price. Sample cost is typically credited against the first production order |
| Lead times | Sample lead time and production lead time, clearly separated |
| Payment terms | T/T 30% deposit, 70% before shipment (standard); other terms available for qualified accounts |
| Validity | Quote valid for 30 days; copper price fluctuation clause noted if applicable |
Quotation Lead Time
For standard harnesses with complete documentation: 24–48 hours. For complex multi-branch harnesses requiring detailed costing: 3–5 business days.
5. Step 4: Prototype & First Article Inspection (FAI)
What Happens
Once the order is confirmed and deposit received, we produce 5–20 prototype units (or as specified) using the same materials, connectors, and tooling that will be used in production. This is not a handmade mockup — it is a production-representative sample.
First Article Inspection (FAI) Report
Every prototype order includes a formal FAI report documenting:
Visual inspection against drawing (IPC/WHMA-A-620)
Branch length measurements (every branch, every unit in the sample set)
Wire gauge and insulation verification
Connector and terminal identification
Crimp pull-force test results (per terminal type)
100% continuity and isolation resistance test results
Hi-pot test results (if specified)
Photographs of finished harness from multiple angles
Sample Lead Time
| Harness Type | Sample Lead Time |
|---|---|
| Simple harness (≤ 5 branches, standard connectors) | 5–7 business days |
| Medium complexity (6–15 branches, mixed connector families) | 7–10 business days |
| Complex harness (16+ branches, custom overmolding, shielded) | 10–15 business days |
| Overmolded connector (new mold tooling required) | 25–35 business days (mold fabrication included) |
Revision Policy
If first articles require modifications, we incorporate the changes and deliver revised samples at no additional tooling charge, provided changes fall within the agreed design envelope. ECO-driven revisions are re-sampled within 5 business days.
6. Step 5: Customer Approval & Production Preparation
What Happens
After first articles are approved (either via your incoming inspection or your sign-off on the FAI report), we begin production preparation in parallel with your approval process to minimize total lead time.
Production Preparation Activities
Process documentation: We create a production work instruction specific to your harness SKU, including process parameters, crimp force specs, and inspection checkpoints.
Fixture verification: Production fixtures (wire board, assembly jig, test fixture) are verified against the approved first article.
Material procurement: All wires, connectors, terminals, and accessories for the production order are procured and received, with incoming inspection.
Operator qualification: For new harness types requiring specialized assembly steps, operators complete a qualification build before production release.
Electrical test program: The test fixture is programmed and validated against the approved FAI sample. Every harness in production will be tested against this program — 100%, not sampled.
7. Step 6: Mass Production
What Happens
Production proceeds according to the documented process, with inline quality controls at every critical step:
Production Quality Controls
| Production Stage | Quality Control Activity | Frequency |
|---|---|---|
| Wire cutting | Length verification, strip length check | First-off + every 2 hours |
| Crimping | Pull-force test, crimp height measurement | Every reel change + every 500 pcs |
| Assembly | Visual inspection, connector insertion verification (applicator force monitoring where applicable) | 100% visual by operator + supervisory audit |
| Lacing & bundling | Branch length spot-check, tie placement verification | First-off + statistical sampling |
| Electrical testing | 100% continuity, isolation resistance, hi-pot (if spec'd) | 100% — every unit |
| Final visual inspection | IPC/WHMA-A-620 workmanship standard | 100% — every unit |
Production Lead Time
Standard production lead time after first-article approval:
500–2,000 pcs: 10–15 business days
2,000–10,000 pcs: 15–20 business days
10,000–50,000 pcs: 20–30 business days
50,000+ pcs: Schedule agreed at order placement
Rush production (50% surcharge) available for qualified designs with confirmed purchase orders.
8. Step 7: Quality Testing & Final Inspection
What Happens
Before any harness is packed for shipment, it passes through our final inspection station. This is not a sampling inspection — every unit is tested and inspected.
Final Inspection Checklist
✅ Electrical test: continuity, no shorts, isolation resistance within spec
✅ Hi-pot test (where specified): no breakdown at rated voltage
✅ Visual: no exposed conductors, damaged insulation, or missing components
✅ Connector verification: all connectors fully seated and locked
✅ Label verification: correct part number, lot number, and customer-specific marking
✅ Length spot check: final branch length verification against approved drawing
Outgoing Quality Data
Each shipment is accompanied by:
Certificate of Conformance (CoC)
Electrical test report (summary or full log, per customer requirement)
Lot traceability record (material batch → production date → shipment)
RoHS/REACH compliance declaration (on request)
? Our Performance Data: First-pass electrical test yield ≥ 99.95% | Field return rate < 0.05% | On-time delivery rate 97.8% (trailing 12 months)
9. Step 8: Packaging, Labeling & Delivery
Packaging Options
| Packaging Type | Suitable For | Protection Level |
|---|---|---|
| Individual poly bag + carton | Standard harnesses, most applications | Standard |
| Anti-static bag | Harnesses with ESD-sensitive connectors | ESD protected |
| Custom tray / clamshell | High-density connectors, overmolded assemblies | Connector protection |
| Kitted packaging | Kiosk/machine manufacturers needing per-machine kit | Assembly-ready kit |
| Reel / continuous coil | High-volume pigtail or simple assemblies | Space-efficient |
Labeling Options
Standard label includes: our part number, customer part number, lot number, quantity, and production date. We also support:
Customer-branded labels (your part number / barcode / QR code)
Machine serial number labeling (for kiosk/equipment OEMs)
Regulatory marks (UL, CE, RoHS) as applicable
Shipping Options
Sea freight (FOB Xiamen): 20–35 days to US/EU; cost-effective for volumes ≥ 500 kg
Air freight (DDP to your door): 5–7 days via DHL/FedEx; recommended for samples, urgent orders, or time-sensitive production
Express courier: 3–5 days for small sample quantities
10. Typical Project Timeline at a Glance
| Phase | Activity | Typical Duration | Cumulative from Inquiry |
|---|---|---|---|
| Phase 1 | Inquiry → DFM Review → Quotation | 2–5 business days | Day 1–5 |
| Phase 2 | Order confirmation → Prototype production | 7–15 business days | Day 6–20 |
| Phase 3 | FAI delivery → Customer approval | 3–7 business days | Day 21–27 |
| Phase 4 | Production order → Mass production → Shipment | 15–25 business days | Day 42–52 |
| Phase 5 | Shipment → Arrival (sea freight, US/EU) | 20–35 days | Day 62–87 |
Fast Track Option: For customers with approved designs and urgent delivery needs, we offer air freight + rush production, delivering qualified production harnesses to your door in as little as 25–30 days from order for standard complexity harnesses.
11. What You Need to Get Started
You don't need to have everything ready — here's what's needed at each stage:
| Your Readiness Level | What You Have | What We Do |
|---|---|---|
| Complete Engineering Package | Wiring diagram + BOM + assembly drawing | DFM review → Quote → Prototype immediately |
| Partial Documentation | Schematic only, or BOM without assembly drawing | We fill gaps with standard assumptions; confirm before quoting |
| Physical Sample Only | A production harness you want replicated or improved | We reverse-engineer the sample, document, and quote |
| Early Concept Stage | System block diagram or rough sketch | We provide a design consultation and budgetary estimate |
| Just Exploring | General application description, no documentation yet | Application engineering discussion; no obligation |
12. Frequently Asked Questions
Q1: Do I need to pay for the DFM review?
No. The DFM review is provided at no charge and with no obligation to place an order. We offer it because better-designed harnesses are easier to build, have fewer quality issues, and result in better long-term customer relationships. It's in everyone's interest.
Q2: What is the minimum order quantity for custom wire harnesses?
For prototype and qualification orders, we accept as few as 10 pieces. For production orders, the standard MOQ is 500 pieces per SKU. For customers with multiple SKUs or an established production ramp plan, MOQ is negotiable. We understand that product development requires flexibility.
Q3: Can you handle ECOs (Engineering Change Orders) after production has started?
Yes. ECOs are a normal part of the harness business, especially in fast-moving industries like kiosk and payment terminals. Our standard ECO turnaround is ≤ 5 business days for first-article samples following receipt of the updated drawing. We maintain dedicated tooling for each customer's harness SKUs to allow fast ECO processing.
Q4: What quality standard do you build to?
Our default workmanship standard is IPC/WHMA-A-620 Class 2 (commercial/industrial). Class 3 (high-reliability, used in medical, aerospace, and defense applications) is available upon request and carries a price premium. We are ISO 9001:2015 certified, and all production is documented with full lot traceability.
Q5: Can you match a competitor's harness or replace a harness currently sourced elsewhere?
Absolutely. If you have an existing harness from another supplier that you want to re-source — whether for cost, quality, or supply chain reasons — send us a sample and any available documentation. We will reverse-engineer if needed, provide a DFM comparison, and quote against your existing specification. Many of our current customers started as second-source qualifications.
Q6: Do you offer consignment stock or vendor-managed inventory (VMI)?
Yes, for established high-volume customers. Under our VMI program, we maintain an agreed buffer stock (typically 4–8 weeks of consumption) in our finished goods warehouse, ready to ship within 24–48 hours of your call-off order. This effectively eliminates production line stoppages from harness supply disruptions. VMI programs are available for customers with ≥ 5,000 pcs/month consumption.
Q7: How do I track my order once it's in production?
Every order has a dedicated account engineer who provides proactive updates at each production milestone: order confirmation, material procurement complete, production start, electrical test complete, and shipment. We provide tracking numbers and commercial documentation (invoice, packing list, CoC) at the time of shipment.
Ready to Start Your Custom Wire Harness Project?
Whether you're at the concept stage or ready to order production quantities — reach out to us. Our engineering team will review your project, provide DFM feedback, and return a detailed quote within 24–48 hours.
We work with OEMs, contract manufacturers, and engineering teams across the US, Europe, and Southeast Asia. Whatever your application — kiosk, industrial, automotive, power electronics — if it has wiring inside, we can build it right.
Send us your drawing, BOM, or sample today. Free DFM review. No obligation.
