Custom Audio Wire Harness & Cable Assembly: What Actually Separates Quiet Gear From Noisy Gear
2026-08-27 16:12Custom Audio Wire Harness & Cable Assembly: What Actually Separates Quiet Gear From Noisy Gear
Last spring a customer sent us a harness from his old supplier and asked what was wrong with it. The complaint was hum. Not loud hum, but enough that his installed conference room mics picked it up. We cut the boot off one XLR and found the problem in about ten seconds: the shield had been soldered to pin 1 with a three-centimeter pigtail, and the drain wire had been twisted into a neat little antenna sitting right next to the hot pin.
That is what this article is about. Audio harnesses are not hard to build badly. They are hard to build so they stay quiet in a rack, on a stage, or inside a powered speaker that gets trucked across a country twice a month. We build custom audio cable assemblies and speaker wire harnesses for pro audio, installed AV, and hi-fi OEM customers out of our factory in Xiamen, and this is everything we have learned about getting it right.
What we cover:
The connectors and cable types that cover 95% of audio work, with real numbers
Balanced vs unbalanced, and the length rule that decides which one you can get away with
Shielding and grounding, including the shield-lift question we ask every customer
Speaker wire gauge, because everyone asks for this table
Internal wiring for amplifiers and mixers, where JST and Molex live alongside Mogami
Our process, our test matrix, and a spec template for your next RFQ
Table of Contents
Why Audio Harnesses Are Not Just Wire
A power harness carries current. If the wire is thick enough and the crimps hold, it works. Audio is different because the signal itself is often tiny. A dynamic microphone puts out a few millivolts. That signal then travels through the same room as switching power supplies, LED dimmers, and Wi-Fi access points, all of which would love to be heard.
So a custom audio wire harness has three jobs, not one:
It has to carry the signal, obviously. It has to reject noise, which is mostly about shield construction and how that shield gets terminated. And it must not generate noise of its own. Cheap cable produces audible thumps when someone steps on it or bends it around a corner. That is called microphonics or triboelectric noise, and once it is in the signal, no downstream gear can remove it.
There is a fourth job that nobody writes on drawings but everyone cares about: it has to survive. Stage cable gets stomped on. Rack harnesses get zip-tied, cut, and re-tied. Speaker leads in a tour rig flex every time the case lid closes. The harness is usually the cheapest part of an audio system and the most annoying one to replace, because by the time it fails, everything is built on top of it.
The Connectors: XLR, TRS, TS, RCA, SpeakON, Euroblock
These six families cover almost every audio harness we build. Knowing which one your product uses is half the spec.
| Connector | Typical Use | Termination | Notes from the floor |
|---|---|---|---|
| XLR 3-pin (male/female) | Balanced mic and line level, AES/EBU digital | Solder, or IDC on some field-termination series | The locking latch is the reason it survives touring. Pin 1 shield, pin 2 hot, pin 3 cold. |
| TRS 6.35 mm | Balanced line, stereo headphones, insert points | Solder | The sleeve-to-shield joint carries all the mechanical load. This is where cheap cables break first. |
| TS 6.35 mm | Unbalanced instrument (guitar, keys) | Solder | Coaxial construction. Capacitance per meter actually shapes the tone on long runs. |
| RCA / Cinch | Consumer unbalanced line, S/PDIF | Solder or crimp | 75 ohm matters for S/PDIF versions. Hi-fi OEM customers are picky about plating here. |
| SpeakON NL2 / NL4 / NL8 | Speaker power, high current | Screw clamp or solder | NL4 gives you bi-amp on one connector. Touring standard for a reason: nobody ever "partially" plugs one in. |
| Euroblock / Phoenix 3.5 / 5.08 mm | Installed AV, DSP amps, 12V trigger lines | Screw clamp, wire directly | Conference room standard. Label the wires, or the installer will hate you forever. |
We build with Neutrik, Switchcraft, Amphenol, and licensed equivalents. For OEM harnesses inside products, we also wire plenty of JST and Molex interconnects, which we covered in detail in our internal wiring section below.
Cable Types and When Each One Matters
Picking cable by catalog number is fine if you know the family. Here are the families, with the numbers that matter.
| Cable type | Construction | Conductors | Typical use | What to watch |
|---|---|---|---|---|
| Standard mic cable | 2 twisted conductors + braid shield | 22-24 AWG | Stage and studio balanced runs | Braid coverage below 90% means RF gets in. Ask for the spec. |
| Star-quad | 4 conductors in star quad + braid | 22-24 AWG | Mic lines near lighting dimmers, RF-heavy stages | Better noise rejection, higher capacitance. Do not use it for long line-level runs without checking. |
| Instrument cable | Coax, single center conductor + shield | Center 20-24 AWG | Guitar and keys to amp or DI | Low capacitance preserves treble. Also the most abused cable in the building. |
| Speaker cable | Twisted pair, no shield | 18-10 AWG | Amp to cabinet | Gauge is a function of length and impedance. See the table below. |
| AES/EBU digital | 110 ohm twisted pair, foil + braid | 24-26 AWG | Digital console interconnect | Impedance, not wire size, is the spec. Random "mic cable" works until it does not. |
| Multi-core / snake | 8-24 pairs + optional returns in one jacket | 22-24 AWG | Stage boxes, installed runs | Jacket compound decides how it behaves on a reel in winter. |
On brands: we build with Mogami, Canare, Belden, Klotz, and good house-brand equivalents. A word of honesty about the exotic end of the market: once you are at a reputable pro cable, the audible differences between brands are small, and the termination quality matters more than the spool it came from. We have measured "boutique" cable that tested worse than commodity Mogami. Spend the money on connectors and workmanship instead.
Balanced vs Unbalanced: The Length Rule
Unbalanced signal (TS, RCA) references ground. Any noise voltage that appears on the shield rides straight into your signal. Balanced signal (XLR, TRS) carries the signal on two conductors out of phase and subtracts them at the receiver, so noise common to both wires cancels out.
In practice this gives you a simple rule we give every customer:
Under about 2 meters, unbalanced is fine. Cost wins. Inside a product, RCA and TS are perfectly rational choices.
Between 2 and 5 meters, unbalanced starts picking up whatever is nearby. It works in a quiet domestic hi-fi and fails next to a switching supply in a rack.
Over 5 meters, go balanced. Not because it sounds "better" in some mystical way, but because common-mode rejection is the only thing that survives a long run in a noisy room.
One more thing people miss: a balanced connector does not guarantee a balanced circuit. We get drawings for XLR harnesses where pin 3 is tied to pin 1 at one end, because the source is unbalanced and someone "adapted" it. Fine, if intentional. We always ask, because an accidental pin 3-to-pin 1 bridge turns your noise rejection off without telling you.
Shielding and Grounding, Done Properly
Shield construction is where cheap cable gives itself away. The options:
Bare or tinned copper braid is the workhorse. Coverage runs 85-95%. It solders well, flexes for years, and handles most stage RF. Tinned braid is slightly stiffer but resists oxidation and solders more consistently, which is why we default to it for anything leaving the factory.
Aluminum foil with drain wire gives 100% coverage and costs little, but it fatigues and cracks if flexed. Right answer inside a rack or a product chassis. Wrong answer for a mic cable that lives on the floor.
Braid plus foil is the belt-and-suspenders option for RF-hostile environments, and standard on good AES/EBU cable. If your product ships next to a wireless mic receiver or a switch-mode amp, this is worth the small premium.
Spiral/serve shield wraps instead of weaving, so it survives extreme flex. Common on instrument cable. Coverage around 90%, and it opens a gap if you bend it sharply backwards. Trade-offs, always.
Then there is the shield termination itself, which brings us back to the story at the top of this article. Our rules are simple: cut the pigtail to the absolute minimum, solder or crimp it at the connector, and never let the drain wire wander near the signal pins. It sounds obvious. Walk through a trade show and count the cut-open cables that break all three rules.
The other grounding question is the lift. In installed systems, ground loops between building power circuits can put 50/60 Hz hum onto a shield that is grounded at both ends. The standard fix is to lift the shield at one end (usually the source). We ask every installed-AV customer the same thing: do you want pin 1 lifted at the female end, the male end, or not at all? Building it "somewhere" based on a guess is how you ship 300 harnesses that hum in one building and are fine in the next one.
Speaker Wire Gauge: The Table Everyone Asks For
Speaker cable has no shield and no connector voodoo. It is about resistance: thin wire, long run, and the amp's damping factor collapses, with wooly bass as the audible symptom. Here are the numbers we quote for copper conductor, 8 ohm loads:
| AWG | Max length, 8 Ω load | Max length, 4 Ω load | Typical application |
|---|---|---|---|
| 18 | up to ~2 m | not recommended | Short internal runs, small monitors |
| 16 | up to ~5 m | up to ~2.5 m | Desktop speakers, short monitor runs |
| 14 | up to ~10 m | up to ~5 m | Standard installed runs |
| 12 | up to ~18 m | up to ~9 m | Long installed runs, subwoofers |
| 10 | 25 m+ | up to ~15 m | Stadium runs, high-power touring |
70/100V distributed lines change the math: current is low, so 16-18 AWG often carries a whole ceiling-speaker chain. Tell us which system you are building before we quote.
And a pet peeve, since we are being honest with each other: "oxygen-free copper" in the marketing sense is close to meaningless. All modern cable is drawn in an oxygen-controlled process. What actually matters is conductor purity and strand count, and both are on the datasheet. Charge accordingly, and be suspicious of anyone selling wire by the adjective.
Inside the Box: Amplifier and Mixer Internal Wiring
Everything above is about external cable assemblies. Inside amplifiers, powered speakers, and mixers, the harnesses look completely different, and this is where our wire harness factory background earns its keep.
A powered speaker typically contains several distinct harnesses: an AC input set, a power supply to amp-board DC harness, signal runs from the input panel, and DSP/control wiring. The failure modes are different too. We have seen AC and signal bundles zip-tied together in parallel for 40 centimeters, which turned a perfectly good speaker into a 100 Hz tone generator at idle.
Our internal-wiring rules:
Route AC and low-level signal at right angles where they must cross, and separate them everywhere else. Physical distance is the cheapest noise filter that exists.
Use 105°C rated wire (UL1015 or equivalent) near amplifier heatsinks. The 80°C stuff that saves two cents per meter will embrittle in exactly the place nobody can reach.
Board-to-board interconnects use JST PH/XH and Molex KK/Micro-Fit, with the same dedicated-applicator crimping discipline we described in our JST and Molex harness guide.
Toroid transformer leads get glass-sleeved or PTFE, not just PVC, because the transformer body runs hot enough to make PVC plasticizers migrate.
Every serviceable connection gets labeled. Your repair department will either thank you or bill you.
For mixer channel strips and amp channels, we build repeat-identical harnesses measured against a golden sample, so channel 16 behaves exactly like channel 1. On a 32-channel console, that is the difference between a clean build and three weeks of chasing crosstalk.

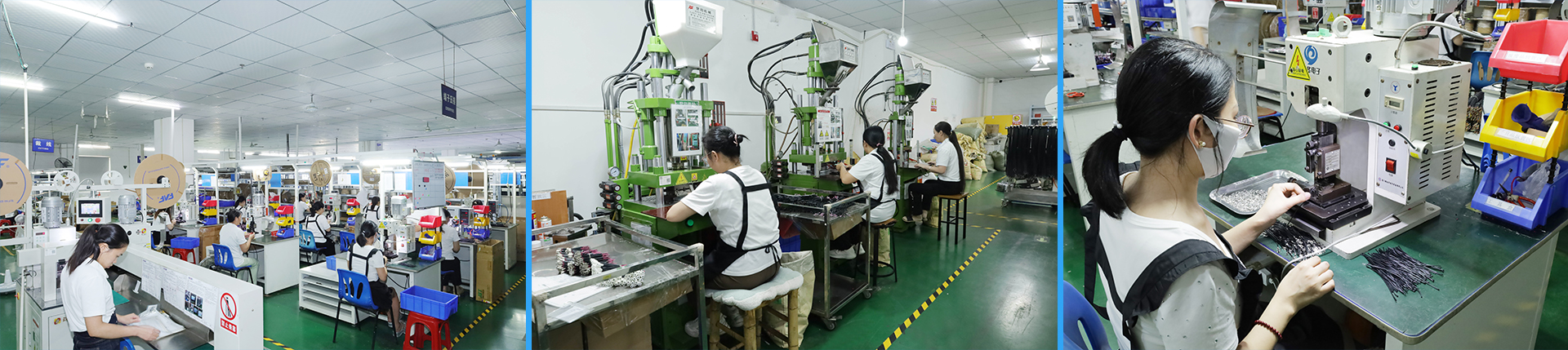

How We Build an Audio Harness
Unlike our data-centric harnesses, most audio connectors terminate in solder, not crimp. That changes where the skill lives: in the operator's hands and in the process around them.
Step 1: DFM review (free, 1-2 days). We check connector pinout against your drawing, cable family against run length, shield construction against the environment, and termination style against the connector. A shocking number of RFQs arrive with a mic cable spec for a 40-meter run, or a foil shield on a hand-held mic. We flag these before quoting.
Step 2: Sample build (3-7 days). We hand-build samples with the exact material set. You get photos of the solder joints and, on request, cross-sections. On XLR and TRS, the joints tell the whole story: shiny, wetted fillets, minimal insulation burn-back, shield anchored at the strain relief, not at the pin.
Step 3: Approval and setup. Once you sign the sample, we freeze the bill of materials, set up cut lengths, pre-strip programs, and tinning. Solder stations get temperature-verified with calibration checks before each lot.
Step 4: Production. Operators are certified to IPC J-STD-001 for soldering. Mid-size audio orders (500-5,000 pieces) typically run 10-15 days. During production we pull solder joints for inspection every 2 hours, same rhythm as our crimp-height checks on connector harnesses.
Step 5: Test and pack. Every assembly gets 100% electrical test before packing. Color-coded boots or numbered heatshrink where you want them. Coil, tie, polybag, and label per your SKU system.
QC and Testing
This is the test matrix behind every audio harness we ship:
| Test | Method | Pass criteria |
|---|---|---|
| Continuity and pin mapping | Automated tester, 100% of pieces | Correct pin-to-pin map, no opens, no shorts |
| Shield continuity | Milliohm meter, 100% | Shield resistance within spec per length; every solder joint verified |
| Hi-pot | 500 VAC conductor-to-shield, 100% on AC-adjacent harnesses | No breakdown, leakage within limit |
| Cable capacitance | LCR meter, sampled per cable lot | Within datasheet pF/m for the cable family |
| Pull test on terminations | Digital force gauge, sampled | XLR boot retention and conductor pull-out within spec |
| Flex test | Sample flexed over mandrel, per flex-class harness | No opens/intermittents after cycle count |
| Microphonics check | Tapping test on shielded analog runs, sampled | No audible artifact on test rig |
| Visual | 100%, under magnification on solder joints | Clean fillets, no cold joints, no flux residue, boot seated |
The microphonics tap test gets a skeptical look from customers sometimes. It is not mystical. You tap the cable at fixed points on a rig with a fixed gain setting, and listen (or measure) for noise events. Cheap fillers and stiff dielectrics announce themselves immediately. It catches cable lots that pass every DC test and would still have shipped noisy.
Where These Harnesses End Up
Based on what actually ships from our floor:
Powered speakers and tour racks: SpeakON looms, internal amp harnesses, NL4 breakout sets. Built for repeated pack-out: the flex-test numbers matter more than anything else.
Installed AV, conference rooms, houses of worship: Euroblock to XLR plate assemblies, ceiling speaker runs on 70V lines, DSP rack looms, all with proper shield-lift strategy and labeling the installer can read from a ladder.
Mixing consoles and channel strips: repeat harnesses with JST and Molex board connectors, consistent crimp heights channel to channel.
Karaoke and entertainment kiosks: this is adjacent to our self-service terminal work: mic inputs, speaker outputs, and control wiring inside the same cabinet. Same noise rules, tighter space.
Hi-fi and home theater OEM: RCA harnesses, internal hook-up wire, and speaker looms where the customer cares about jacket finish and plating. Charming customer segment, wonderful tolerances.
Instrument and pedalboard builders: TS patch sets, color-coded, short runs, tight quantity windows. Small orders, repeat business, and honest fun.
Failures We See From Other Suppliers
These are the returns and tear-downs that cross our bench, roughly in order of frequency:
Cold solder joints. The champion, the undefeated. An assembly works when it leaves the bench and fails when the truck hits the first pothole. Lead-free solder runs hotter and is less forgiving of a lazy iron, so this failure got more common, not less, after RoHS. Our defense is certified operators plus magnified inspection plus the 100% continuity test, which catches opens but only flex-testing catches the intermittents.
Shield pigtails doing antenna duty. Covered already. Still the most common cause of "there is hum in my system" tear-downs.
Strain relief by heatshrink alone. A boot that is not mechanically captured in the connector transfers every yank straight into the solder joint. Eventually you get the cold-joint failure above, except you caused it mechanically.
Wrong cable family for the run. Unbalanced over 10 meters. Foil shield on a hand-held mic. Non-110-ohm cable on AES/EBU runs that then re-clock errors on the digital console. All three show up as "ghost problems" that survive multiple component swaps before someone looks at the cable.
Polarity reversals. A balanced pair with hot and cold swapped at one end. The cable passes continuity, the system has a weird phase issue, and the installer loses an afternoon. Our golden-sample comparison test exists specifically for this.
A Spec Template for Your RFQ
Copy this into your next request and you will save us both a round of emails:
| Parameter | What to specify | Example |
|---|---|---|
| Connector end A | Series, gender, contact plating, straight or right-angle | Neutrik NC3MX, nickel shell, gold pin |
| Connector end B | Same | Neutrik NC3FX |
| Cable | Family, conductor AWG, shield type, brand if required | 2-cond + 95% braid, 24 AWG, Mogami W2549 or equiv. |
| Length | Length and reference points (boot to boot) | 3 m ± 3 cm |
| Pin mapping | Pin-to-pin table | 1-1, 2-2, 3-3 |
| Shield treatment | Both ends terminated, or lifted (which end) | Terminated both ends |
| Marking | Boot colors, heatshrink numbering, jacket print | Black boots, printed channel numbers |
| Environment | Static or flexing, indoor/outdoor, temperature | Touring flex, indoor, 0-40°C |
| Standards | RoHS, REACH, UL where relevant | RoHS, REACH |
| Quantity | Initial order + annual volume | 1,000 pcs, ~20,000/yr |
No drawing? Send us the old sample. We will map it, identify the cable and connectors, and send you a drawing to confirm before building anything. Half our audio work started as "here is the one that failed, make more of it, but working."
Why Work With Us

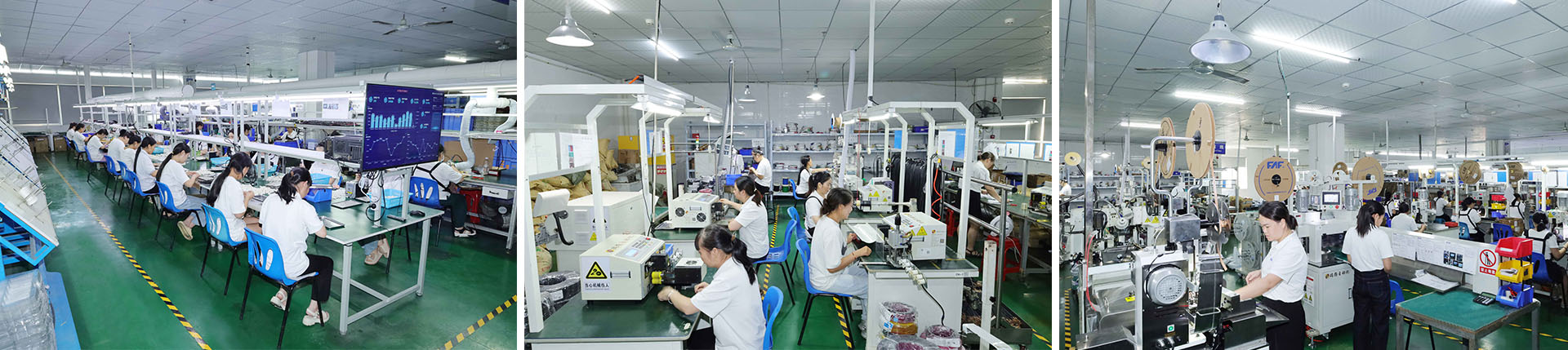

We are a wire harness factory in Xiamen, China. For audio customers, the things that matter most about us:
Solder is our day job. IPC J-STD-001 certified operators, temperature-verified stations, magnified inspection. Audio connectors live or die at the iron, so that is where we invest.
We ask the noise questions. Shield treatment, run length, cable family, what the harness sits next to. If your spec has a problem, the DFM stage is where you hear about it, free, in 48 hours.
100% electrical test, every piece. Continuity, pin map, shield check. Harnesses that touch AC also get hi-pot. QC records available on request.
Crimp and solder under one roof. The XLR loom and the Molex board connector inside the same speaker come from the same factory, with the same traceability.
Real quantities. 200-piece boutique runs and 100,000-piece OEM runs both welcome. The pedalboard builder and the console manufacturer get the same solder standard.
Send a drawing, a sample, or just a description of the noise you are trying to get rid of. You will get a DFM review, a quote, and a sample lead time inside 48 hours.
Request Your Free DFM Review
Email your drawing, sample photos, or BOM to our engineering team. We will confirm the connector and cable family, flag shielding or length risks, and send a quotation with sample lead time within 48 hours.
Email: [sales5@xmkehan.com] & Click to adjust link
Frequently Asked Questions
Q1: What is your minimum order quantity for custom audio cable assemblies?
500 pieces for standard builds. Prototype runs of 20-50 pieces are available at sample pricing, and sample costs are credited against your first production order.
Q2: Can you build with Neutrik connectors and Mogami or Canare cable?
Yes, and with Switchcraft, Amphenol, Belden, Klotz, and licensed equivalents. We can also quote house-brand alternates if you want a cost-down version of the same drawing.
Q3: Do you solder or crimp XLR and TRS terminations?
Solder, by IPC J-STD-001 certified operators, with magnified joint inspection. Screw-clamp SpeakON and field-termination XLR variants get torque-verified clamping instead.
Q4: How do you test for hum and microphonics?
Every piece gets 100% continuity, pin-map, and shield testing. Shielded analog runs get a sampled tapping test for microphonics, and cable lots get capacitance checks. For hum specifically, correct shield termination and your lift strategy are controlled at DFM, not discovered after installation.
Q5: Can you do short color-coded patch sets in small quantities?
Yes. Color-booted patch sets in mixed lengths are regular work for us. Small runs carry slightly different pricing, but the quality standard is the same as our largest OEM order.
Q6: What is the typical lead time?
Samples in 3-7 days. Production orders of 500-5,000 pieces typically ship in 10-15 days after sample approval, subject to connector stock. Brand-name connector lead times are confirmed in writing before you commit.
Q7: Do you support RoHS and REACH compliance?
Yes. Our lead-free soldering process is RoHS-compliant, and we supply REACH declarations for cable and connector materials on request.
